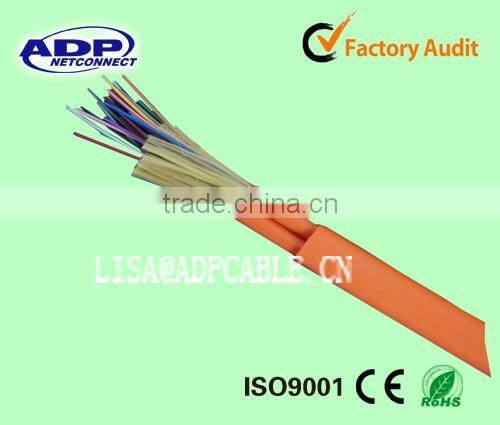

Indoor SM/MM Multi-core Fan-out fiber optic cable
Features
Easy splicing, suitable for large capacity data transmission
Flame-ratardant (or combustion-discontunued) property
Outer jacket's color varies according to the types of optic fibers(indoor use) black color is recommended for outdoor use, options for other colors available upon request
We can meet different needs of the market an individual client
Descriptions

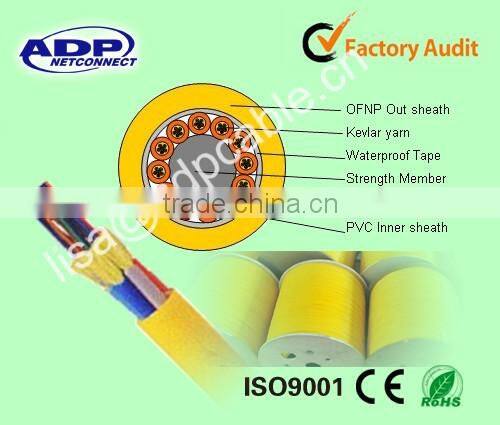

Composed of 4-6 units of multi-core buffered cable SZ stranded around the central strength, each unit with its independent strength member and sheath, it is an SZ intertwisted cable without bingding cord
Applicatons
For indoor cabling, as Fan-out cable
Can be used as lead cable into buildings
Technical Characteristics
|
12-24core fan-out cable |
36-144core fan-out cable |
||||||
Fiber count |
16 |
24 |
36 |
48 |
72 |
96 |
144 |
|
OD of the cable(MM) |
13.0+-0.5 |
15.0+-0.5 |
19.0+-0.8 |
20.0+-0.8 |
21.0+-0.8 |
25.5+-0.8 |
28.2+-0.8 |
|
Normal weight(KG/KM) |
180 |
180 |
210 |
250 |
300 |
460 |
680 |
|
Temperature range |
-20-+70 |
-20-+60 |
||||||
Central strength member |
FRP with padding |
|||||||
Jacket material |
LSZH or PVC |
|||||||
Max.tensile strength(N) |
S-term |
1000 |
1300 |
|||||
L-term |
300 |
400 |
||||||
Min.bending radius(MM) |
Dynamic |
20D |
||||||
static |
10D |
|||||||
Max.crush resistance(N/100mm2) |
1000 |
|||||||
