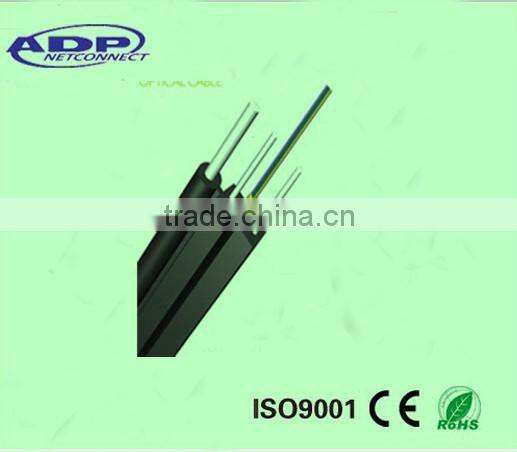

Self-supporting FTTH Fiber Optical Cable GJYXCH g657A Fiber
Product's Specification

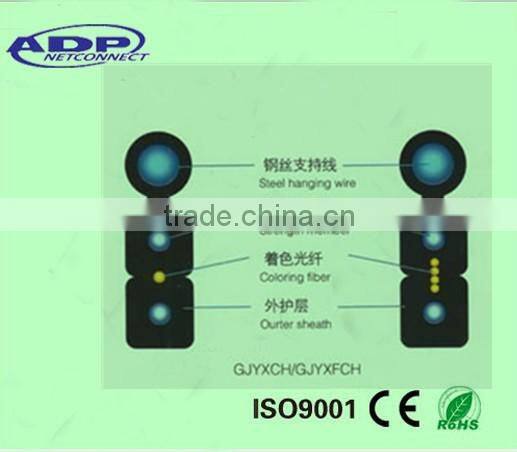

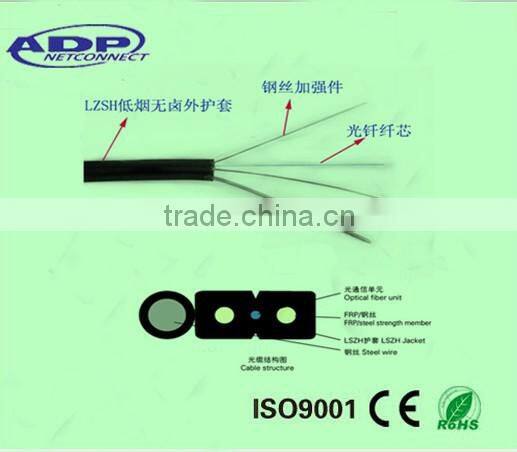

The optical fiber unit is positioned in the center, two parallel steel wires or FRP strength members are
placed at the two sides. Another steel wire as the self-supporting strength member is also applied.
Then, the cable is completed with a black color LSZH sheath.
Features
1. Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
3. Single steel wire as the traditional strength member ensures good performance of tensile strength
4. Simple structure, light weight and high practicability
5. Novel flute design, easily strip and splice,simple installation and maintenance
6. Low smoke, zero halogen and flame retardant sheath
Technical Parameters
|
Fiber count |
Cable diameter (mm) |
Cable weight (kg/km) |
Tensile strength Long/Short term (N) |
Crush resistance Long/Short term (N) |
Bending Radius Dynamic/Static (mm) |
1 |
(2.0±0.2)×(5.0±0.2) |
21 |
30/60 |
300/1000 |
15/30 |
2 |
(2.0±0.2)×(5.0±0.2) |
21 |
30/60 |
300/1000 |
15/30 |
4 |
(2.0±0.2)×(5.6±0.2) |
21.5 |
30/60 |
300/1000 |
15/30 |
Packing
1000m or 3000m per wooden drum
Application
1. Used in indoor cabling, and end userd directly cabling
2. Used as access building cable
3. Suitable for aerial dropping
Company Info
Founded in 2002, Shenzhen ADP Cables Co., Ltd. is located in Shenzhen City, a coastal city with convenient transportation. The company specializes in production of 1mm2 to 500mm2 power cables, two cores to 288 cores of communication optical fiber cables, 1 pair to 200 pairs of communication cables, security cables, coaxial cables, other accessories, etc.
Its factory has a floor area of about 200,000 square meters. The company has constantly introduced international advanced production equipment and testing equipment to strictly control the links of its production. The company has a total staff member of more than 500 including top technical R & D talent and sale elites. The company wins high praise and wide approval from the industry by virtue of its excellent and high-quality products and service.
Its products have passed the certifications of UL, ISO9001 Quality Management System, BV, CE, ROHS, CCC, VDE, etc. The company was successively awarded “Shenzhen Top 10 E-business Members” by Alibaba in 2010 and 2011. Its export business has constantly been expanded. Its products are sold in more than 100 countries and areas. The company realizes an annual output value of USD 0.2 billion. During development, the company has established long-term cooperative relations with new and old customers around the world in the principle of “Credit, Equality, Reciprocity, Quality First, Service Supremacy”. Welcome to contact us.
