Aerial/Duct Fiber Optical Cable GYTA with Metallic Strengthen Member 2-288 Cores
Product's Specification
1) The type of this fiber with single-mode G652 G655 G657 or multimode with a loose tube which is made of high modulus plastic .there is used a water-resistant filling compound for filling.

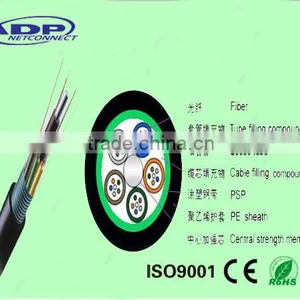

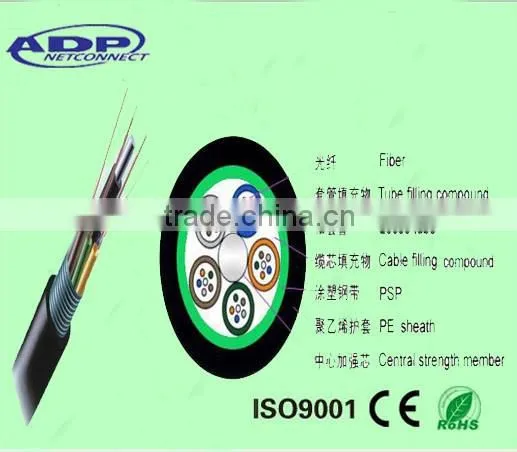

2) the center used a steel wire locates as a metallic strength member .for some cable ,a steel wire sometimes sheathed with polyethylene .the tubes ( and filers ) are stranded around the strength member into a compact and circular cable core.double sides chromium for APL with PE as sheath .
3) by single or double wire for lashing installation ,also with PE for outer sheath.
APPLICATION
♦ Adopted to Outdoor distribution fiber optic cable system .
♦ Suitable for aerial .duct pipeline, direct burried installation lashing menthod
♦ Long distance and local area network(LAN) communication system.
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| (+20°C) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
Fiber color code:
Note: A:The color of fiber in loose tube is arranged from NO.1 color successively.
B:Other color indentifications available on request
| Cable Type | Fiber Count | Tubes | Cable Diameter | Cable Weight | Tensile Strength | Crush Resistance | Bending Radius |
| Long/Short Term | Long/Short Term | Static /Dynamic | |||||
| mm | kg/km | N | N/100mm | mm | |||
| GYXTW-2~12 | 2~12 | 1 | 9 | 100 | 1000/3000 | 1000/3000 | 10D/20D |
| GYXTW-14 ~24 | 14~24 | 1 | 9 | 120 | 1000/3000 | 1000/3000 | 10D/20D |
Packing
3000m/wooden drum or as customer's requirement
Application
♦ Adopted to Outdoor distribution fiber optic cable system .
♦ Suitable for aerial .duct pipeline, direct burried installation lashing menthod
♦ Long distance and local area network(LAN) communication system.
