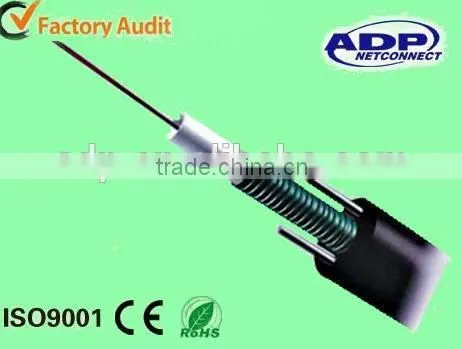

Help CenterFactory Price Outdoor GYXTW Aerial Central Tube Fiber Optical Cable
Related Products
-
Parallel Double Steel Wire Strengthened Fiber Optical Cable GYXTW G562D FiberUS$ 0.12 - 0.12MOQ: 3000 Meters -
Non-Metallic Strengthen Member Fiber Optical Cable GYFTY With Aramid YarnUS$ 0.20 - 0.20MOQ: 3000 Meters
-
GYXTW53 Single Mode G652 Fiber Optic Armored Double Sheath CableUS$ 0.4 - 2MOQ: 5000 Meters
-
GYXTC8S Aerial Fiber Optic Cable 2-24 Core SM/MM FiberUS$ 0.35 - 8MOQ: 1000 Meters
-
Hot Promoting 2 to 24 Cores Optical Power Composite CableUS$ 80 - 1,000MOQ: 3 Kilometers
PRODUCT DISCRIPTION
1)The type of this fiber with single-mode G652 G655 G657 ,multi mode: 50/125;62.5/125 ect.
accurate fiber excess length ensures good mechanical and tempearture performance.
2) Two parellel steel wires ensure tensile strength. Small diameter, light weight and installation frendliness with long delivery length.
3) PSP enhances the cable crush-resistance, impact-resistance and moisture-proof.
STANDARD
Govo GYXS/GYXTW cable complies with Standard YD/T 789-2003.
APPLICATION
1) Adopted to Outdoor Aerial, Duct installation
2) Adopted to trunk power transmission system.
3) Access network and local network in high electromagnetic interfering places.
TECHINCAL PARAMETER
| Cable Model | G.652D |
| Fiber Count | 4 |
| Cable Diameter | 6.8-11.2mm |
| Material | PE |
| Color | Black |
| Bending Radius | 10D/20D |
| Weight | 80-130kg/km |
| Crush Tensile | 800/3000N |
| Application | Aerial;Burial |
| Cable fiber Type | G.652 | G.655 | 50/125 µm | 62.5/125 µm | |
| Attenuation(+20℃) | @ 850 nm | ≤ 3.0 dB/km | ≤ 3.3 dB/km | ||
| @1300nm | ≤ 1.0 dB/km | ≤ 1.0 dB/km | |||
| @1310nm | ≤ 0.36 dB/km | ≤ 0.40 dB/km | |||
| @1550nm | ≤ 0.22 dB/km | ≤ 0.23 dB/km | |||
| Bandwidth | @ 850 nm | ≥ 500MHz·km | ≥ 200MHz·km | ||
| @1300nm | ≥ 500MHz·km | ≥ 500MHz·km | |||
| Numerical Aperture | 0.200 ± 0.015 | 0.275 ± 0.015 | |||
| Cable Cut-off Wavelength | ≤ 1260 nm | ≤ 1450 nm | |||

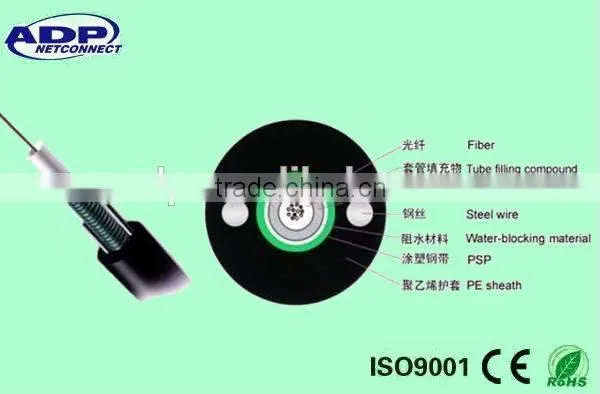

STRUCTURAL DRAWING

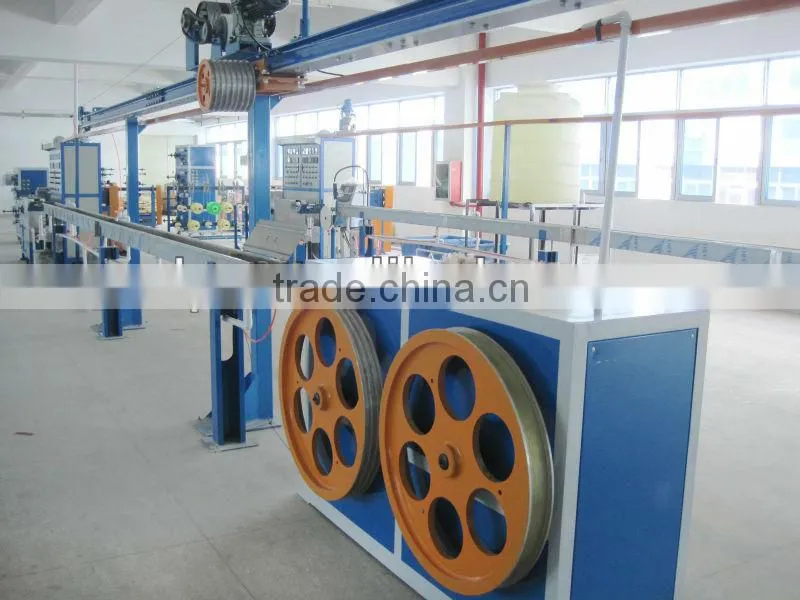

Factory information
Shenzhen ADP Cables Co.,Ltd founded in 2002, mainly produce fiber optical cable(SM/MM) and lan cable(cat5e/cat6/cat7) in city Shenzhen,China. We invested in purchasing a series of mechanical equipment. Fast production cycles and high productivity. Strict production and factory has inspection and active post -sales service. So our goods has been exported more than 100 countries. Good quality with reasonable price is customers' wish, and it's also our standard. Hope to cooperate with you for long time.
