Non-Metallic Strengthen Member Fiber Optical Cable GYFTY with Aramid Yarn
Product's Specification

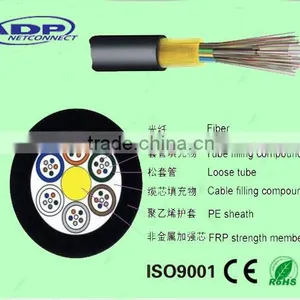

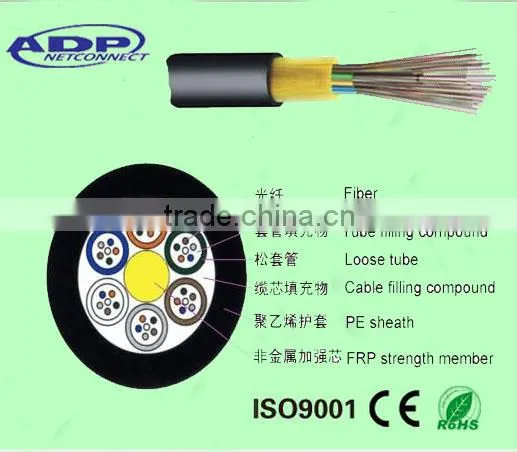

The fiber are positioned in a central loose tube and Fillers are around the metallic central strength member.After passed SZ into a compact,the APL is longitudinal covering,inter hustle PE sheath,that the PSP is longitudinal covering,the cable is completed with PE outer sheath .In loose tube,gap of the core is filled with the water-resistant filling compound.
Features of Product
Good mechanical and temperature performance.
Good crush resistance,waterblocking and flexibility.
Geometical Characteristics
Number of Optical Cable Core |
Diameter of Optical Cable(mm) |
Weight of Optical Cable(kg/km) |
Allowable Tension Long-term/short-term(N) |
Allowable Press Force Long-term/short-term |
2-30 |
13.5 |
210 |
1000/3000 |
1000/3000 |
32-36 |
14.6 |
230 |
1200/3000 |
1000/3000 |
38-72 |
16.2 |
290 |
1500/4000 |
1000/3000 |
74-96 |
17.9 |
325 |
1500/4000 |
1000/3000 |
Packing
3000meters per wooden drum or as customized
Application
These metal free cable are suitable for installation on overhead routes. And due to the non metallic construction, they make be installed in areas where the high electric fields may occurred e. G. In the vicinlty of high lightning density and high voltage lines.
