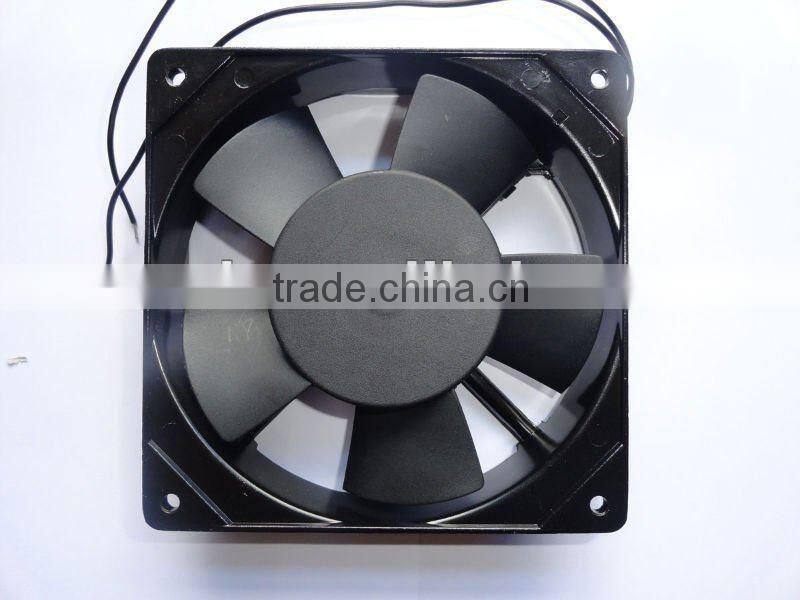

Double Voltage 110v to 230v Cooling Fan
US$ 2.4 - 4
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Free Standing
Blade Material:
Plastic
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Electric Current Type
AC
Mounting
Free Standing
Blade Material
Plastic
Place of Origin
Guangdong, China
Brand Name
SON TIMES
Model Number
ST12025BL
Voltage
110 TO 230V
Power
15.4/17.6W
Air Volume
80CFM
Speed
2500RPM
Certification
CE
Specifications
1.110 to 230v cooling fan2.plastic impeller ,alloy frame
3.sleeve ,ball bearing
4.size: 120*120*25mm
5.large airflow
| Frame size(mm) | 120*120*25mm |
| Bearing type | ball bearing |
| Rated voltage | 115V/50,60HZ, 230V/50,60HZ |
| Rated speed | 2600-3000RPM |
| Max air flow | 85-105CFM |
| Max pressure | 6.3-7.5mmH2O |
| Max noise | 44-47db |
| Functions | by impedance,FG |
| Safety approvals | CE ROHS |
| Dielectric Strength | 5mA max at 1500VAC for 1 min between lead wire and frame |
| Insulation resistance | 100M ohm between lead wire and frame(DC 500V) |
| Life expectancy(ball bearing) | 70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Life expectancy(hypro bearing) | >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Operation temperature | -10~80 degree C(+14~176 degree F) |
| Storge temperature | -40~75 degree C(-40~167 degree F) |
| Protection | Motor protection and polarity protection |
| Lead wire | UL1571 AWG18,20; UL1007 AWG18,22; UL1061 AWG22 |
| fan blade material | Black PBT (UL94V-0) glass filled |
| frame material | Aluminium alloy |
| Weight | 550g |
double voltage 110 to 230v cooling fan
