ac Cooling Fan 12012025mm

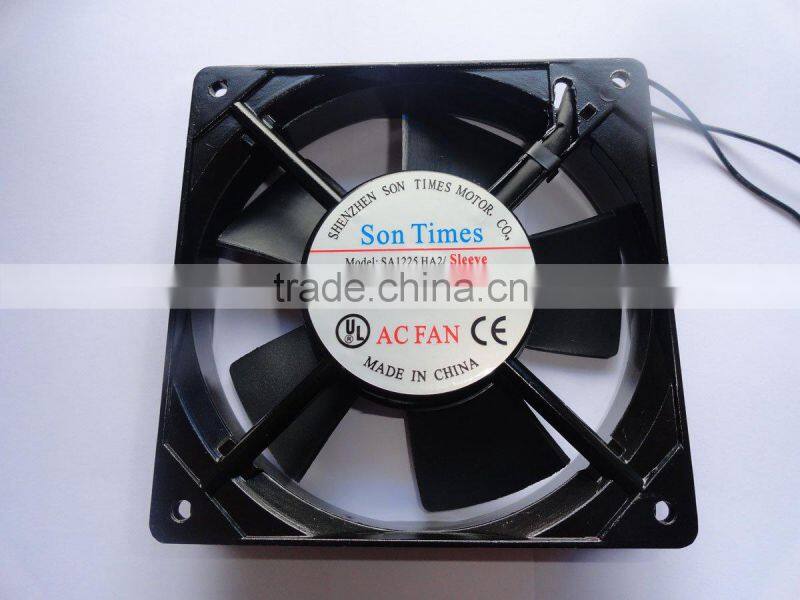

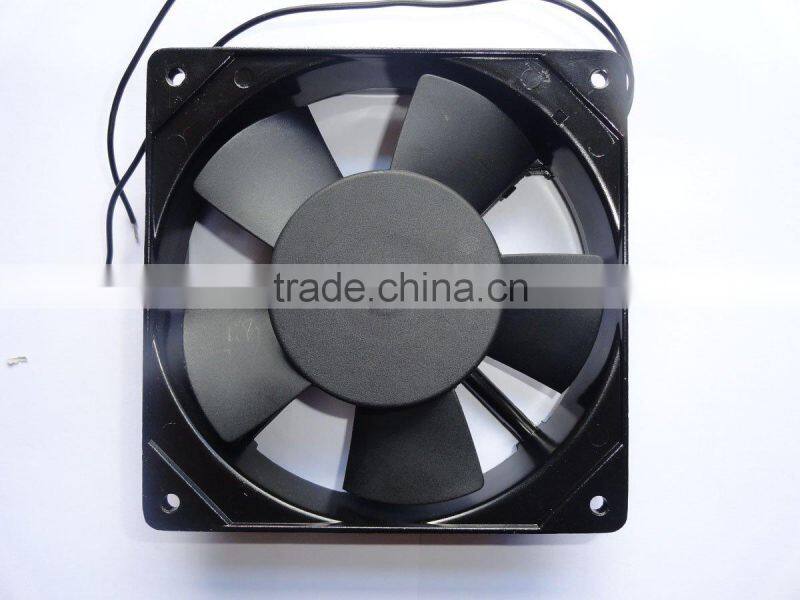

Name: ac Cooling Fan 120*120*25mm
Brand: SON TIMES
SKU: 100829607
Availability: InStock

US$ 1.8 - 2.5 MOQ: 500 Pieces

Key Specifications

Electric Current Type:

Mounting:

Free Standing

Blade Material:

Plastic

Shenzhen Son Times Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Electric Current Type AC

Mounting Free Standing

Blade Material Plastic

Place of Origin Guangdong, China

Brand Name SON TIMES

Model Number ST12025HB

Voltage 110V/220V/380V

Power 13.2-19W

Air Volume 60-85CFM

Speed 2000-2400RPM

Certification CE

Specifications

1. ac cooling fan
2.size:120*120*25MM
3..ball bearing /sleeve
4..rated voltage"120v 240v
petitive price,good qualit

110v 240v ac cooling fan

ac cooling fan 120*120*25mm

Frame size(mm)	12012025mm
Bearing type	ball bearing
Rated voltage	115V/50,60HZ, 230V/50,60HZ
Rated speed	2600-3000RPM
Max air flow	85-105CFM
Max pressure	6.3-7.5mmH2O
Max noise	44-47db
Functions	by impedance,FG
Safety approvals	CE ROHS
Dielectric Strength	5mA max at 1500VAC for 1 min between lead wire and frame
Insulation resistance	100M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing)	70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Life expectancy(hypro bearing)	>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Operation temperature	-10~80 degree C(+14~176 degree F)
Storge temperature	-40~75 degree C(-40~167 degree F)
Protection	Motor protection and polarity protection
Lead wire	UL1571 AWG18,20; UL1007 AWG18,22; UL1061 AWG22
fan blade material	Black PBT (UL94V-0) glass filled
frame material	Aluminium alloy
Weight	550g
