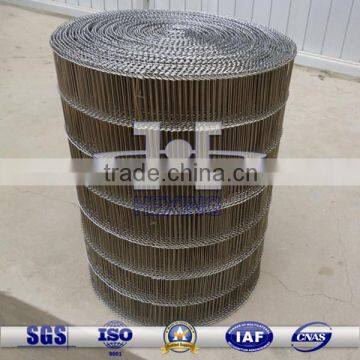

Stainless Steel 304 Conveyor Belt Mesh
US$ 12 - 65
/ Meter
30 Meters(Min. Order)
- Tianjin port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Material | Stainless Steel Wire | |
| Type | Weave Wire Mesh | Application | Other, conveyor | |
| Weave Style | Plain Weave | Wire Diameter | 1mm | |
| Technique | Woven | Model Number | HXCB | |
| Brand Name | Hexing |
Product Description
Specifications
Conveyor Belt Mesh1. Heat resistant
2. Environment protection
3. Food production system
4. Working speed 0.15-0.50m/min
Stainless Steel 304 Conveyor Belt Mesh

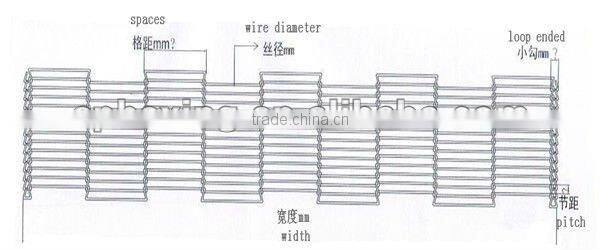

Conveyor belt mesh specification description examples:
| Pitch(mm) | 7.26mm | 7.26mm | 6.00mm | 7.26mm | 12.7mm | 7.26mm | 7.26mm |
| Wire diameter(mm) | 1.57mm | 1.57mm | 1.27mm | 1.57mm | 2.34mm | 1.57mm | 1.27mm |
| No. of spaces | 3 | 5 | 7 | 7 | 7 | 7 | 9 |
| Overal width(mm) | 203mm | 356mm | 400mm | 457mm | 500mm | 560mm | 600mm |
Conveyor belt mesh application:
cooling systems; drying systems; food production systems; washing systems; sorting systems etc.
Characteristics of conveyor belt mesh:
1. The steel wire conveyor belt mesh width: 150-5500mm.
2. With wire belt speed work: 0.15-0.50m/min.
3. The edge of the form: Curved edge, upsetting the first, in the form of welding.
4. Material: Stainless steel wire ( 304, 304 L, 302, 201, 316, 316 L, 2520, 2080), stainless iron wire, middle and low carbon steel wire, galvanized wire ( hot galvanized, electroplating), chromium iron wire, nickel chromium wire, aluminum wire, polyester wire etc.
