Specifications
Stainless Steel Conveyor BeltWire diameter: 0.9-3.2 mm
Pitch: 4-23mm
Belt width:10 cm-3-meter
Aaperture ratio: 70%-85%

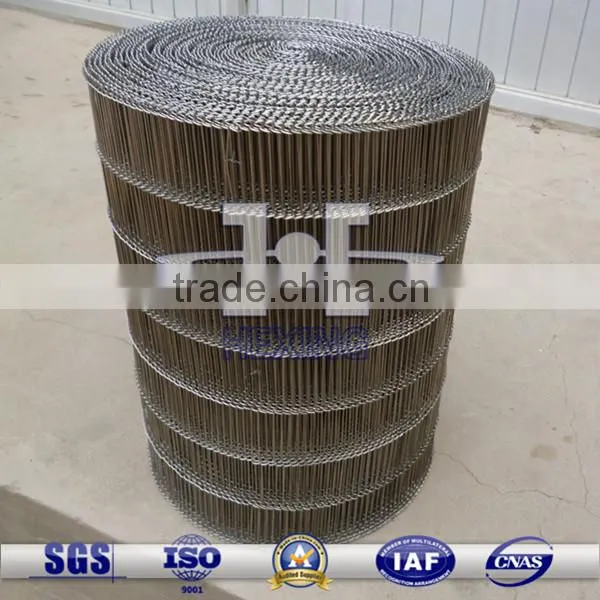

304 Stainless Steel Flat Flex Wire Conveyor Belt

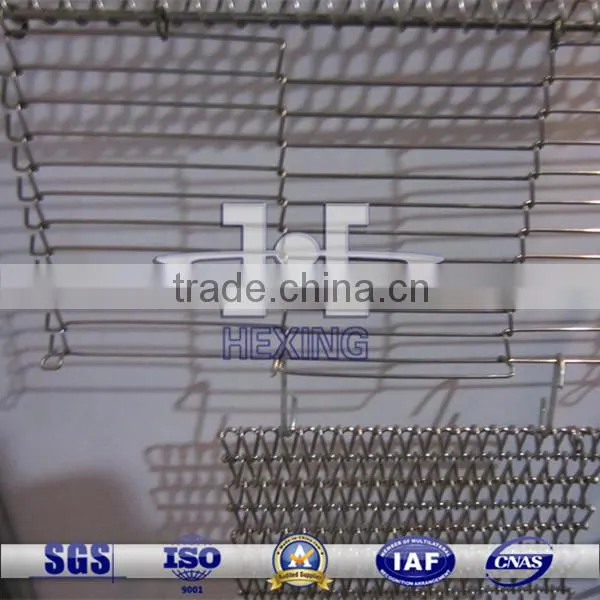

Flat-flex wire conveyor belt is designed to be C-shaped curved end loops, the pattern has advantages of not tangling during shipment, storage, or installation. Flat-flex wire conveyor belts have a light weight, single layer structure and positively driven by sprockets.
Aperture ratio: 70% - 86%.
Material: Flat-flex wire conveyor belts are made of stainless steel wire 304 316.
Wire diameter: varies from 0.9 mm to 3.2 mm.
Pitch: from 4 mm until 23mm.
Belt width: 200mm-3500mm.
We can make conveyor belt as per clients' requirement. Conveyor belts are finished with single loop commonly or double looped edges for special occasions.
Application: Flat-flex wire conveyor belt can be made for straight conveyors or for curved conveyors, frequently used in cooling, frying, baking, drying, heating, decorating, battering and packing machines for light products, especially used in food industry such as, snacks, fish, pizzas, bread, pastry, candy, potato, biscuit, chocolate, nuts, fruit etc.
Specification Description:
Width (mm) |
Pitch (mm) |
Wire Diam (mm) |
No. of Spaces |
Unit weight (Kg/LM) |
203 |
7.26 |
1.57 |
3 |
0.65 |
356 |
7.26 |
1.57 |
5 |
1.05 |
356 |
12.7 |
1.83 |
5 |
0.85 |
381 |
7.26 |
1.27 |
7 |
0.75 |
381 |
12.7 |
1.83 |
5 |
0.90 |
400 |
6.00 |
1.27 |
7 |
0.95 |
400 |
6.01 |
1.27 |
7 |
0.85 |
400 |
6.4 |
1.27 |
5 |
0.76 |
400 |
6.40 |
1.40 |
5 |
1.00 |
