Specifications
flat wire belt1.wire dia:2mm rod pitch:5mm
2.spiral pitch:50mm
3.width:50cm
4.stainless steel

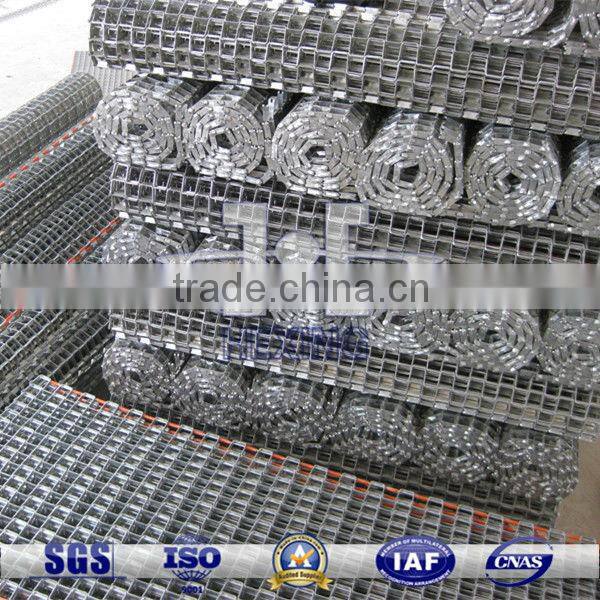

Stainless Steel Flat Wire Belt
Our Flat Wire conveyor belts track better because they are made with no gaps between the pickets. There is no product tippage, vibration, sprocket jumping or adjustment shimmy. With the PacTite design, it’s impossible for parallelogramming to occur.
Our standard-duty conveyor belts are made with 11-gauge rods, while our heavy-duty mesh belts are made with 6-gauge rods. They are available also in modified 1/2″ x 1/2″, true 1/2″ x 1/2″ and can duty styles. Mat picket style conveyor belts are available for certain applications that require it.
Clinched edges form a clean, smooth selvage which prevents the wire belt from necking down and hanging up on the side of the conveyor. Since the metal belt edge has not been metallurgically altered through the welding process, it is stronger and lasts longer.
Features:Improved tracking; Better product stability; Clinched edges
Materials: Flat Wire belting is offered in a variety of materials including wear-resistant stainless steel (WRSS), which hardens with use. WRSS delivers superior strength and longevity - perfect for abrasive applications like rock traps, cement bagging lines, and in insulation plants or when product release from the conveyor belting is critical. Also available in high-carbon steel, galvanized, and T316 SS.
Key industries:Building Products, Carpet Manufacturing, Food Processing
Key applications:Baking, Curing, Freezing, General Product Transfers, Ovens, Washing
Flat Wire Specifications
Mesh |
Flat Strip |
Rod Size |
Approx. Weight |
Max. Working |
|||||
In |
Mm |
Ga. |
Mm |
Lbs/SqFt |
Kgs/SqM |
Lbs/Ft of Width |
Kgs/M of Width |
||
SD 1” x 1” |
3/8 x .050 |
9.65 x 1.27 |
11 |
3 |
1.89 |
9.23 |
470 |
699 |
|
SD 1/2” x 1” |
3/8 x .050 |
9.65 x 1.27 |
11 |
3 |
2.18 |
10.64 |
670 |
997 |
|
HD 1” x 1” |
1/2 x .062 |
12.7 x 1.59 |
6 |
5 |
3.65 |
17.82 |
1,350 |
2,008 |
|
HD 1/2” x 1” |
1/2 x .062 |
12.7 x 1.59 |
6 |
5 |
4.03 |
19.68 |
1,700 |
2,529 |
|
MD 1/2” x 1/2” |
3/8 x .050 |
9.65 x 1.27 |
11 |
3 |
2.40 |
11.72 |
670 |
997 |
|
TR 1/2” x 1/2” |
3/8 x .050 |
9.65 x 1.27 |
11 |
3 |
3.25 |
15.87 |
750 |
1,116 |
|
CD 1” X 1” |
3/8 x .050 |
9.65 x 1.27 |
12 |
2.67 |
1.48 |
7.22 |
360 |
537 |
|
CD 1/2” X 1” |
3/8 x .050 |
9.65 x 1.27 |
12 |
2.67 |
1.53 |
7.47 |
500 |
746 |
|
