Specifications
Conveyor Belt1. Wire diameter: 0.9mm -3.2 mm
2. Pitch:4mm-23mm
3. Belt width:10cm-300cm
4. Aperture ratio 70% - 85%

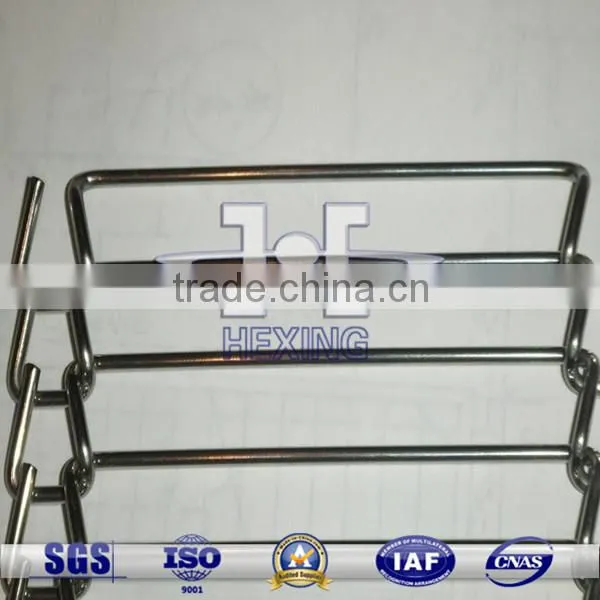

Stainless Steel Flat-flex Wire Conveyor Belt
Flat-flex wire conveyor belt is designed to be C-shaped curved end loops, the pattern has advantages of not tangling during shipment, storage, or installation. Flat-flex wire conveyor belts have a light weight, single layer structure and positively driven by sprockets.
Aaperture ratio: 70% - 85%
Material: Flat-flex wire conveyor belts are made of stainless steel wire 304 316
Wire diameter: varies from 0.9 mm to 3.2 mm.
Pitch: from 4 mm until 23mm
Belt width: from 10 cm until 3 metres.
We can make conveyor belt as per clients' requirement. Conveyor belts are finished with single loop commonly or double looped edges for special occasions.
Application: Flat-flex wire conveyor belt can be made for straight conveyors or for curved conveyors, frequently used in cooling, frying, baking, draying, heating, decorating, battering and packing machines for light products, especially usd in food industry such as, sancks, fish, pizzas, bread, pastry, candy, potato, biscuit, chocolate, nuts, fruit etc.
Flat-flex wire conveyor belt specification description as below:
| Pitch(mm) | 7.26mm | 7.26mm | 6.00mm | 7.26mm | 12.7mm | 7.26mm | 7.26mm |
| Wire diameter(mm) | 1.57mm | 1.57mm | 1.27mm | 1.57mm | 2.34mm | 1.57mm | 1.27mm |
| No. of spaces | 3 | 5 | 7 | 7 | 7 | 7 | 9 |
| Overal width(mm) | 203mm | 356mm | 400mm | 457mm | 500mm | 560mm | 600mm |
