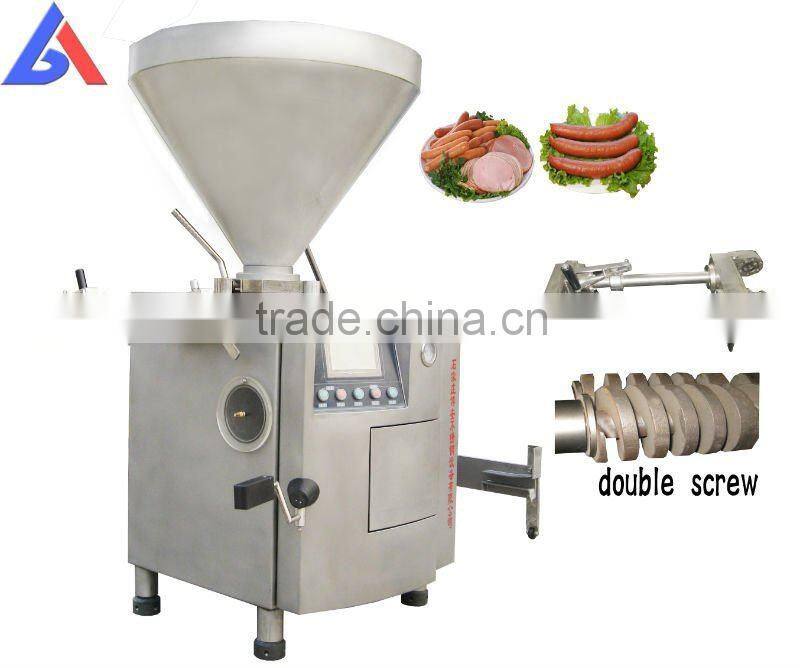

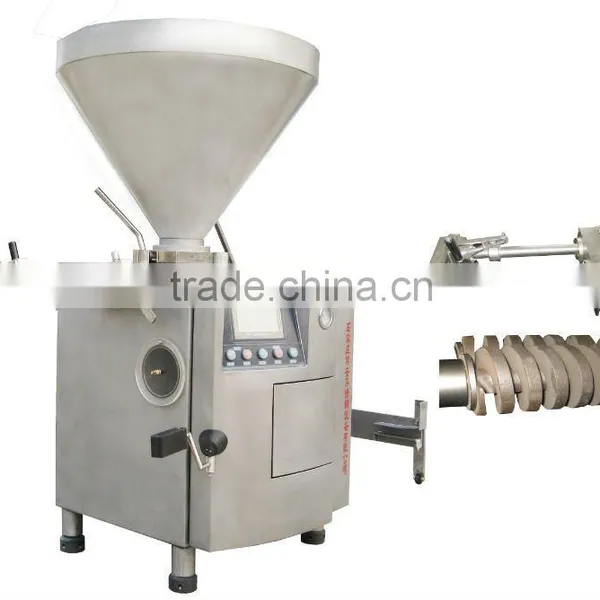

Sausage Filling Machine With Twin Screw

Specifications

                                      machine with twin screw

This machine adopts the double screw pump filling servo motor drive, HMI, PLC control, automatic vacuum quantitative filling machine. Materials under vacuum to fill. Can be a single filling can also be continuous quantitative filling, and with equipped with automatic kink, suitable for natural casings, collagen casings, fibrous casings casings were kink. Filling speed, the speed of kink, kink number of laps, points the weight can be adjusted. High efficiency, easy operation. This machine adopts high quality stainless steel materials, key components of a special treatment, durability, control section using imported components, the appearance of the advanced treatment process, the elegant, compact structure, easy operation, convenient maintenance, with the security device is the ideal equipment for meat processing industry.

Technical parameters:
1. Production capacity: 6000 Kg / H (continuous)
2 , speed: 100g, 260 / min.
3,Error: ± 4g
4, Rated Voltage: ~ 380 V 50 Hz
5 ,power: 6 KW
6 ,Work Center Height: 1000 mm
7 , volume: 200 L
8,The filling tube Standard: φ15 mm, φ25 mm, φ33 mm
9. Dimensions: 1050 × 900 × 1860 mm
10 Weight: 1260 kg
