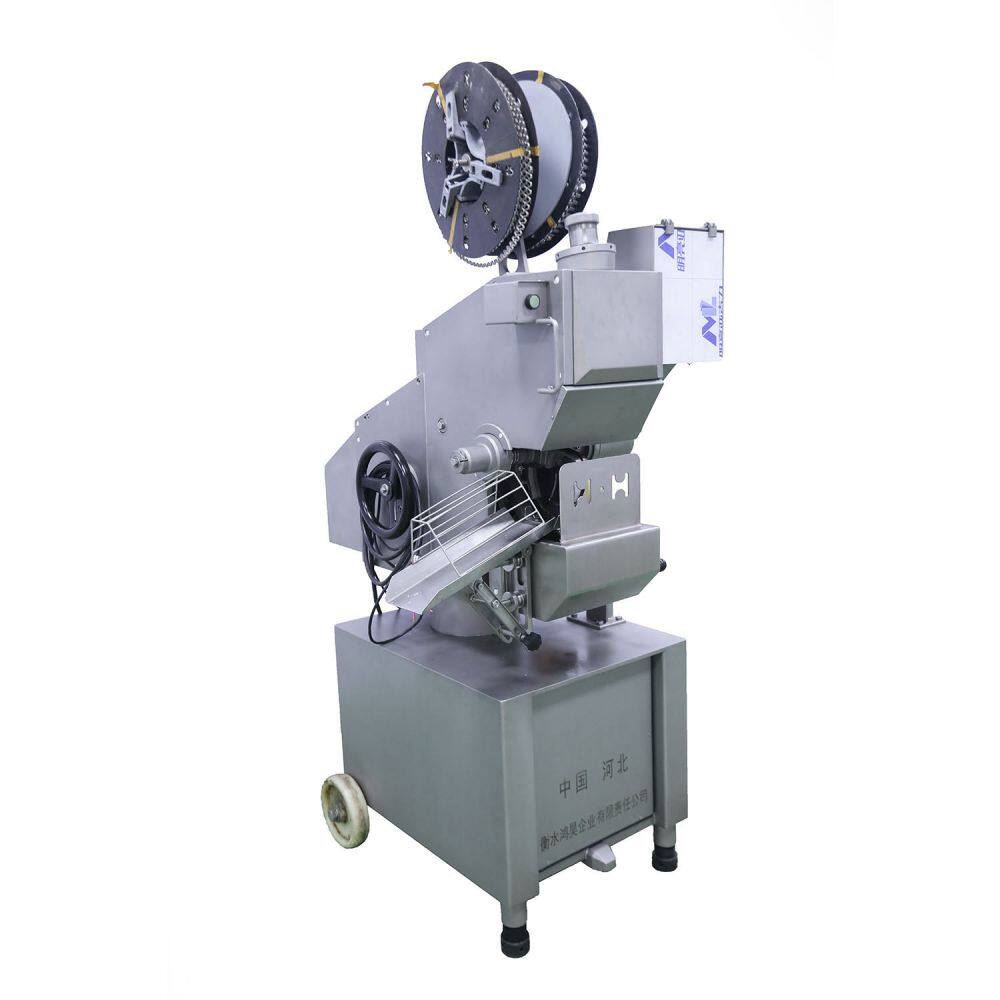

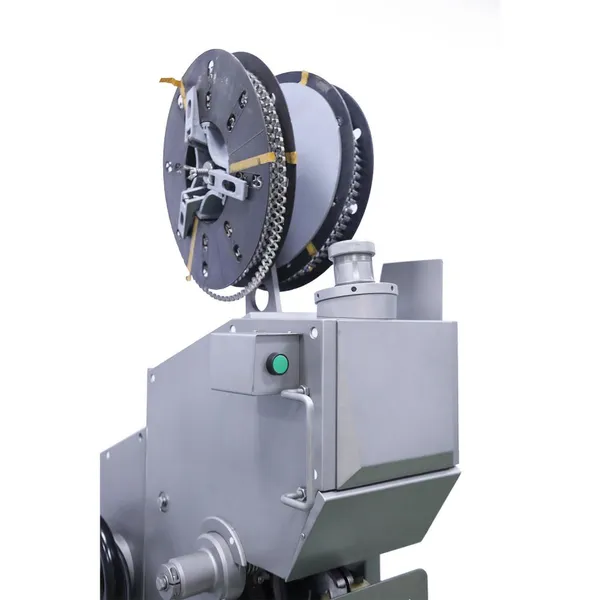

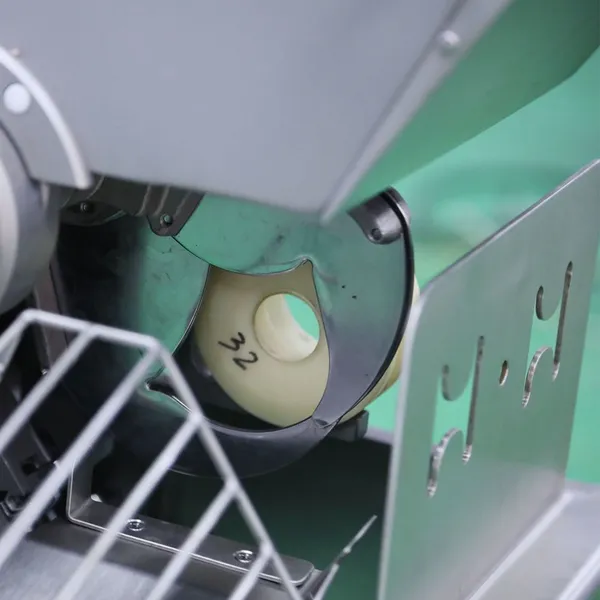

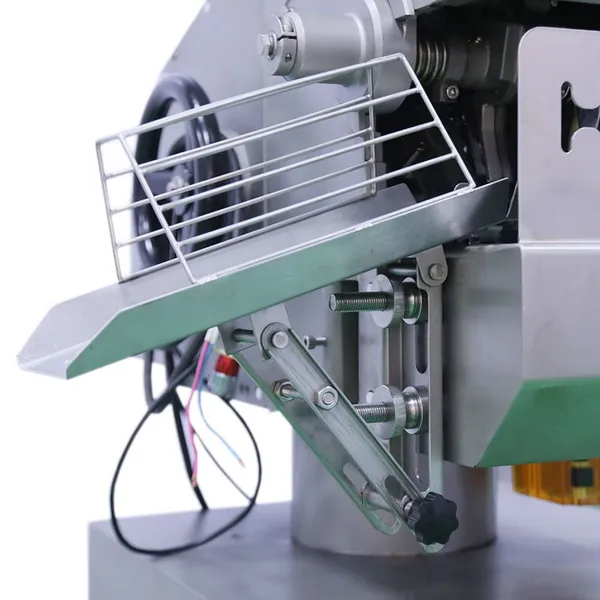

Help CenterGreat Wall Pneumatic Sausage Clipping Machine
Related Products
Commercial Automatic Meat Sausage Double Clipper Clipping Machine
GCF Electric Tying Machine For great-wall shaped Clips is the newest patent product in our company,is the original of
our country. Patent number:ZL200720100678.2. Computer aid design and produce, reasonable in structure,easy to clean.
Unusual driving mode: The machine adopts successive driving mechanism, avoids that the parts grind too early in the
cycle of"start in high speed and stop immediately".At the same time ,the machine adopts intermittent driving mechanism.
Advanced controlling system: The machine is a new type equipment with automatic technology,computer technology, communicate technology, Its core is the PLC,servomotor as drive.
Convenient lubricating system:The machine can oil with hand pump that gain the good lubrication result.
Unusual manufacture technology: The key parts produced by numerically controlled machine,so it ensures the precision of manufacturing and filling.Special surface treatment, highly wearproof.
Low maintain cost: The maintain circle of the key parts change to over 2 year from 5-6 month,so the costomer can save
most money.
Main technical target |
|
Efficiency: |
40-120time/min in reality |
The range of sealing: |
a.successive working style: casing flat width 40-70 mm b.intermittent working style:casing flat width 60-130mm |
Adopt clip: |
the range of 15 and 18 |
The length of stretch: |
36-100mm |
Air pressure: |
0.5-0.6MPa |
Voltage: |
220V 50Hz |
Total power: |
3.0KW |
The height of sealing: |
980-1050mm |
Overall dimension: |
1200*900*1900mm |
Weight: |
560kg |
