1,sausage machineSmall production line equipment

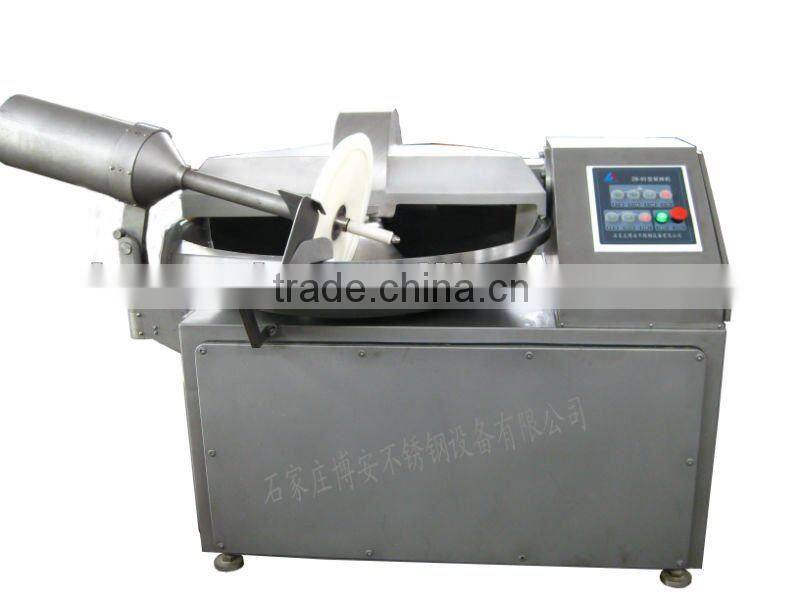

ZB-80 high-speed silent cutter
It adopts high quality stainless steel as the materials.The toolmaking selects the imported material to become after the special craft processing.It also can select imported toolmaking.The maximun volume of it is 3000 revolution of/min.The bearing is large scale.4 forms of sealer improve the incorruptibility of the bearing well.
Cuts the pot is castable stainless steel material,and has against overflows the pot along,prevents to infiltrate the material,the flash.It is easy to wash.It can work automatically.The main part is processed by the centre of processing,that is make sure the precision of processing.It is good looking after the special craft processing.It has a good design,and it has locomotor banlance .This machine noise is small,the osciliation is weaken.
1. Production ability 30-40KG/time
2. Volume:80L
3. Power:17kW
4. The amount of chopper:6
5. The rotational speed of chopper (rpm)750/1500/3000
6. Bowl speed : 11/17(pm)
7. Unloader speed :88rpm
8. Weight:1000kg
9.Dimension : 1870×1240×1200mm

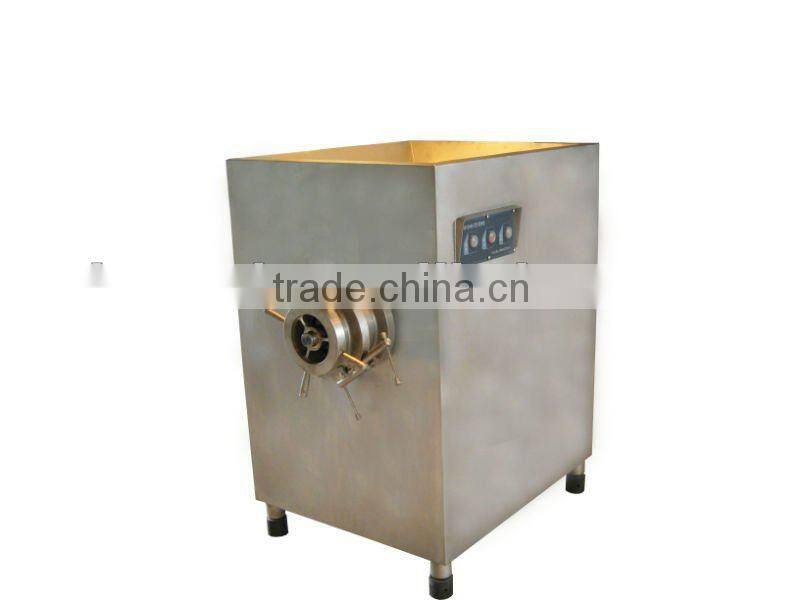

Meat grinder JRD120
It high quality stainless as the materials . it is rational designed and easy to clean ,it completely is accord with the HACCP standard .the pitch of dragon axis of this machine is long and the entrance of the meat is bigger . the production ability is 1000kg/h. it also can the frozen meat into pieces .
1,capacity:1000/h
2,power;5.5kw
3,hole diamter:Ø3-Ø26mm
4,speed :260rpm
5,temperature:0~-18°C
5,dimension :960×550×1080 mm
6,weight:258kg

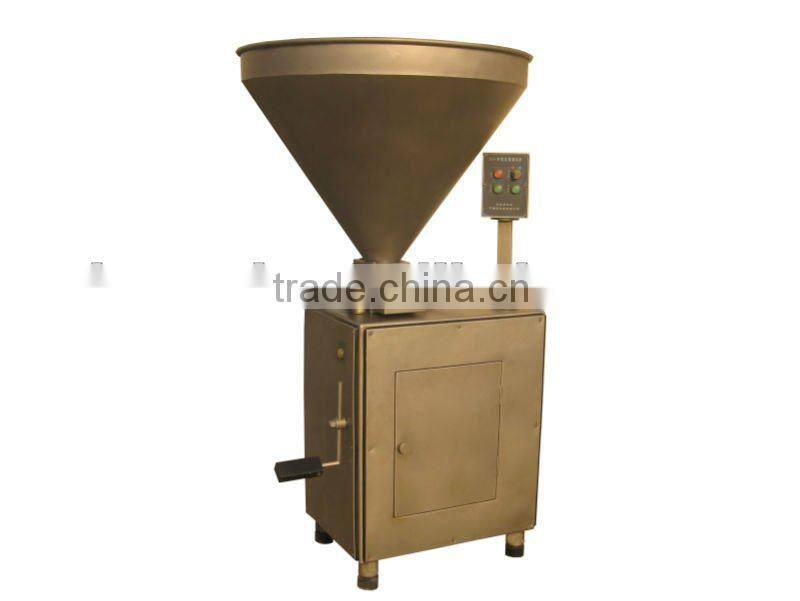

SGI-I Pneumatic Quantitative Filler
It adopts international advanced technology, using compressed air as the power and microcomputer controlled. It can be connect with any kinds of automatic clipping machines. It is high efficiency, waterproof, conveniently and simple to operate .In addition ,it also can install another pipe so that it can save the time for taking on the sausage casing. The main parts are made of Stainless steel so that it can resist corrosion, and long machine life
Technology parameter:
1. Speed: 80times/min 2. Quantitative scope: 50-1000g
3. Pressure: more than 0.7Mpa 4.power 220V 50HZ
5. Height of center 850mm 6. Funnel Volume: 57 L
7. pipes:φ15mm φ20mm φ25mm φ33mm
8.feature size: 640×640×1430(mm)
9. Weight: 130kg

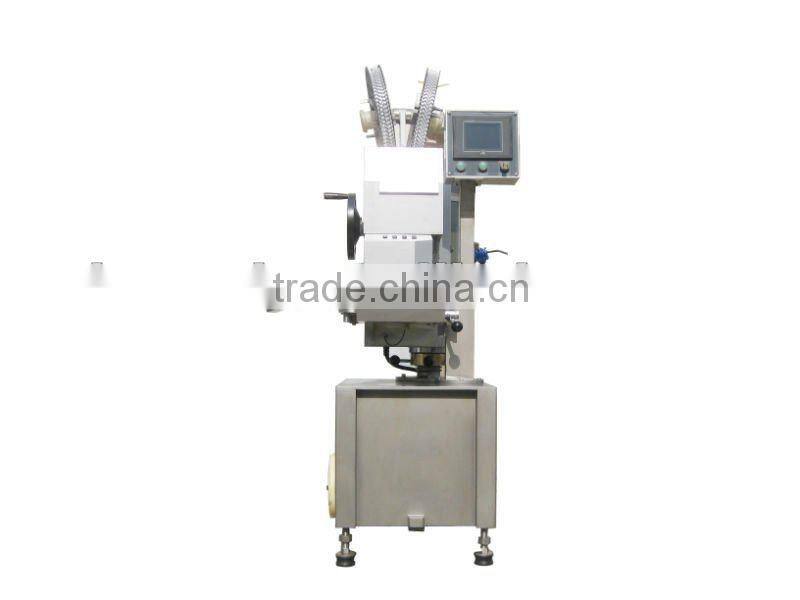

SZK-I pneumatic aluminum wire double-clipping machine
It adopts international advanced technology .using compressed air as the
Power and microcomputer controlled . designed by us and had got the state patent .the key parts materials are imported .it can be connected with any type quantified filler to realize automatic production .it wins reputation and confidence by excellent performance .delicate technology
.reliable quality and pretty appearance .it has adopted by many companies.
Model |
Power (kw) |
Clip model (mm) |
Casing(mm) |
Speed (times/min) |
Pressure (mpa ) |
Weight (kg) |
Dimension(mm) |
SZK-I |
220 |
2.1~2.9 |
35~120 |
50 |
0.7~1 |
290 |
630×630×1500 |
