8p8c24 Port 1U Rack Mountable CAT5e Patch Panel - Support T568 A&B Wiring & Easy Installation
- ningbo/shanghai
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SMART & OEM | |
| Model Number | SMT-2018H24C5E |
Product Description

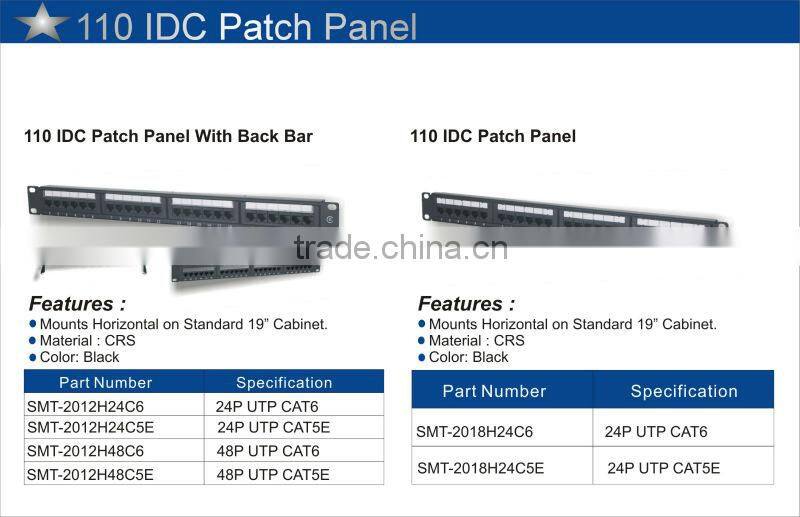

CAT5E 110 IDC RJ45 24 Port 1U Patch Panel
1. Auto-Machine Produce : stable quality & short leading time
2.100% QC test , 100% pass fluke test
3. OEM & ODM Services
4. Excellent R&D group support
5. Entity factory ,welcome to check the factory any time.
Application:
-Horizontal Distribution & Backbone Cabling
-4/16 Mbps Token Ring
-155 Mbps ATM
-100 Mbps TP-PMD
Technical Details:
Electrical/Mechanical Characteristics
| Current Rating: | 1.5 Amps |
| Insulation Resistance: | 500 Megaohm |
| DC Resistance: | 0.1 ohm MAX |
| Contact Resistance | 20 Mili-ohm |
| Voltage: | 150 VAC MAX |
| Insertion Life: | ≥ 1000 Mating Cycles |
| Plug Retention Force: | 89N |
| Temperature: | — 60~80 °C |
| Humidity | 10%-90% RH |
| IDC Accept: | 22-26 AWG Solid Wire |
| Wire Scheme: | T568A/B |
Material:
| Panel | Cold rolled steel(thickness1.5mm) |
| Back Bar | Cold rolled steel(thickness1.5mm) |
| Housing | ABS |
| Spring Wire | Phosphor Bronze With Gold-plated 3u -50 u |
| IDC Contact | Phosphor Bronze |
| IDC Holder | High Impact PC |
1. Q: How can I get your quotation?
A: Please provide us informations as follows:
1. Item Number & Quantity. .
2. Special Specification requirement.
3. Company Profile (Name, Tel, Fax, Address, and Webpage)
4. Any Other Relevant Details.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: Terms of payment?
A: We accept payment as follows:
1).100% TT in advance.
2). 30% T/T deposit, 70% balance before delivery.
4. Q: Can you do OEM?
A: Yes we can.
5. Q: What about delivery time?
A: 1) Samples: within 3 days.
2) Goods: 15-20days usually.
6. Q: Factory Inspection?
A: Any time .
7. Welcome to our factory for inspection.
