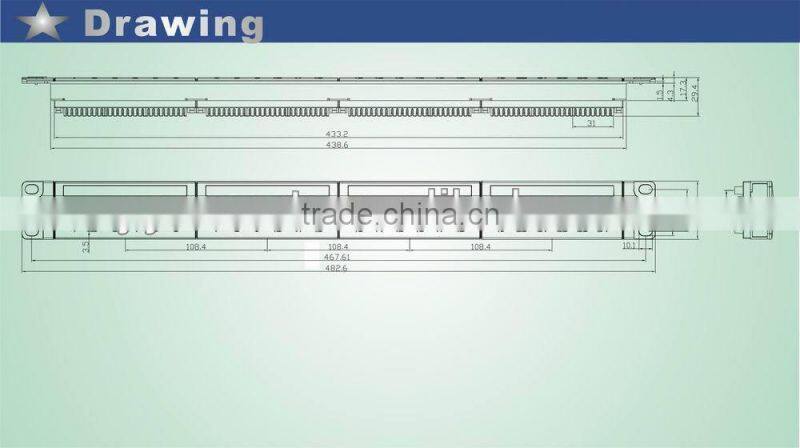

22-26 AWG Solid Wire 19 inch 24 port Patch Panel

1. Auto-Machine Produce : stable quality  & short leading time

2.100% QC test , 100% pass fluke test

3. OEM & ODM Services

4. Excellent R&D group support
5. Entity factory ,welcome to check the factory any time.

• Description:

     This PCB 1u patch panel comes complete with cable management, accessories and full installtion instruction.



  Application:

     -Horizontal Distribution & Backbone Cabling

     -4/16 Mbps Token Ring

     -155 Mbps ATM

     -100 Mbps TP-PMD



  Technical Details:

  Electrical/Mechanical Characteristics

  Current Rating:	1.5 Amps
  Insulation Resistance:	500 Megaohm
  DC Resistance:	0.1 ohm MAX
  Contact Resistance	20 Mili-ohm
  Voltage:	150 VAC MAX
  Insertion Life:	≥ 1000 Mating Cycles
  Plug Retention Force:	89N
  Temperature:	— 60~80 °C
  Humidity	10%-90% RH
  IDC Accept:	22-26 AWG Solid Wire
  Wire Scheme:	T568A/B



  Material:

  Panel	Cold rolled steel(thickness1.5mm)
  Back Bar	Cold rolled steel(thickness1.5mm)
  Housing	ABS
  Spring Wire	Phosphor Bronze With Gold-plated 3u -50 u
  IDC Contact	Phosphor Bronze
  IDC Holder	High Impact PC
