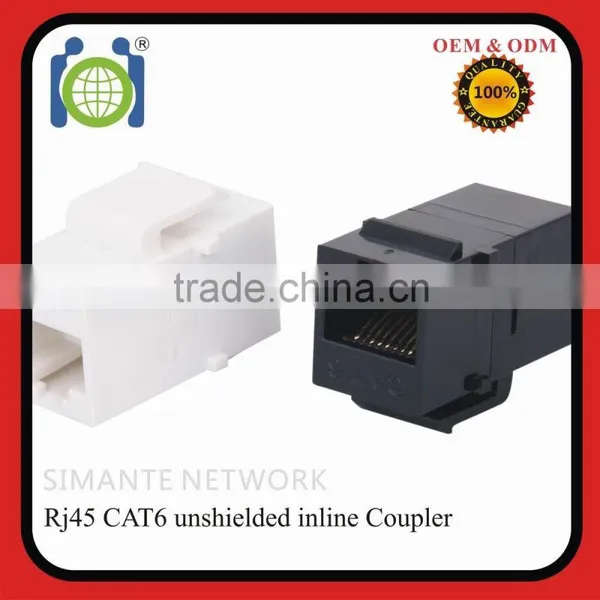

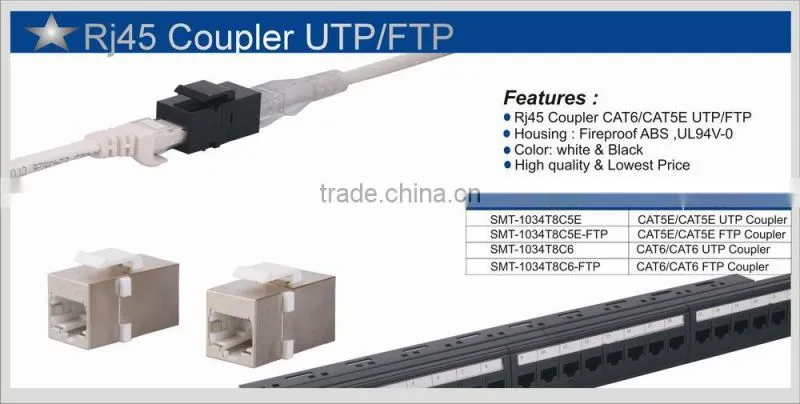

RJ45 CAT6 Inline Coupler
Factory Advantages:
- OEM & ODM Services
- 25 years warranty
- 100 % Tester, 100% Pass Fluke Test ( DTX-1800)
- Shortest Leading Time
Advantages:
1. With PCB reach the test standard TIA CAT6 Perm, Link
2. RJ45-RJ45 female design, easy to install, without any tool
| Item | Description |
| Product Name | RJ45 CAT6 Female Coupler With PCB |
| Packing | Inner-Plastic Bag; Middle-White Box;Outer -Standard Carton Box( inner with dry bag to protect from water) |
| Quality Control | Conducted by GB/T19001-2008/ISO9001:2008 Quality Management System |
| Service | Warm and quick response service provided by the professional Export Sales Team with many years' experience in handling exports to the US, Europe, Australia, other countries and regions. |
| Inspection | IQC, IPQC,FQC,QA |
| Technical Details: | |
| Current Rating: | 1.5 Amps |
| Insulation Resistance: | 500 Megaohm |
| DC Resistance: | 0.1 ohm MAX |
| Voltage: | 150 VAC MAX |
| Insertion Life: | ≥ 1000 Mating Cycles |
| Plug Retention Force: | 89N |
| Temperature: | —60°C to 80 °C |
| Test Standard | TIA CAT6 Perm Link/ ISO11801 PL2 Class Ea |
| Housing | High Impact PC ,UL94V-0 |
| Spring Wire | Phosphor Bronze With Gold-plated 6u -50 u |
| PCB | Glass Fiber ( Two Layers) |
| C E | |||
| Applicable Standard(s) | Test Report(s) Number | Issued By | Issued Date |
| EN 55022:2006+A1:2007 EN 55024:1998+A1:2001+A2:2003 EN61000-3-2:2006 EN61000-3-3:2008 |
GST100723028E | GST | July 28,2010 |
| Test Standard | |||
| EN60950-1:2006+A11:2009+A1:2010 | Information Technology Equipment including-Safety Part 1:General Equipment | ||
1. Q: How can I get your quotation?
A: Please provide us informations as follows:
1. Item Number & Quantity. .
2. Special Specification requirement.
3. Company Profile (Name, Tel, Fax, Address, and Webpage)
4. Any Other Relevant Details.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: Terms of payment?
A: We accept payment as follows:
1).100% TT in advance.
2). 30% T/T deposit, 70% balance before delivery.
4. Q: Can you do OEM?
A: Yes we can.
5. Q: What about delivery time?
A: 1) Samples: within 3 days.
2) Goods: 15-20days usually.
6. Q: Factory Inspection?
A: Any time .
7. Welcome to our factory for inspection.
SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
