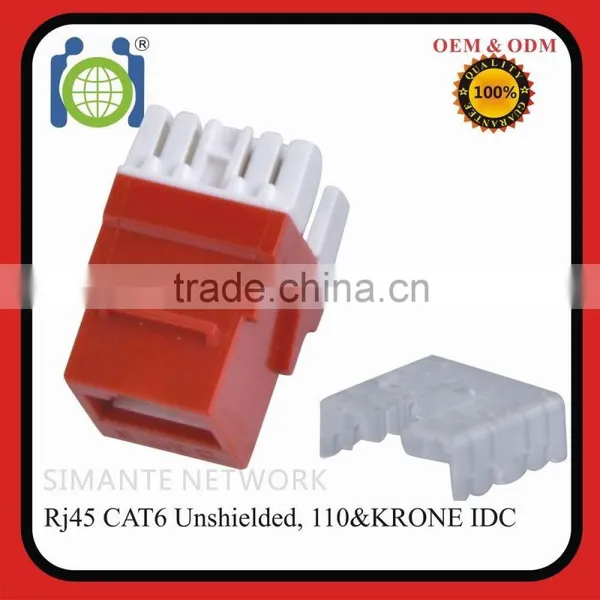

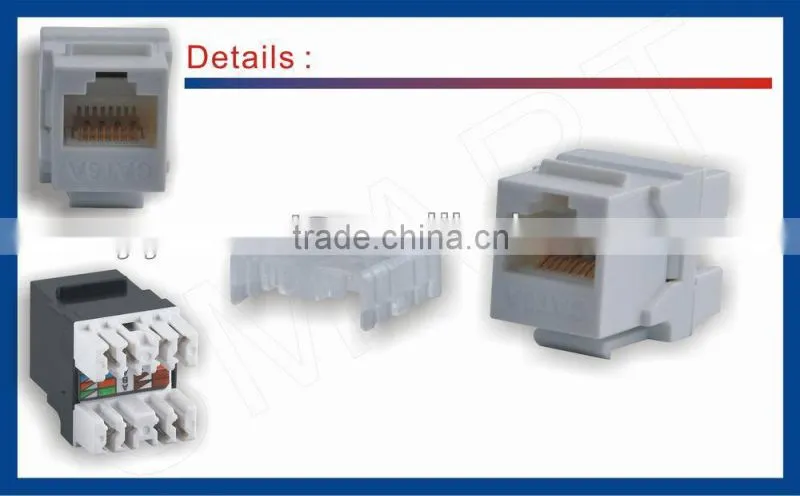

Help CenterCat6/Cat5e 110 Style 180 Degree Punch Down Keystone Jack RED TAA GSA
Related Products
-
Cat6 Punch Down Keystone Jack 90 DegreeUS$ 0.4 - 0.5MOQ: 2000 Pieces -
Heavy Duty Cat6 RJ45 Keystone Modular Jack for Patch PanelUS$ 0.15 - 0.7MOQ: 2000 Pieces
-
Cable Matters 10-Pack Cat5e RJ45 Punch-Down Keystone Jack in Blue and RedUS$ 0.1 - 0.5MOQ: 2000 Pieces
-
Custom Colors CAT5E 8P8C Unshielded Modular JackUS$ 0.1 - 0.5MOQ: 2000 Pieces
-
CAT.6 Dual IDC Moudlar Jack for Patch PanelUS$ 0.1 - 1.5MOQ: 3000 Pieces
CAT6A RJ45 8p8c UTP Keystone Jack
( Output: 20 KPCS Per month)
Factory Advantages:
- OEM & ODM Services
- 25 years warranty
- 100 % Tester, 100% Pass Fluke Test
- Shortest Leading Time
| Item | Description |
| Product Name | CAT6A Unshielded Keystone Jack |
| Packing | Inner-Plastic Bag; Middle-White Box;Outer -Standard Carton Box( inner with dry bag to protect from water) |
| Quality Control | Conducted by GB/T19001-2008/ISO9001:2008 Quality Management System |
| Service | Warm and quick response service provided by the professional Export Sales Team with many years' experience in handling exports to the US, Europe, Australia, other countries and regions. |
| Inspection | IQC, IPQC,FQC,QA |
| Technical Details | |
| Current Rating: | 1.5 Amps |
| Insulation Resistance: | 500 Megaohm |
| DC Resistance: | 0.1 ohm MAX |
| Voltage: | 150 VAC MAX |
| Insertion Life: | ≥ 1000 Mating Cycles |
| Plug Retention Force: | 89N |
| Temperature: | —60°C to 80 °C |
| IDC Accept: | 22-26 AWG Solid Wire |
| Wire Scheme: | T568A/ B |
| Test Standard | TIA CAT6 Perm Link( 7DB) /ISO11801 PL2 Class Ea(6DB) |
| Housing | High Impact PC,UL 94V-0 |
| CAP | High Impact PC,UL94V-0 |
| Spring Wire | Phosphor Bronze With Gold-plated 6u -50 u |
| IDC Contact | Phosphor Bronze |
| IDC Holder | High Impact PC,UL94V-0 |
| PCB | Glass Fiber ( Two Layers) |
1. Q: How can I get your quotation?
A: Please provide us informations as follows:
1. Item Number & Quantity. .
2. Special Specification requirement.
3. Company Profile (Name, Tel, Fax, Address, and Webpage)
4. Any Other Relevant Details.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: Terms of payment?
A: We accept payment as follows:
1).100% TT in advance.
2). 30% T/T deposit, 70% balance before delivery.
4. Q: Can you do OEM?
A: Yes we can.
5. Q: What about delivery time?
A: 1) Samples: within 3 days.
2) Goods: 15-20days usually.
6. Q: Factory Inspection?
A: Any time .
7. Welcome to our factory for inspection.
