               Welcome to Shenzhen Enster Electronics Co.,Ltd

Enster UTP  HD Passive transmitter CAT 5/5E/6 Video Balun Connector Power Supply for CCTV Camera

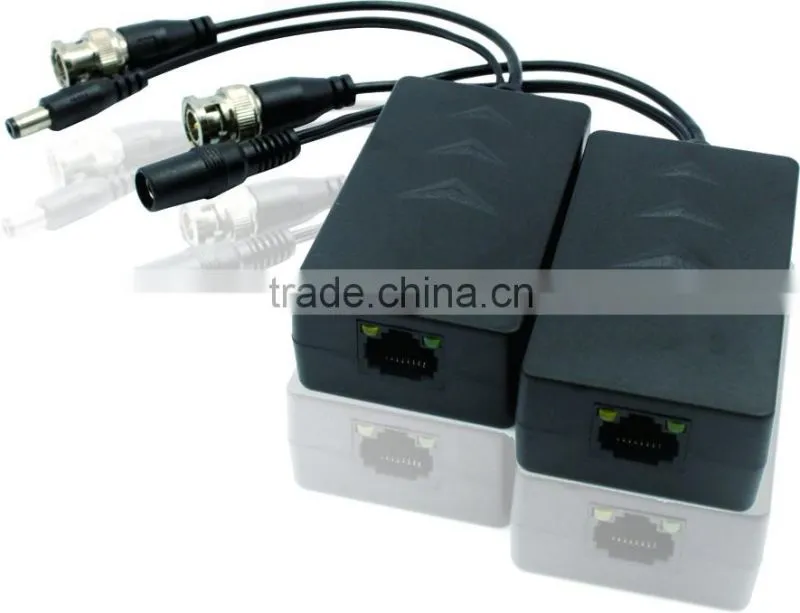

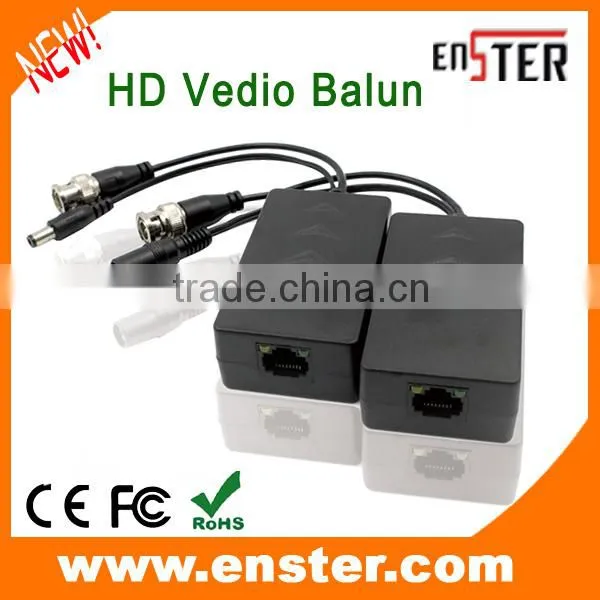

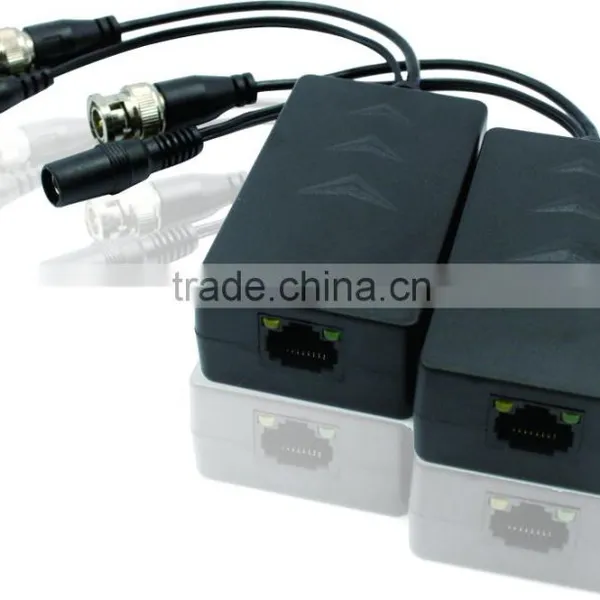

Enster UTP HD Passive transmitter+receiver, CAT 5/5E/6 Video Balun Connector Power Supply for CCTV Camera



Enster UTP HD Passive transmitter+receiver, CAT 5/5E/6 Video Balun Connector Power Supply for CCTV CameraEnster UTP HD Passive transmitter+receiver, CAT 5/5E/6 Video Balun Connector Power Supply for CCTV Camera









Feature



(1)Input voltage: 24-36V DC; Output max 12V DC 10W(Input voltage=36V)
(2)Transmitting 1CH stable 12V DC power to camera max to 300M, simplified project wiring
(3)Input/output isolated power voltage up to 1000V
(4)HD video transmission distance:
HDCVI 720P: 400M; 1080P: 200M;
HDTVI 720P/1080P:200M;
AHD 720P: 300M
(5)Power efficiency up to 80%
(6)RJ-45 plug for easy installation
(7)Safety: anti-interference, super surge protection, anti-static,transient protection
(8)Outer design: with extend coaxial cable, easy to install with DVR, Rj45,BNC,DC
(9)BNC and male/female DC plug
(10)Buitl in TVS for surge protection







Product Description



Model No. NST-PV201TR
Item Specification

Properties

Transmission Signal

1 Channel

Transmission Distance

HDCVI 720P:400m / 1080P:250m;
HDTVI 720P /1080P:250m;
AHD 720P: 350m / 1080P:200m
Power transmission distance Input Voltage DC 24V DC 36V
Distance 0-100M 0-200M 200-300M 0-300M
Output(Max) DC 12V 10W DC 12V 6W DC 12V 3W DC 12V 10W

Category Type

UTP CATS5 /5E /6

Vedio Transmission Properties and Port

Coaxial Video Connector

BNC-M
Twisted-pair Video Poty RJ-45
Compatible Format HDCVI /HDTVI /AHD
Resolution 720P /1080P
Network bandwidth 0-65M

Anti-interference

>60db

Protection

ESD

1a contact discharge electricity level 3
1b air discharge electricity level 3
Per:IEC61000-4-2

Coaxial Cable Connector

2KV(common-code)Per:IEC1000-4-5

UTP Cable Connector

2KV(different-code),4KV(common-code),Per:IEC1000-4-5

Impedance

BNC Male

75 ohms

UTP Cable

 100 ohms

Physical Properties

 Dimension(L*W*H) 72.6*42.5*24.5mm
Shell ABS
Color Black
Stability MTBF >10000H

Environmental

 Operating Temperature -10-55°C
Storage Temperature -20-70°C
Humidity 0-95%(non-condensing)





Certificate
