Home > Security & Protection > Alarm & Security Systems > Alarm & Security System Accessories > Enster UTP 8CH HD Passive Transceiver, Video Balun For HDCVI/HDTVI/AHD CCTV Camera Quality Choice

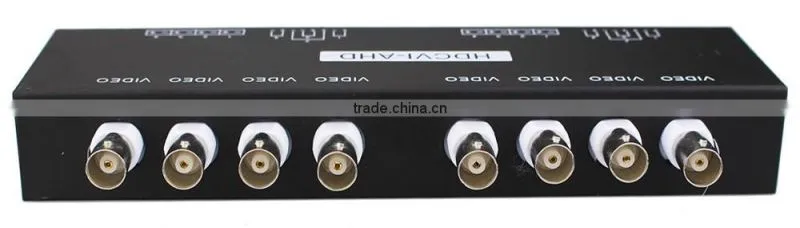

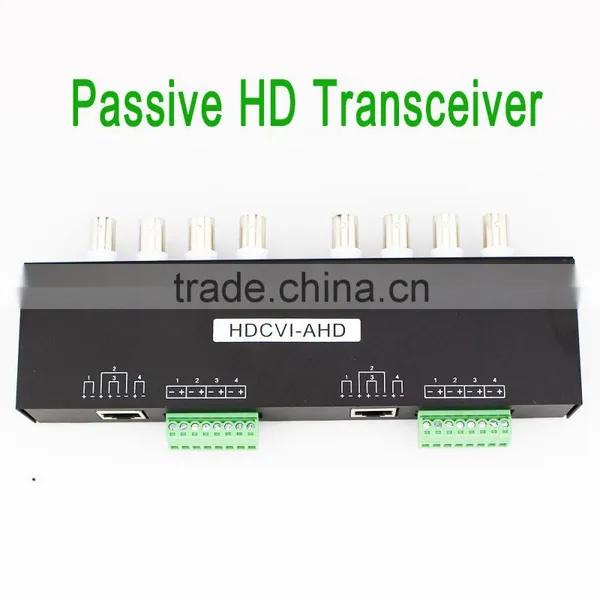

Enster UTP 8CH HD Passive Transceiver, Video Balun For HDCVI/HDTVI/AHD CCTV Camera Quality Choice

Name: Enster UTP 8CH HD Passive Transceiver, Video Balun For HDCVI/HDTVI/AHD CCTV Camera Quality Choice
Brand: Enster
SKU: 100784441
Availability: InStock

Enster UTP 8CH HD Passive Transceiver, Video Balun For HDCVI/HDTVI/AHD CCTV Camera Quality Choice thumbnail-1

Enster UTP 8CH HD Passive Transceiver, Video Balun For HDCVI/HDTVI/AHD CCTV Camera Quality Choice thumbnail-2

Enster UTP 8CH HD Passive Transceiver, Video Balun For HDCVI/HDTVI/AHD CCTV Camera Quality Choice thumbnail-3

Enster UTP 8CH HD Passive Transceiver, Video Balun For HDCVI/HDTVI/AHD CCTV Camera Quality Choice photo-1

Enster UTP 8CH HD Passive Transceiver, Video Balun For HDCVI/HDTVI/AHD CCTV Camera Quality Choice photo-2

Enster UTP 8CH HD Passive Transceiver, Video Balun For HDCVI/HDTVI/AHD CCTV Camera Quality Choice photo-3

US$ 8.5 - 10.5 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Enster

Model Number:

NST-U108R

Contact Supplier Request Quote Chat Now

Shenzhen Enster Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Enster

Model Number NST-U108R

Welcome to Shenzhen Enster Electronics Co.,Ltd (Subject to Enster Industrial Limited)!

CCTV 8Channel Video Balun
Passive HDTVI HDCVI AHD Transceiver

Feature

(1)Compatible with HDTVI/HDCVI/AHD signal;
(2)Color HD video transmission distance (passive to passive):
(3)Color HD video transmission distance up to 600m (passive to active);

(4)no need for power supply;
(5)Using CAT 5/5E/6 UTP cable;
(6)RJ-45 or green terminal block to be chosen to connect UTP cable;
(7)Compact ID design;
(8)Plug and play,simple installation;
(9)Super surge protection&interference rejection.
(10)Real-time transmission,no delay;

Product Description

Model No.		NST-U108R
Item		Specification
	Channels	8 Channel
Function	Transmission Distance	HDCVI 720P:400m / 1080P:250m; HDTVI 720P /1080P:250m; AHD 720P: 350m / 1080P:200m
	Video Connector	BNC-F
	UTP Cable Connector	8 pin green terminal block,RJ-45
	Compatible Format	HDCVI /HDTVI /AHD signal
	Signal Transmission Band	0-65MHZ
	UTP Cable Connector Protection	2KV)(different mode) 4KV(common mod) Per:IEC6100-4-
	Video Connector Protection	2KV(ommon mode)Per:IEC6100-4-5
	interference Rejection	>60db
Protection	ESD	Contact Discharge:600V Air Discharge:8000V Per:IEC6100-4-2
Physical Properties	Size(LWH)	18010044mm
	Shell	Iron Metal
	N.W	580g
	Color	Black
Reliability	MTBF	>20000H
Environmental	Operating Temperature	0°C-55°C
	Storage Temperature	-20-80°C
	Humidity	0-95%(non-condensing)
