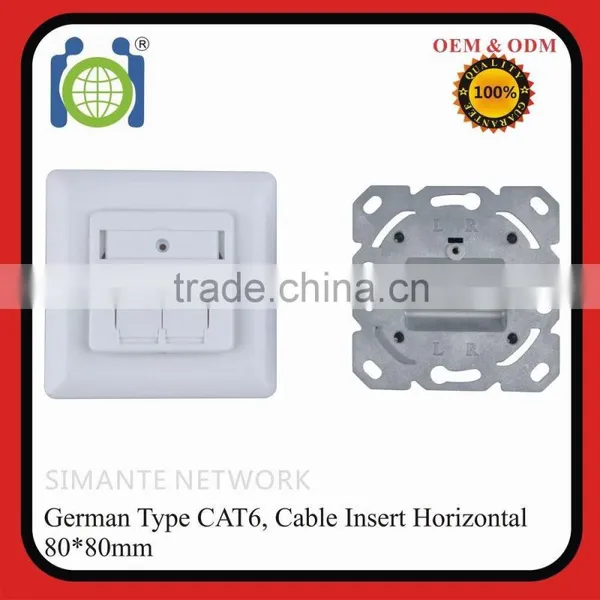

Germany 80*80mm RJ45 cat6 shielded Faceplate
Factory Advantages:
- OEM & ODM Services
- 25 years warranty
- 100 % Tester, 100% Pass Fluke Test ( DTX-1800)
- Shortest Leading Time
Description
Category 6 wall outlet (80 type Faceplate), fit for horizontal distribution in the equipment room and equipments connecting.
| Techinical Details: | ||||||
| Current Rating | 1.5 Amps | |||||
| Insulation Resistance | 500 Megaohm | |||||
| DC Resistance | 0.1 ohm MAX | |||||
| Voltage | 150 VAC MAX | |||||
| Insertion Life | ≥ 1000 Mating Cycles | |||||
| Plug Retention Force | 89N | |||||
| Temperature | — 60~80 °C | |||||
| IDC Accept | 22-24 AWG Solid Wire | |||||
| Wire Scheme | T568A/ B | |||||
| Test Standard | TIA CAT6 Perm Link | |||||
| Performance | Pass FLUKE Test ( DTX 1800) | |||||
| Cable Insert | Cable Insert from Side( Horizontally) | |||||
| Material: | ||||||
| Housing | ABS& PC ,UL94V-0 | |||||
| Shield | Zinc Die Casting | |||||
| Spring Wire | Phosphor Bronze With Gold-plated 6-50μover nickel | |||||
| IDC Contact | Phosphor Bronze | |||||
| IDC Holder | High Impact PC ,UL94V-0 | |||||
| PCB | Glass Fiber (One PCB) | |||||
| P/N | Bag | Box | Carton |
| SMT-4309-80F-HC6 | 1PCS/BAG | 1 Pcs(White and Netual Box, with 60*40mm sticker ) | 64 Boxes/CTN(36.5*36.5*28CM, with dry bag to protect from water) |

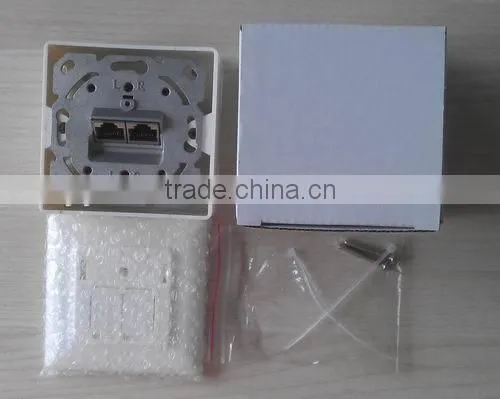

Packing Picture: OEM Packing can provide
1. Q: How can I get your quotation?
A: Please provide us informations as follows:
1. Item Number & Quantity. .
2. Special Specification requirement.
3. Company Profile (Name, Tel, Fax, Address, and Webpage)
4. Any Other Relevant Details.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: Terms of payment?
A: We accept payment as follows:
1).100% TT in advance.
2). 30% T/T deposit, 70% balance before delivery.
4. Q: Can you do OEM?
A: Yes we can.
5. Q: What about delivery time?
A: 1) Samples: within 3 days.
2) Goods: 15-20days usually.
6. Q: Factory Inspection?
A: Any time .
7. Welcome to our factory for inspection.
SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
