Fish Feed Extruder1. Twin screw Extruder
2. Various Shapes to get by adjusting the mould from extruder
Fish Feed Extruder, Fish Feed Equipment
1. Description:
Fish Feed Extruder is used for processing for dogs and cats (pet food), birds, piglets, frogs, sinking and floating aquatic feeds for fish. Which is high and new technical program as to catch the developing pet food market. Pet food line mainly use maize, fish powder, meat powder and some food additive as main raw material, through mixing, extruding, roasting, flavoring to get the final puffed pet food.
2. Raw materials: adopts corn flour, fish meal as raw materials
3. Products: This line can be used to produce fish pellets, the pellets size can be from 1.0mm to 9.0mm by adjusting the moulds from extruder; meanwhile it can produce dog food, cat food
4. Capacity: 150kg/h, 240kg/h, 500kg/h, 1ton---3ton/h
5. Flow chart:
Mixing system---Extrusion system----Drying system----Flavoring system--Packing system
6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
7. Machines materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function
8. Technical Parameters
Model |
Installed power |
Real power |
Output |
Dimension |
AMC65 |
70kw |
40kw |
100-150kg/h |
22000x1200x2200mm |
AMC70 |
90kw |
50kw |
200-240kg/h |
25000x1500x2200mm |
AMC85 |
120kw |
100kw |
400-500kg/h |
30000x3500x4300mm |
AMC90 |
135kw |
100kw |
800-1000kg/h |
30000x3500x4300mm |
AMC115 |
165kw |
115kw |
1000-2000kg/h |
30000x3500x4300mm |

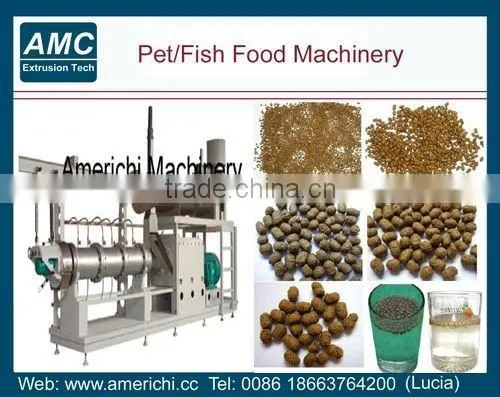

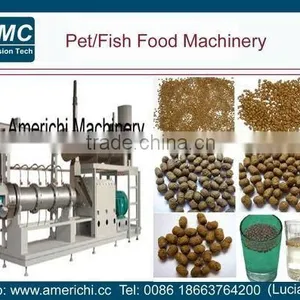

9. Sample pictures
