Help Center1ton/h Extrusion Fish Feed Making Machine
Related Products
Specifications
Fish feed making machine1. Twin screw Extruder
2. Various Size to get by adjusting the mould
3.Capacity: 150-500kg/h, 1ton
Alpaca/Fish/Pet/Dog/Cat food machines
High protein high nutrition fish feed food extrusion machines
1. Description:
Fish food machine is applied to produce the food with novel shape, particular taste and color, scientific nutrition combination catch up the trend of the market. In fish food processing line you will see the advanced technology of AMC machinery. With simple operation, accurate parameter control, the products can be finished in the stipulated temperature, pressure, humidity and time. Owing to the reasonable design, special materials, the stability, repairs can be guaranteed and ensured. The various shape and taste can meet the different requirements of the fish food.
a. Raw Materials: adopts corn flour, fish meal as raw materials
b. Products: different shapes are made by adjusting the dies from extruder
c. Capacity: 150kg/h, 240kg/h, 500kg/h, 1ton---3ton/h
d. Flow chart:
Mixing system---Extrusion system---Drying system---Flavoring system---Packing system
e. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
f. Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function
g. Technical Parameters:
Model |
Installed power |
Real power |
Output |
Dimension |
AMC65 |
70kw |
40kw |
100-150kg/h |
22000x1200x2200mm |
AMC70 |
90kw |
50kw |
200-240kg/h |
25000x1500x2200mm |
AMC85 |
120kw |
100kw |
400-500kg/h |
30000x3500x4300mm |
AMC90 |
135kw |
100kw |
800-1000kg/h |
30000x3500x4300mm |
AMC115 |
165kw |
115kw |
1000-2000kg/h |
30000x3500x4300mm |

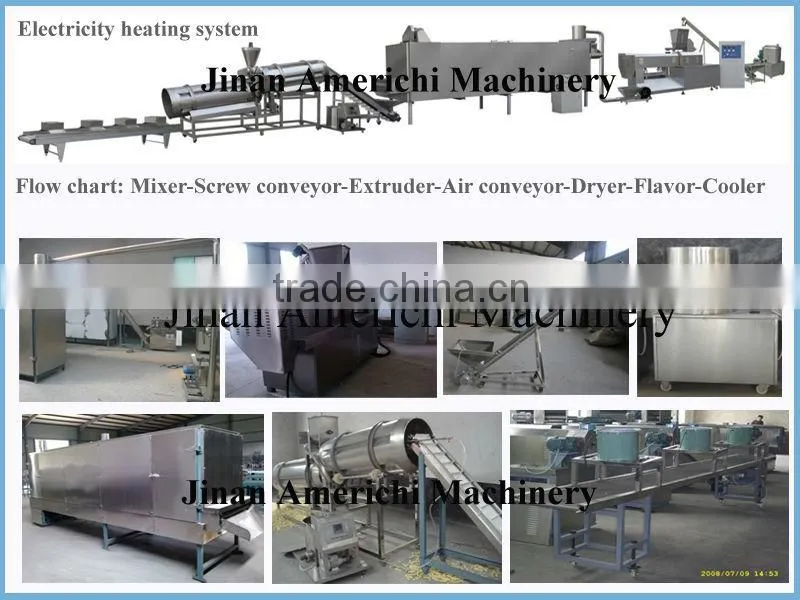

2. Flow Chart
3. Features of Our Twin Screw Extruder:

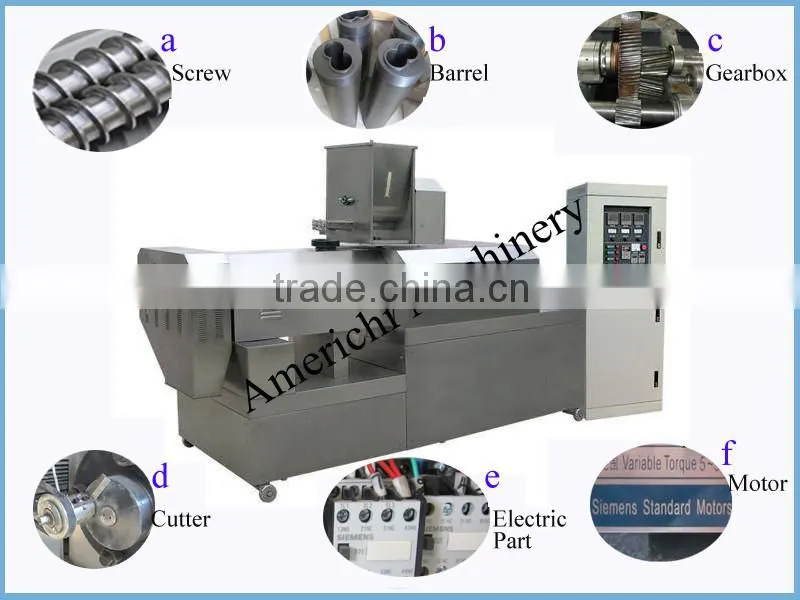

A. Twin screw extruder with electricity heating system
a. The screws are made by alloy steel (38CrMoAL) and special craft by nitriding process, The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
b. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.
c. The gearbox has automatic lubrication function, with extends gear life.
d. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
e. SIEMENS(CHINA) brands electronic parts used in the controller box, make sure the extrusion process perfect.
f. Main Motor from SIEMENS(CHINA), ensure its powerful extrusion and excellent performance.

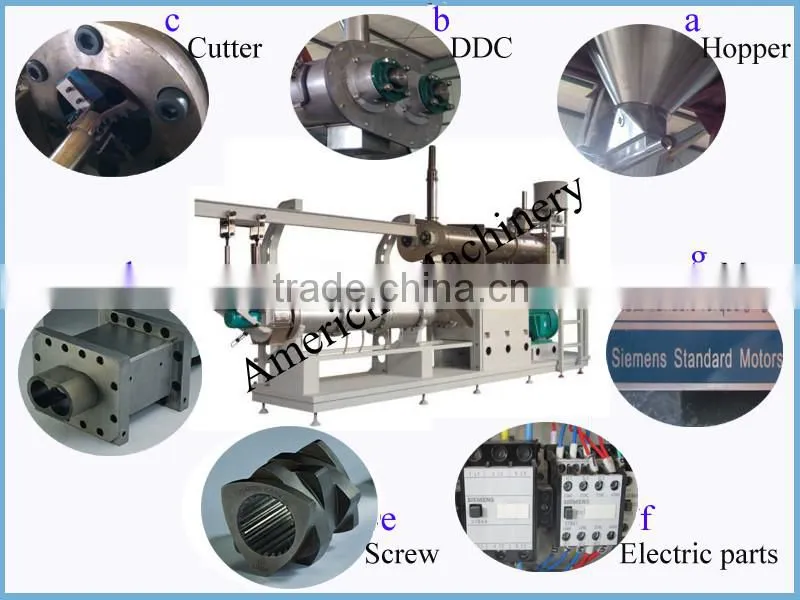

B. Twin screw extruder with steam heating system ensure the most efficient, continuous and stable heating effects.
a. Big capacity feeding hopper, variable frequency speed, two stages mixing wings, fast and efficient mixing and feeding.
b. DDC Double axis differential conditioner, available for steam, Pre-cooking and high efficient.
c. Linear slide face cutting system, strong power, variable frequency speed and large output,
d. Unique designed square barrels, made by hard carbide sleeve, hard-wearing and durable.
e. Modular circular groove screws, available for different extrusion rate applications.
f. SIEMENS(CHINA) brands electronic apparatus used in the controller box, make sure the extrusion process perfect.
g. Main motor from SIEMENS(CHINA), ensure its powerful extrusion and excellent performance.

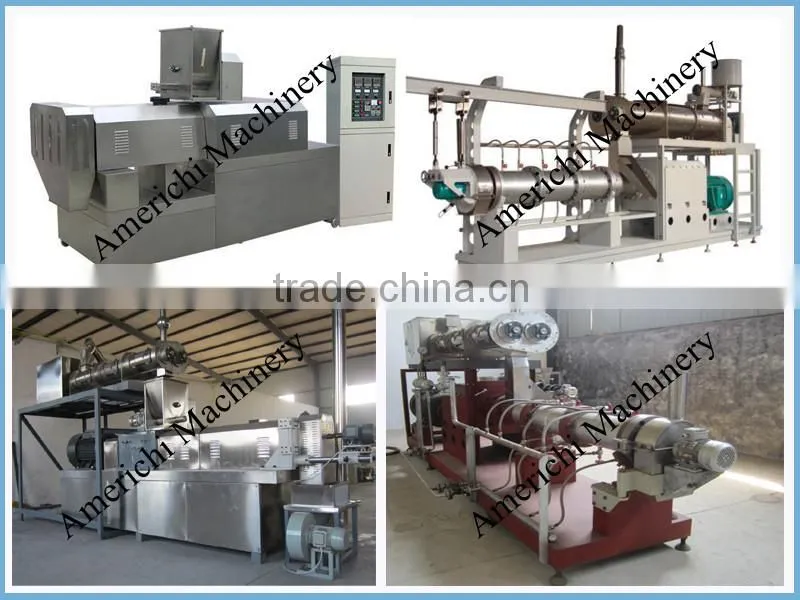

C. Different type and capacity of twin screw extruder for your choice
D. Famous brand of motor and electric parts for your choice:

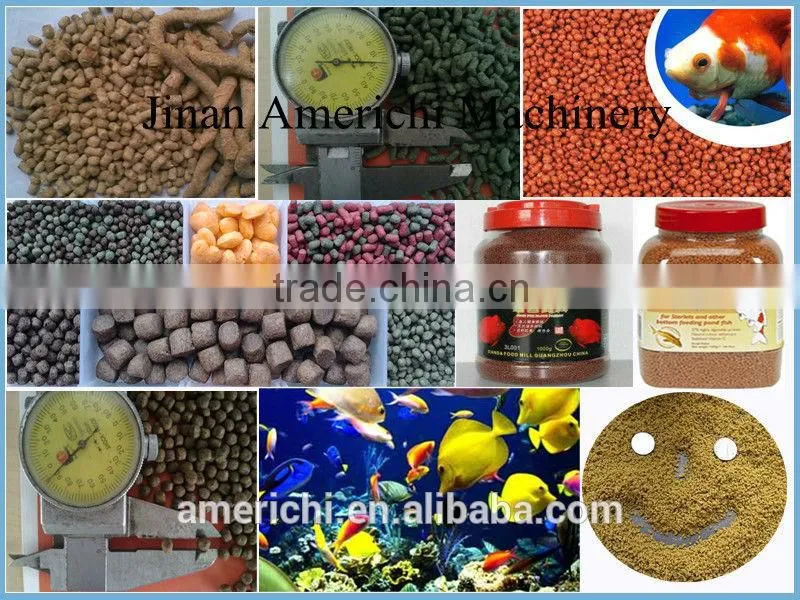

4. Fish Food Made By Our Twin Screw Extruder
Our twin screw extruder can make fish food like Flake, Pellet, Tablet etc with various shapes and tastes through changing the dies and formulas
We have full formula of foods and will guide you to use different materials to produce variety quality food.

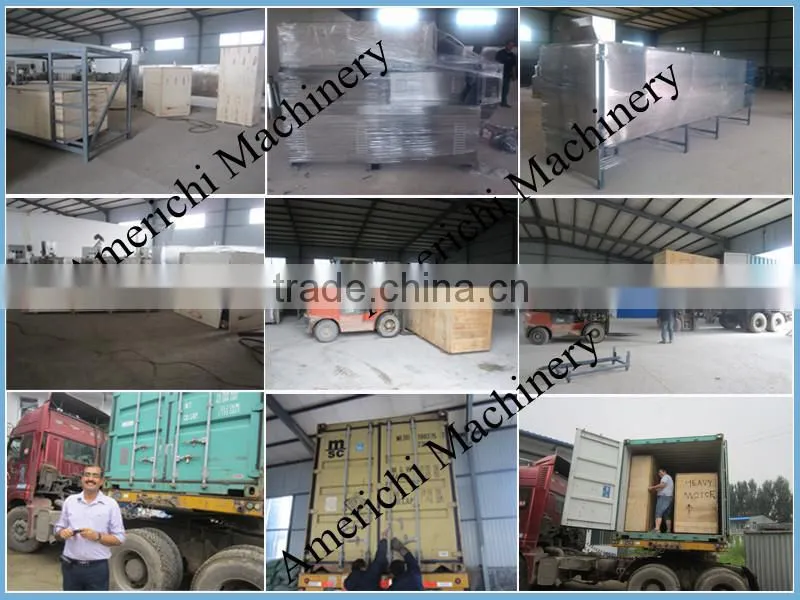

5. Strong Fumigation-Free Cases for 20' GP & 40' HQ
Packed by standard wooden case or wrapped by plastic film then shipped by container.
6. High Reputation Among Our Customers
At present, Our Company locks in 70% market share in China, and our products have been selling well to more than 90 countries like Germany, Australia, Ukraine, Malaysia, Indonesia, Syria, Philippine, Thailand, Romania, South America, Middle East, Africa and other countries or regions.
We hope to establish good and long term friendly business relationship with more clients all over the world in the future.

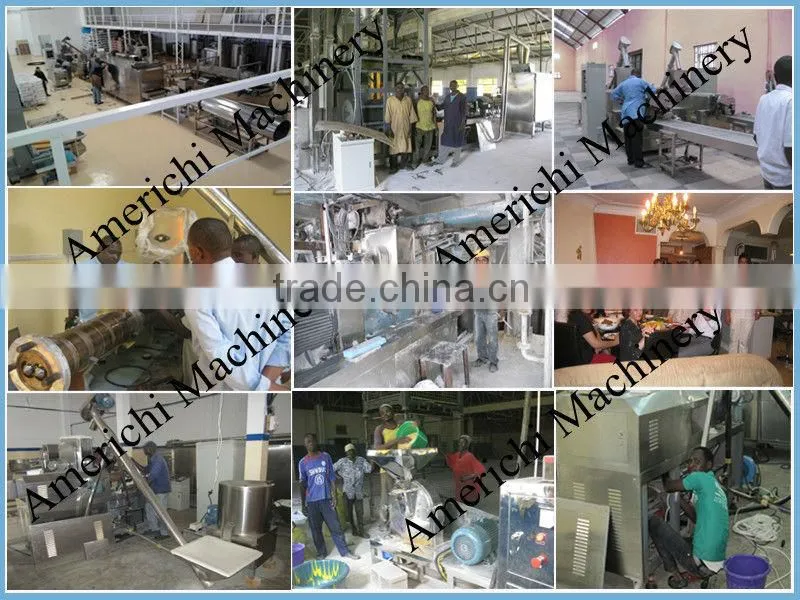

a. Customer visiting our factory

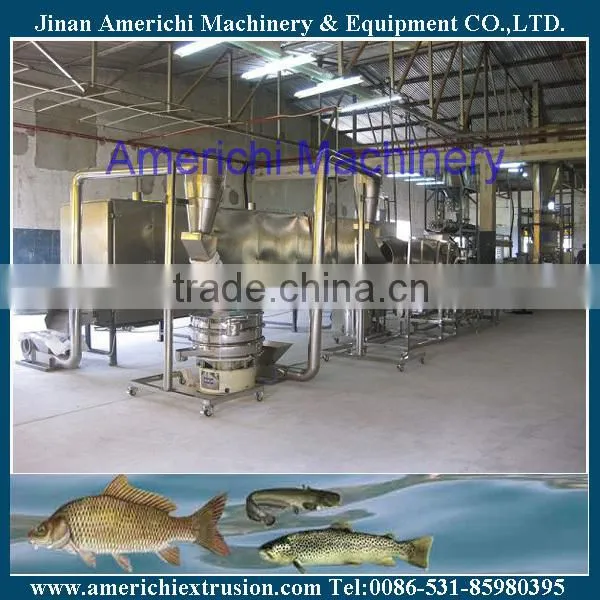

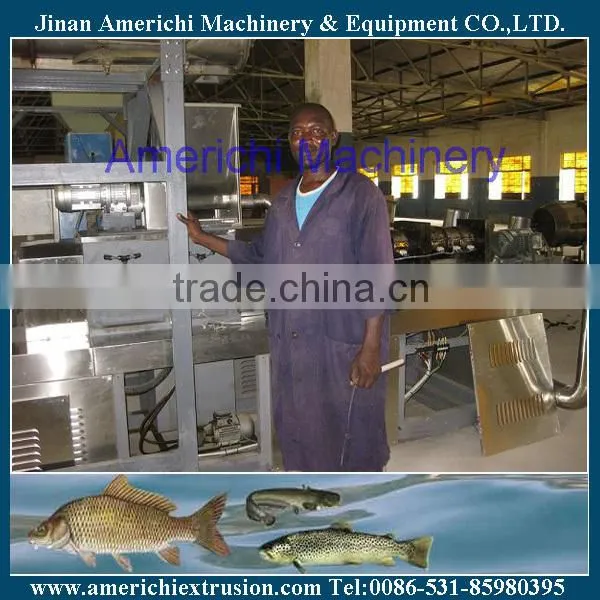

b. Installation & commissioning in customer’s factory
c. Reference customer list
7. About US
We, Jinan Americhi Machinery & Equipment Co., LTD., is a professional food machinery manufacturer in China. An exceptional engineering team, personal customer service center and high-quality manufacturing capabilities have evolved exponentially since our humble beginnings in 2004, making us one of the preeminent providers of reliable extrusion equipment world-wide. We can guarantee customers superior quality machines up to design requirements and perfect working state. Our technicians can also provide all kinds of relevant technology to make the food production clean, healthy and safe.
Americhi Company has its own manufacturing plants workshops in China, business scope covering mainly machinery and equipment for corn meal milling system, corn flakes & breakfast cereal system, baby food system, corn puff snacks system, pellets system,
artificial rice system, soy nuggets system; as well as pet food/fish food system.
Americhi Company engages in the technical research of extrusion foodstuff, in order to let our clients have superior foodstuffs to sell in the market. We can improve client's equipment and provide related training on new advanced technique. We can also make special designs for special products and materials according to clients' special requirements.
8. Quality Certification
9. Our Service
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free installation and commissioning of equipment until everything is functional;
4. Free management of equipments' long distance shipping;
5. Free training of equipment maintenance and operating personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warrantee and life-time maintenance service;
8. Engineers available to service machinery overseas.
9. Provide technical exchanging
10. Provide English Version of Installation/Operation/Service/Maintenance Manual
