Specifications
Pet dog fish food machine1. Twin screw Extruder
2. Various Shapes by adjusting the mould from extruder
3. 1ton/h, 2ton/h
Pet dog fish food machine
1. Description:
Pet food is plant or animal material intended for consumption by dogs or other canines. In extruder, the ingredients are cooked under intense heat and pressure as it moves toward the open end of the extruder where ingredients pass through a shaping die and knife.
2. Raw materials adopts corn flour, fish meal as raw materials
3. Products: different shapes are made by adjusting the dies from extruder
4. Capacity: 150kg/h, 240kg/h, 500kg/h, 1ton---3ton/h
5. Flow chart:
Mixing system---Extrusion system----Drying system----Flavoring system--Packing system
6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
7. Machines materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function
8. Technical Parameters
Model |
Installed power |
Real power |
Output |
Dimension |
AMC65 |
70kw |
40kw |
100-150kg/h |
22000x1200x2200mm |
AMC70 |
90kw |
50kw |
200-240kg/h |
25000x1500x2200mm |
AMC85 |
120kw |
100kw |
400-500kg/h |
30000x3500x4300mm |
AMC90 |
135kw |
100kw |
800-1000kg/h |
30000x3500x4300mm |
AMC115 |
165kw |
115kw |
1000-2000kg/h |
30000x3500x4300mm |

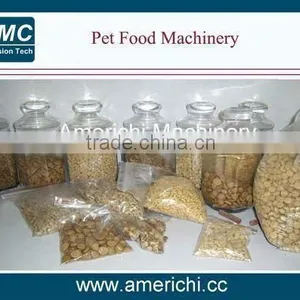

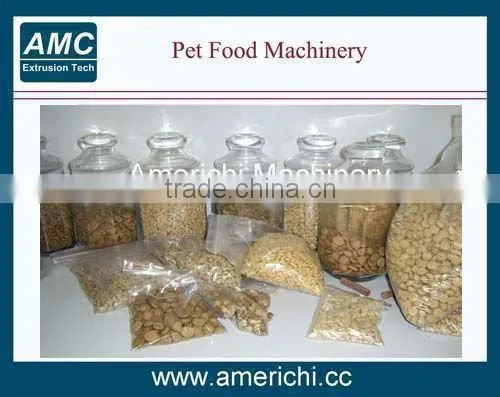

9. Sample pictures
