Dog food making equipment

Specifications

Dog food making equipment
1. Twin screw Extruder
2. Various Shapes by adjusting the mould from extruder
3.150kg/h, 500kg/h,

Dog food making equipment



1. Description:

Pet food is plant or animal material intended for consumption by dogs or other canines. In extruder, the ingredients are cooked under intense heat and pressure as it moves toward the open end of the extruder where ingredients pass through a shaping die and knife.



2. Raw materials adopts corn flour, fish meal as raw materials



3. Products: different shapes are made by adjusting the dies from extruder



4. Capacity: 150kg/h, 240kg/h, 500kg/h, 1ton---3ton/h



5. Flow chart:

Mixing system---Extrusion system----Drying system----Flavoring system--Packing system



6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries



7. Machines materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function



8. Technical Parameters

Model	Installed power	Real power	Output	Dimension
AMC65	70kw	40kw	100-150kg/h	22000x1200x2200mm
AMC70	90kw	50kw	200-240kg/h	25000x1500x2200mm
AMC85	120kw	100kw	400-500kg/h	30000x3500x4300mm
AMC90	135kw	100kw	800-1000kg/h	30000x3500x4300mm
AMC115	165kw	115kw	1000-2000kg/h	30000x3500x4300mm

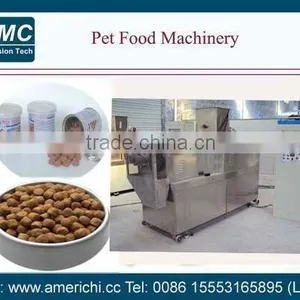

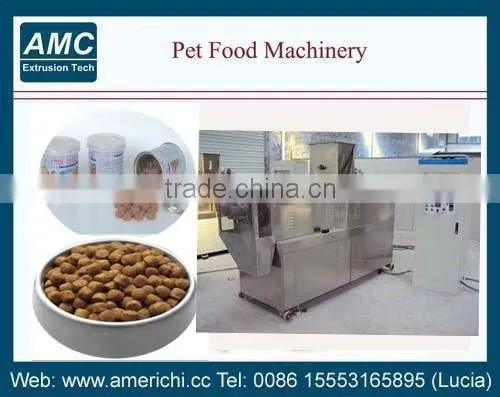

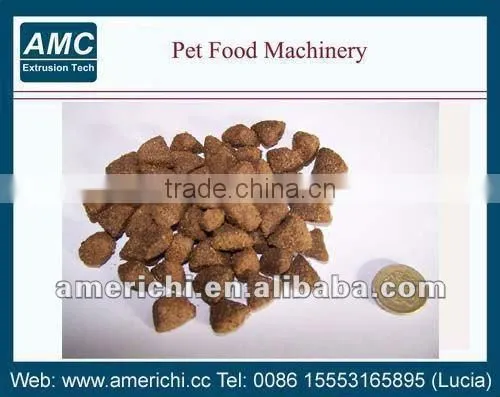

9. Sample pictures
