Specifications
Industrial Spice grinder1. made of stainless steel
2. dust collection
3.Capacity: 100-1000kg/h
Industrial Spice grinder, Sugar milling machine
1. Description:
1.Main Usage:
This machine is consisted of main motor, auxiliary motor, and electrical control cabinet with the capabilities of winnowing, on-sieve or mesh, equality of granule size, and continuous processing etc. it meets the international advanced level and is suitable for the material grinding by the trade of pharmaceutics, chemical, and foodstuff etc.
2.Working Method:
Raw material is delivered to the grinding chamber via hopper by spiral feeder, and is cut and sheared by the high speed cutters, and then the material is moved into the whirlwind separator and the sack dust catcher by the catcher by the negative pressure sucking method. The ejection material meets the product requirement.
2. Products: This line can be used to mill pharmaceutics, chemical and foodstuff etc.
3. Capacity: 100--1500kg/h
4. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
5. Machines Materials: All the machines are made by stainless steel
6. Technical Parameter
Model | WF-30 | WF-40 | WF-50 | WF-60 |
Capacity (kg/h) | 50-200 | 100-300 | 200-800 | 300-1000 |
Size of input granules(mm) | ≤6 | ≤6 | ≤6 | ≤6 |
Fineness of products(mesh) | 20-120 | 20-120 | 20-120 | 20-120 |
Power(kw) | 7.5 | 11 | 15 | 22 |
Speed (r/min) | 4200 | 3800 | 3200 | 2900 |
Dimension(mm) | 4500*900*2700 | 4650*1000*2700 | 4800*1100*3250 | 52*1300*3550 |

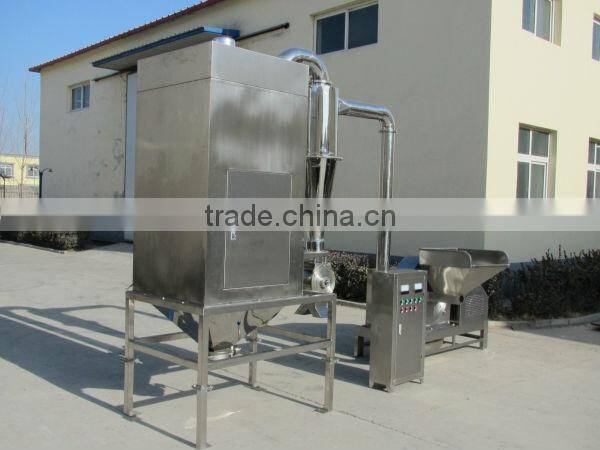

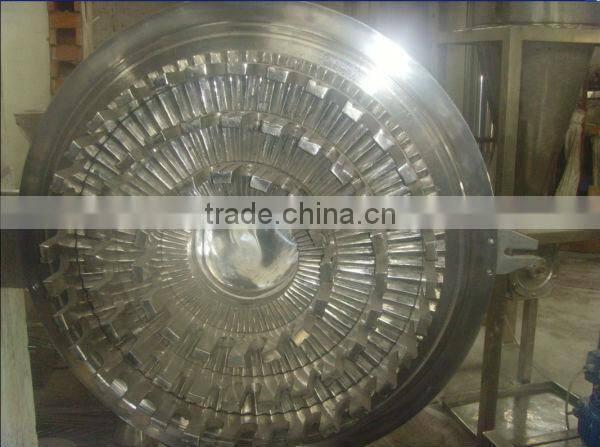

7. Pictures:
