Spice milling machine/spice grinder/spice crusher

Specifications

Spice grinder
1 CE High Effective Pulverizer
2 Spindle Rotating Speed 3400-4500 rpm
3 Capacity 60-800kg/h

Spice milling machine/spice grinder/spice crusher



1. Description:



Spice grinder adapts the vertical low raw material discharging equipment. High Effective Pulverizer makes some raw materials with poor fluidity after broken can be dischanged unblocked and no the phenomenon of accumulated powder.

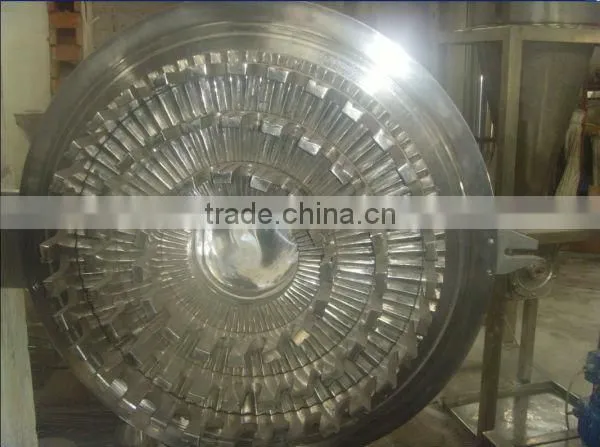

Its principle of work is as follows:when raw material entered into the crushing chamber.  High Effective Pulverizer is broken under the impacting of movable and fixed fluted discs that are rotated in high speed and then becomes the needed raw material through screen.

The Pulverizer and duster of GF series High Effective Pulverizerare all made of qualified stainless steel. Its inner wall of the housing is smooth and level being processed through superior technology. Therefore  High Effective Pulverizer can make the powder discharging more flowing and is benefit to the work of clean too. The gear disk of high speed and movable teeth are welded through special welding, it makes the teeth is durable, safety and reliable. High Effective Pulverizer is in conformity with the requirements of "GMP".

Through balance test of gear disk with high speed. It is proved that evne if GF series High Effective Pulverizer is rotated at high speed. It is stable and no vibration during the period of ordinary operation. Being adapted the interlock apparatus between gear disk with high speed and driving shaft, it is complete reliable in operation.

According to customer nees, may increase  water cooling device,and conveyer screw.



2. Products: This line can be used to mill sugar, spice etc.



3. Capacity: 60--800kg/h



4. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries



5. Machines Materials: All the machines are made by stainless steel



6. Technical Parameter



Model	GF20B	GF30B	GF40B
Capacity	60-150 kg/h	100-300 kg/h	160-800 kg/h
Spindle Rotating Speed	4500 rpm	3800 rpm	3400 rpm
Powder Fineness	20-120mesh	20-120 mesh	20-120 mesh
Feeding Size	<6mm	< 10 mm	<12 mm
Crusher Motor	4 kw	5.5 kw	7.5 kw
Overall Dimensions	1100*600*1650mm	1200*650*1650mm	1350*700*1700mm
Net Weight	250kg	320kg	550kg

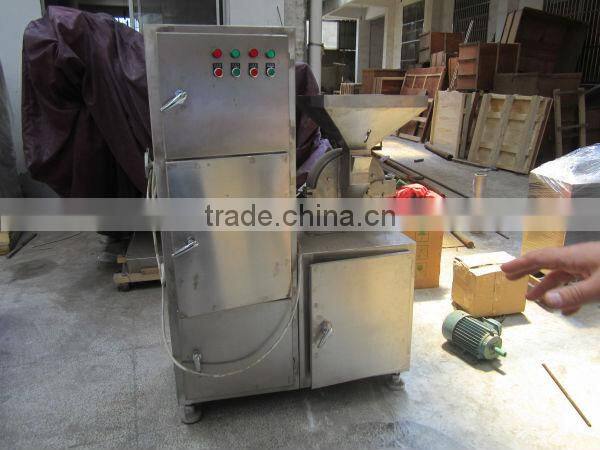

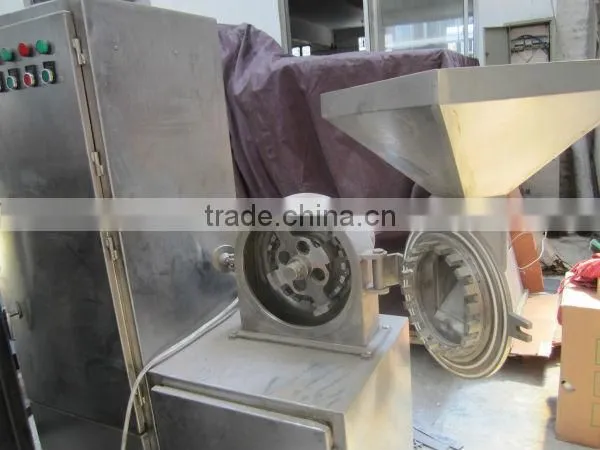

7. Pictures:
