Help CenterMicro Pulverizer
Related Products
Specifications
Micro Pulverizer1. made of stainless steel
2. no screening net
3. no dust flying
Micro Pulverizer
1. Description:
Main Application :
Comprised of main frame, auxiliary machine and electrical control cabinet, this machine has such performances as winnowing, screen or mesh free, uniform size and continuous operation, and has reached the international advanced level, thus being widely used for material crushing in pharmaceutical, chemical and foodstuff trades etc..
Working Principle:

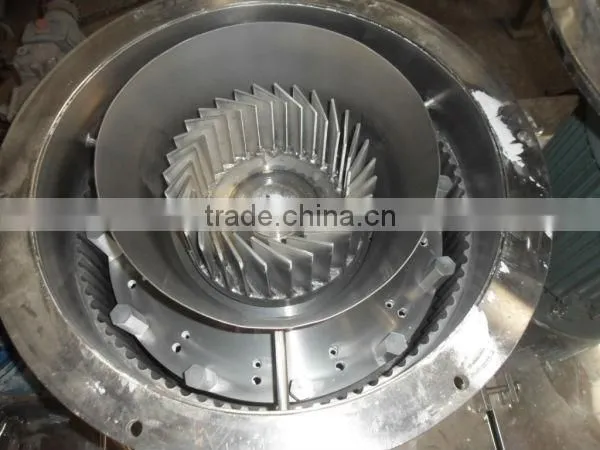

The material is fed into the crushing chamber by a screw conveyor, cut and crushed by high speed rotating blade and conveyed to the cyclone separator by means of negative pressure air conveyance before being discharged by bag type collector, and the dust is filtered and recovered by dust collector through filter barrel Having no dust flying during production, it can improve utilization rate of the material and reduce the cost of enterprise.
2. Products: This line can be used to mill pharmaceutics, chemical and foodstuff etc.
3. Capacity: 60--1500kg/h
4. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
5. Machines Materials: All the machines are made by stainless steel
6. Technical Parameter
Model |
Production Capacity |
Feeding Size |
Output size |
Total power |
Main Speed |
overall dimension |
weight |
WFJ-300 |
10-100kg/h |
≤10mm |
60-450mesh |
13.5kw |
5800r/min |
4200*1200*2700mm |
1000kg |
WFJ-450 |
50-250kg/h |
≤10mm |
60-450mesh |
19.3kw |
5200r/min |
4300*1350*2700mm |
1500kg |
WFJ-520 |
80-500kg/h |
≤10mm |
60-450mesh |
39.05kw |
5000r/min |
7920*1480*3290mm |
2500kg |
WFJ-630 |
200-1500kg/h |
≤10mm |
60-450mesh |
75.3kw |
4500r/min |
9500*1800*3730mm |
3200kg |

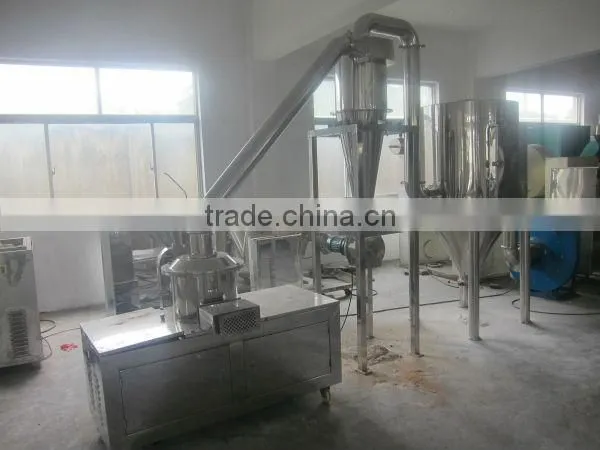

7. Pictures:
