Specifications
1. Standard: ASTM B337,ASTM B338,ASTM B861,ASTM B8622. 2.Technique: Seamless or Welding3. MOQ: 20kg

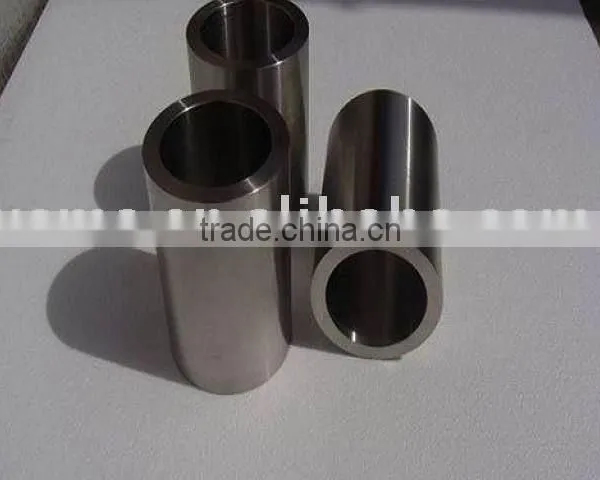

SAITE Titanium Pipe/Tube/Tubing
1. Titanium Pipe, Titanium Tube
Item name |
Titanium Pipe |
Standard |
ASTM B337,ASTM B338,ASTM B861,ASTM B862 |
Material |
Gr1,Gr2,Gr3,Gr4,Gr5,Gr7,G9,Gr12,Gr23 |
Length |
can be customized |
Application |
Chemical processing,Oil and chemicals,medical industry etc |
Packaging |
Plywood case lined with foam or as per clients requirements |
Payment |
T/T in advance or Irrevocable L/C at sight |
MOQ |
20Kg |
Leadtime |
Within 15 days based on MOQ after deposit |
Payment terms |
Payment terms: T/T or Irrevocable L/C at sight |
2. Manufacturable Scope
3. Chemical requirements
 |
N |
C |
H |
Fe |
O |
Al |
V |
Pa |
Mo |
Ni |
Ti |
Gr 1 |
0.03 |
0.08 |
0.015 |
0.20 |
0.18 |
/ |
/ |
/ |
/ |
/ |
bal |
Gr 2 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
/ |
/ |
bal |
Gr 3 |
0.05 |
0.08 |
0.015 |
0.30 |
0.35 |
/ |
/ |
/ |
/ |
/ |
bal |
Gr 5 |
0.05 |
0.08 |
0.015 |
0.40 |
0.20 |
5.5~6.75 |
3.5~4.5 |
/ |
/ |
/ |
bal |
Gr 7 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
0.12~0.25 |
/ |
/ |
bal |
Gr 9 |
0.03 |
0.08 |
0.015 |
0.25 |
0.15 |
2.5~3.5 |
2.0~3.0 |
/ |
/ |
/ |
bal |
Gr12 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
0.2~0.4 |
0.6~0.9 |
bal |
4. Tensile requirements
Grade |
Tensile strength(min) |
Yeild strength(min) |
Elongation(%) |
||
ksi |
MPa |
ksi |
MPa |
||
Grade1 |
35 |
240 |
20 |
138 |
24 |
Grade 2 |
50 |
345 |
40 |
275 |
20 |
Grade 3 |
65 |
450 |
55 |
380 |
18 |
Grade 5 |
130 |
895 |
120 |
828 |
10 |
Grade 7 |
50 |
345 |
40 |
275 |
20 |
Grade 9 |
90 |
620 |
70 |
438 |
15 |
Grade 12 |
70 |
438 |
50 |
345 |
18 |
