Specifications
1:Linear array deep penetration transducer2:wedges replaceable.
3:suit for simple weld,forging, casting parts and others.
Linear array deep penetration transducer:
We offer a full range of Phased Array ultrasonic probes & accessories for all industrial segments & applications.
all probes are manufactured & tested according to relevant international standards.
Phased Array probes are made in numbers of shapes & sizes for different applications.
Design to meet inspection criteria throughout the international standards, typically Europe & North America.
Features
- Electronic controls of beam angles, focusing, and scanning steps.
- Less settings & scanning time.
- Wide range of applications.
- A variety of wedges are available for selection.
Applications
- Power: Welding Inspections, Pressure Vessels, Oil Refineries, etc.
- Aviation / Aerospace: Welding, Landing Gear Inspection.
- Transportation: Composites, Planks.
- General: Forgings, Castings, Pipes, Bridges & other structures.
About Transducer

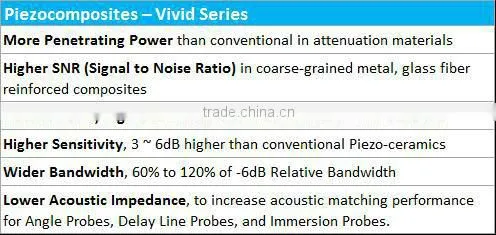

All Industrial & Medical Arrays of DOPPLER are based on Piezocomposite Technology.
Piezocomposite materials have a high coupling coefficient (>65%), that confers to the transducers a high sensitivity and signal to noise ratio, high bandwidth;
The 1-3 structure of the composite avoids radial vibration modes. This performance directly benefits to the beam pattern and pulse shape.
Moreover it allows the manufacturing of phased array transducers with low crosstalk between neighbor elements.

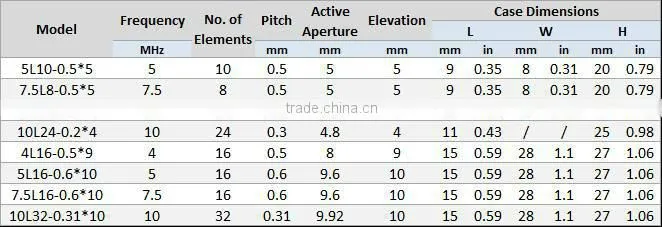

Specification & Parameter – Linear Small Series
Connector Options
Note: Other or Special Connectors are available for special design & order.

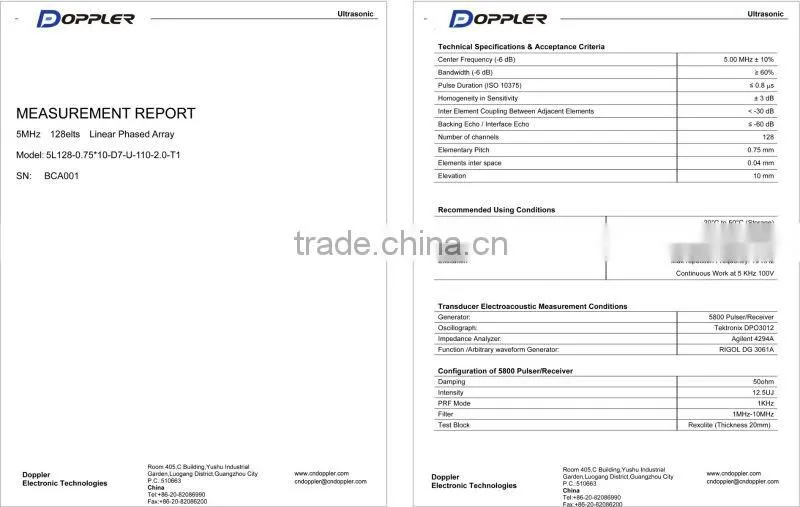

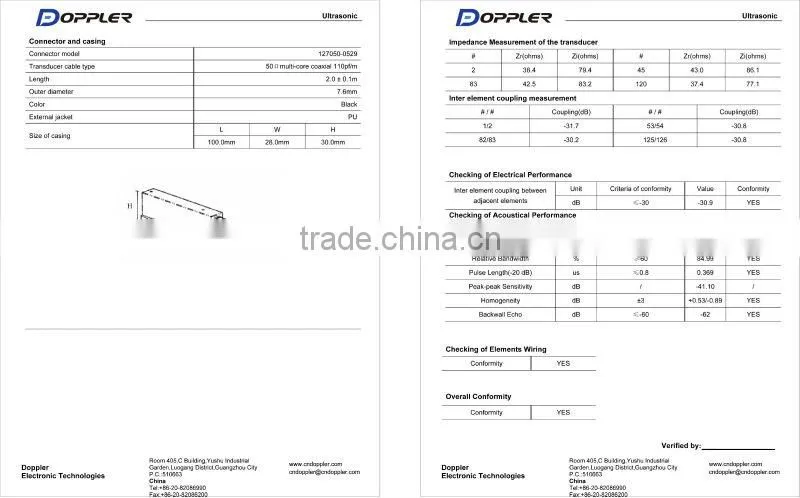

Certifications

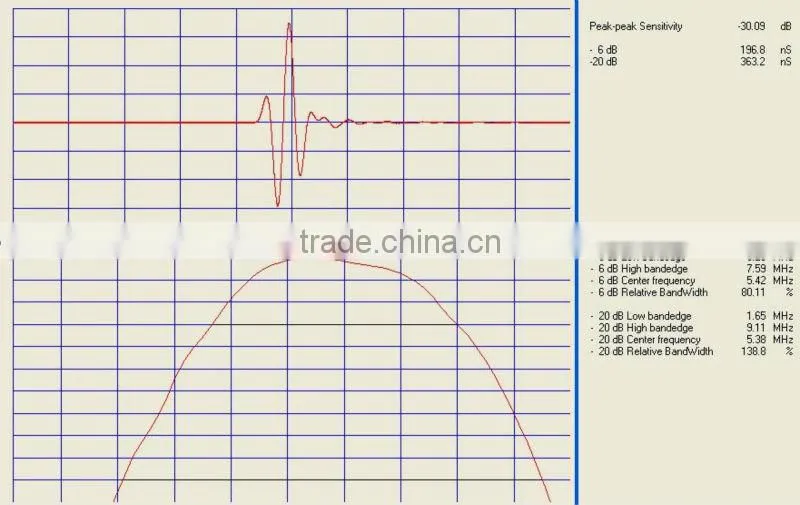

Doppler provides actual measurements of Real-time Echo Waveform & Frequency Spectrum for each transducer.
All data listed in certifications with traceability.
All equipment for quality & performance testing of transducers are complied with domestic & international relevant standards.
Certificate available at present:
