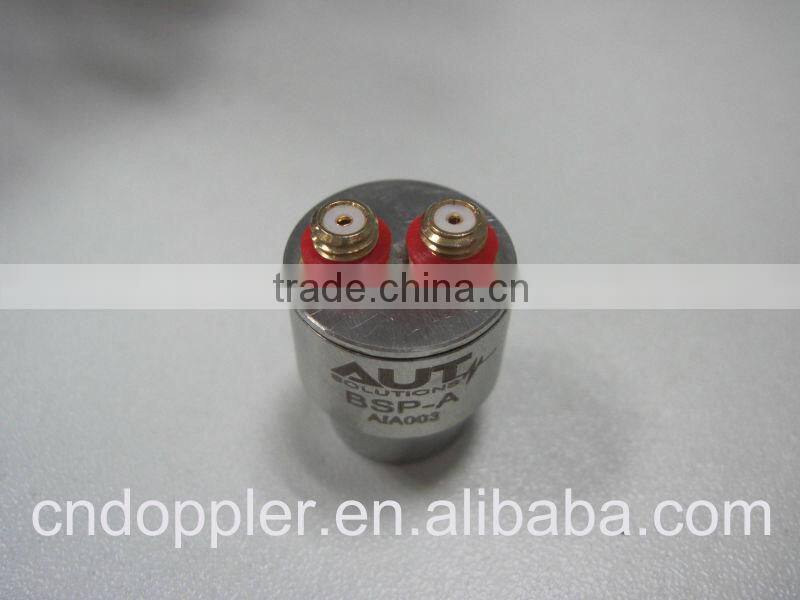

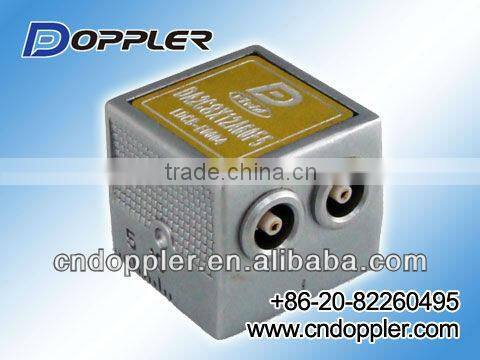

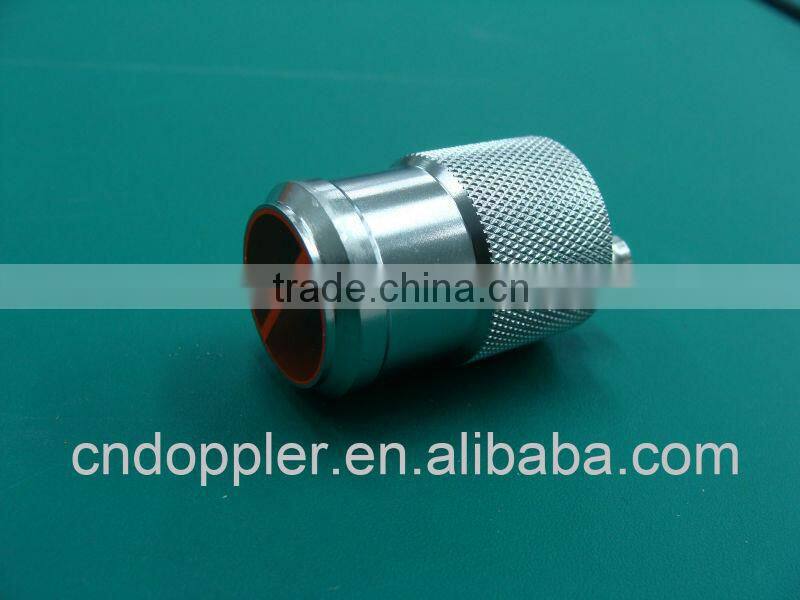

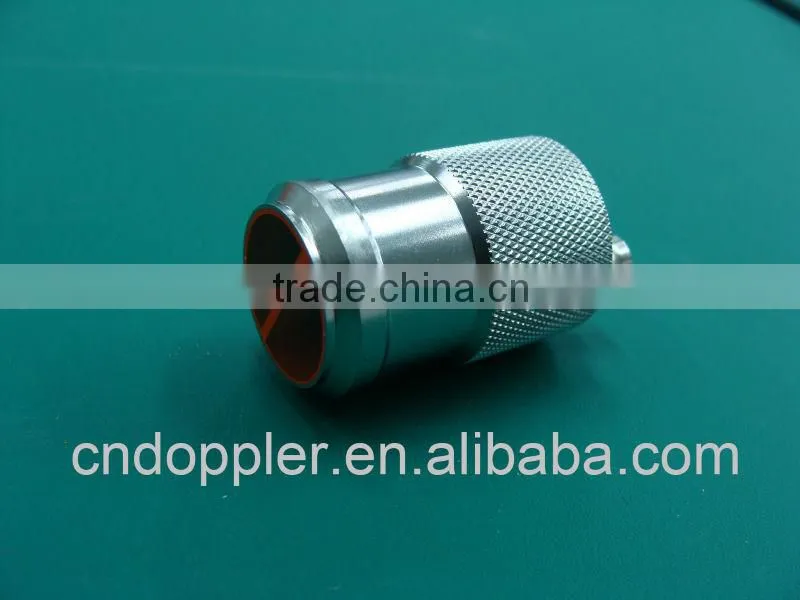

Help CenterSmall Parts Inspection-Dual Crystal Transducer and Probe
Related Products
-
Complex Geometric Parts Inspection-immersion Waterproof Probe TransducerUS$ 140 - 470MOQ: 1 Piece -
Doppler Immersion Ultrasonic TransducerUS$ 145 - 270MOQ: 1 Piece
-
Near Surface Flaw Detection-Dual Crystal Transducer and ProbeUS$ 162 - 324MOQ: 1 Piece
-
Delay Line ProbeUS$ 220 - 370MOQ: 1 Unit
-
TOFDUS$ 300 - 500MOQ: 1 Unit
Specifications
1 Excellent near surface resolution2 Small dead zone
3 Small scattered noise
4 Comparable with GE/OLYMPUS
Overview
Doppler’s ultrasonic probe production line includes normal probes, narrow-pulse normal probes, angle probes, variable-angle probes, dual normal probes, immersion probes and phased-array probes, etc. Besides, OEM orders are acceptable according to probe specification and quantity. Doppler’s probes can meet your demands for perfection.

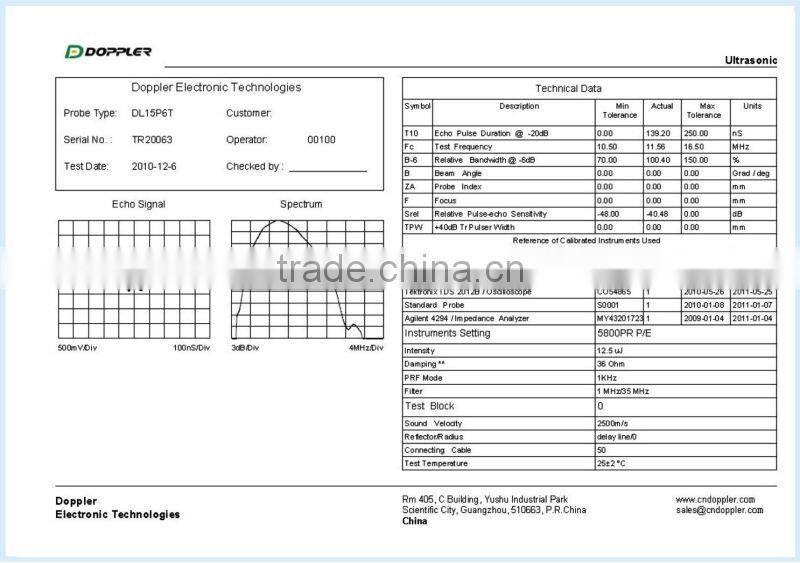

Real-time Waveform & Spectrum
Doppler provides actual measurement diagrams of echo waveform & frequency specture for every probe with unique serial number.All data listed in certification with traceability,used of testing equipment and testing objects are complied with relevant domestic & international standards and have undergone strict validation.
Advantages
- Improves near surface resolution
- Couples well on rough or curved surfaces
- Reduces direct back-scattering noise in coarse grained or scattering materials
- Combines penetration capabilities of a lower frequency
- single element transducer with the near surface resolution capabilities of a higher frequency single element transducer
- Can be contoured to conform to curved parts
Applications
- Remaining wall thickness measurement
- Corrosion/erosion monitoring
- Weld overlay and cladding bond/disbond inspection
- Detection of porosity, inclusions, cracks, and laminations in castings and forgings
- Crack detection in bolts or other cylindrical objects
- Train wheels
- Shafts,rods,billet cores defect

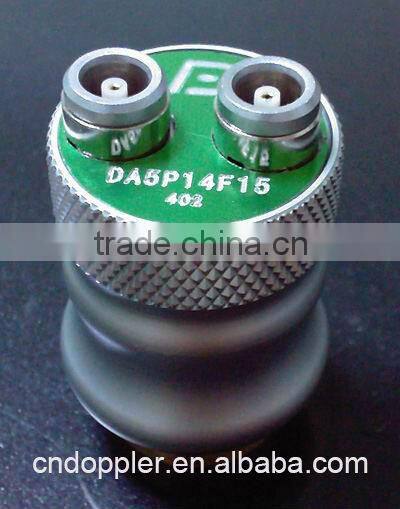

TOP mounting connector

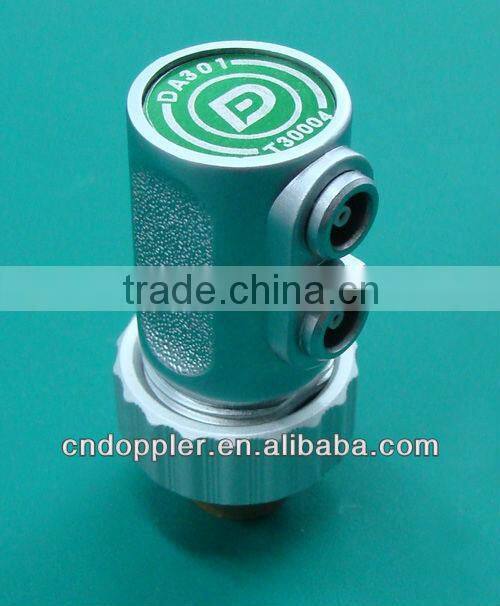

Side mounting connector
Quality certificates
Order note:
Doppler's strongest strength is providing customers with custom and special probes design.If you have any other requirement ,please contact Doppler.
