General Information
All probes are manufactured & tested according to relevant international standards.
Apply on regular geometry & smooth surface;
Requires couplant between medium;
Design to meet inspection criteria throughout the international standards, typically Europe & North America.
Custom-designed probes can be special ordered.
Transducer Selection
Piezoelectric Ceramics – Conventional Series |
|
For general purpose, recommended for most of applications Medium pulse & attenuation, excellent combination of Gain & Resolution Medium Bandwidth, 40% ~ 60% of typically (-6dB) bandwidth Typical waveform outputs two half to three half ring cycles, depending on frequency, size etc. |
Piezocomposites – Vivid Series |
|
More Penetrating Power than conventional in attenuation materials Higher SNR (Signal to Noise Ratio) in coarse-grained metal, glass fiber reinforced composites Shorter Pulse, Higher resolution than conventional series Higher Sensitivity, 3 ~ 6dB than conventional series Wider Bandwidth, 60% to 120% of -6dB Relative Bandwidth Lower Acoustic Impedance, to increase acoustic matching performance for Angle Probes, Delay Line Probes, and Immersion Probes. |

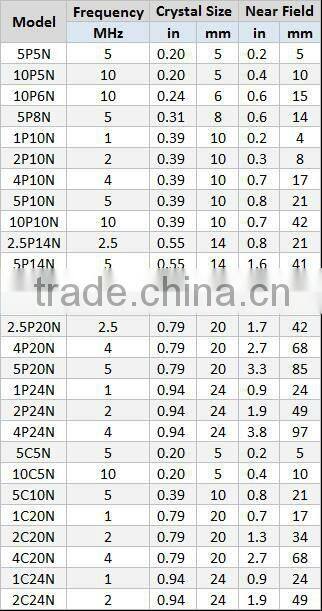

Specification & Parameter
Note: Other or Special Transducers are available for special design & order.
Probe Connectors
Model |
Transducer |
Instrument |
Length |
Impedance |
|
Connector 1 |
Connector 2 |
ft |
m |
ohms |
|
Q9-Q9 |
BNC |
BNC |
5.9 |
1.8 |
50 |
Q9-C5 |
Lemo 00 |
||||
Q9-C9 |
Lemo 01 |
||||
Q9-L5 |
Microdot |
||||
C9-C9 |
Lemo 01 |
Lemo 01 |
75 |
||
C9-C5 |
Lemo 00 |
50 |
|||
C9-Q9 |
BNC |
||||
C5-C5 |
Lemo 00 |
Lemo 00 |
|||
C5-L5 |
Microdot |
||||
Q9-C5 (Dual Plug) |
Dual BNC |
Dual Lemo 00 |
|||
Q9-L5 (Dual Plug) |
Dual Microdot |
||||
C9-C5 (Dual Plug) |
Dual Lemo 01 |
Dual Lemo 00 |
|||
C9-L5 (Dual Plug) |
Dual Microdot |
||||
C5-C5 (Dual Plug) |
Dual Lemo 00 |
Dual Lemo 00 |
|||
Note: Other or Special Connectors are available for special design & order.
Certifications
Doppler provides actual measurements of Real-time Echo Waveform & Frequency Spectrum for each transducer.
All data listed in certifications with traceability.
All equipment for quality & performance testing of transducers are complied with domestic & international relevant standards.
Real-time Waveform & Spectrum
