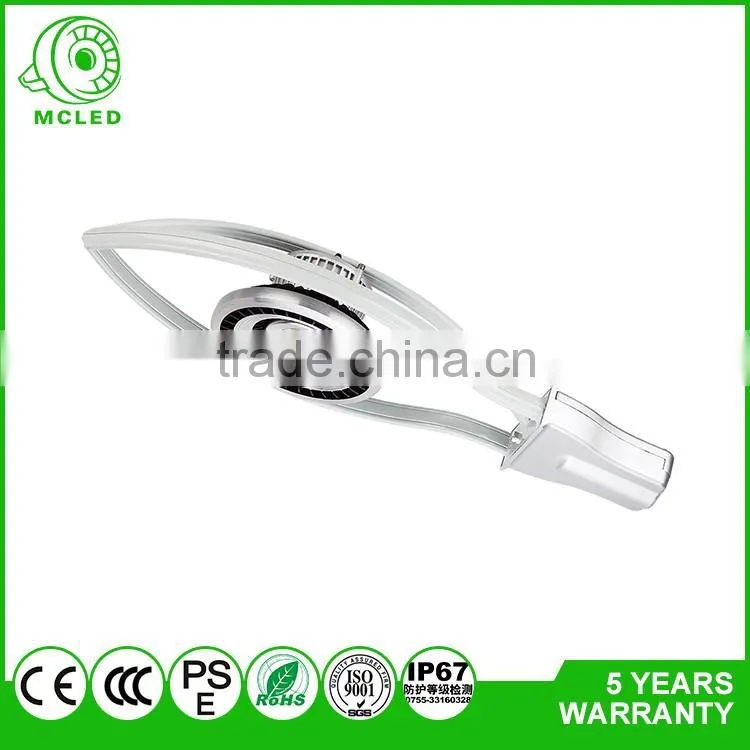

Help CenterLED Light Source and Aluminum Alloy Lamp Body Material Led Street Light
Related Products
-
Color Temperature 3000k, 4000k, 5000k, 6000k , 6500k Led Street LightsUS$ 1 - 150MOQ: 1 Piece -
Low Price & High Quality 50W-200W IP 67 Led Street LightUS$ 1 - 100MOQ: 1 Piece
-
Bridgelux Chip COB Light Source Low Power Led Street LightUS$ 1 - 100MOQ: 1 Piece
-
Classical Led Lamp COB Modules Led Street LightUS$ 1 - 160MOQ: 1 Piece
-
Bridgelux Led Chip High Quality IP 67 Led Street LightUS$ 1 - 100MOQ: 1 Piece
CE ROHS certificated50W-200W ed street light

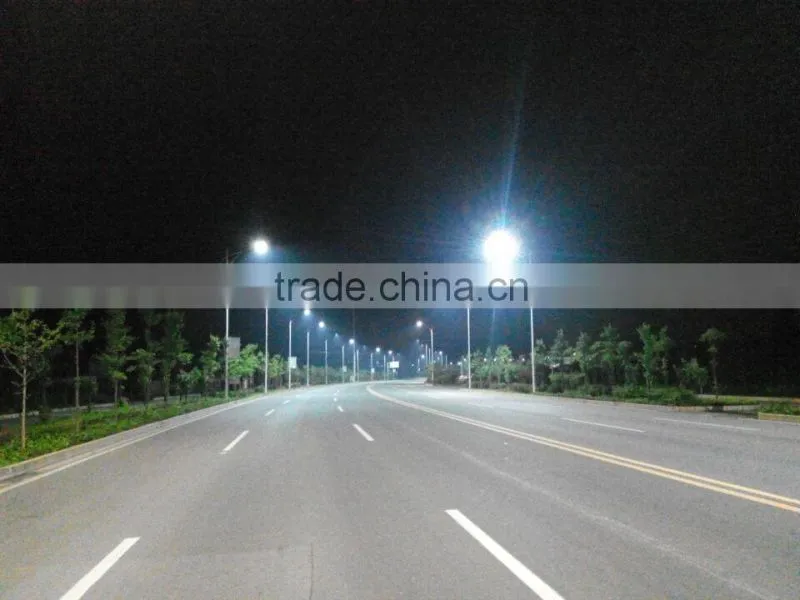

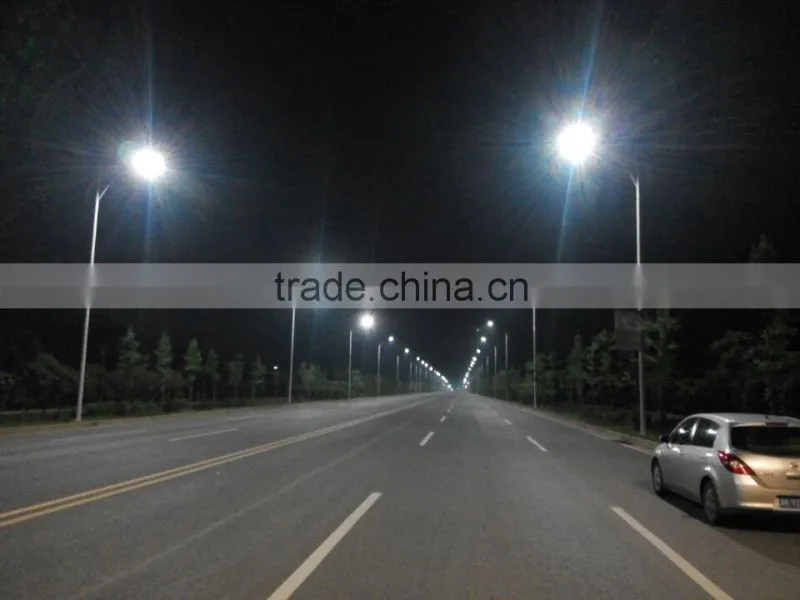

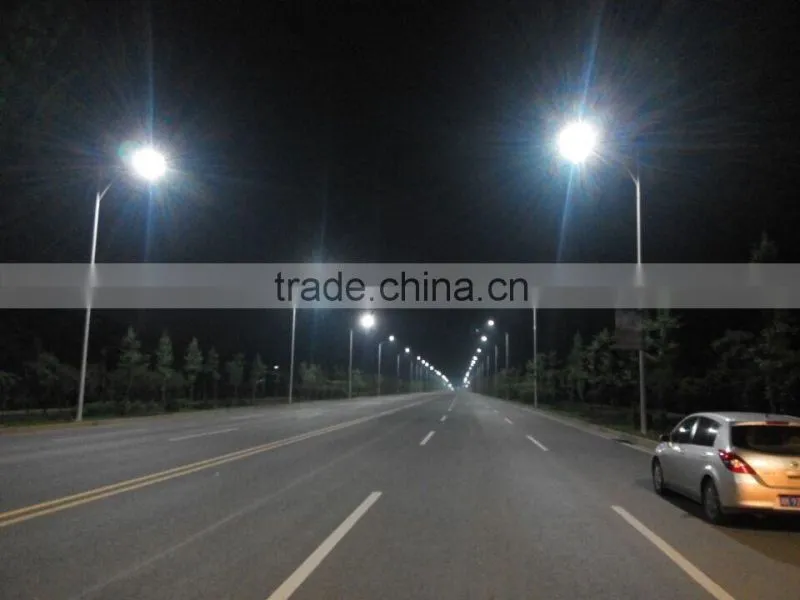

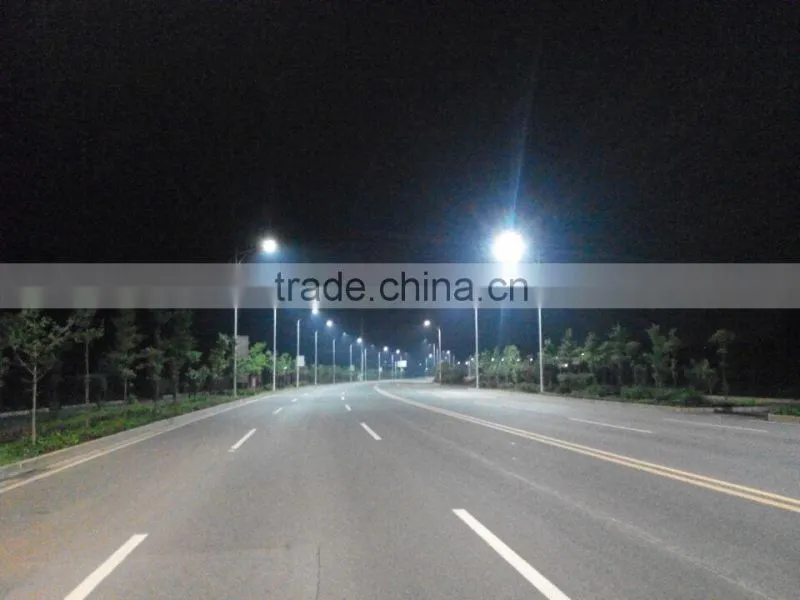

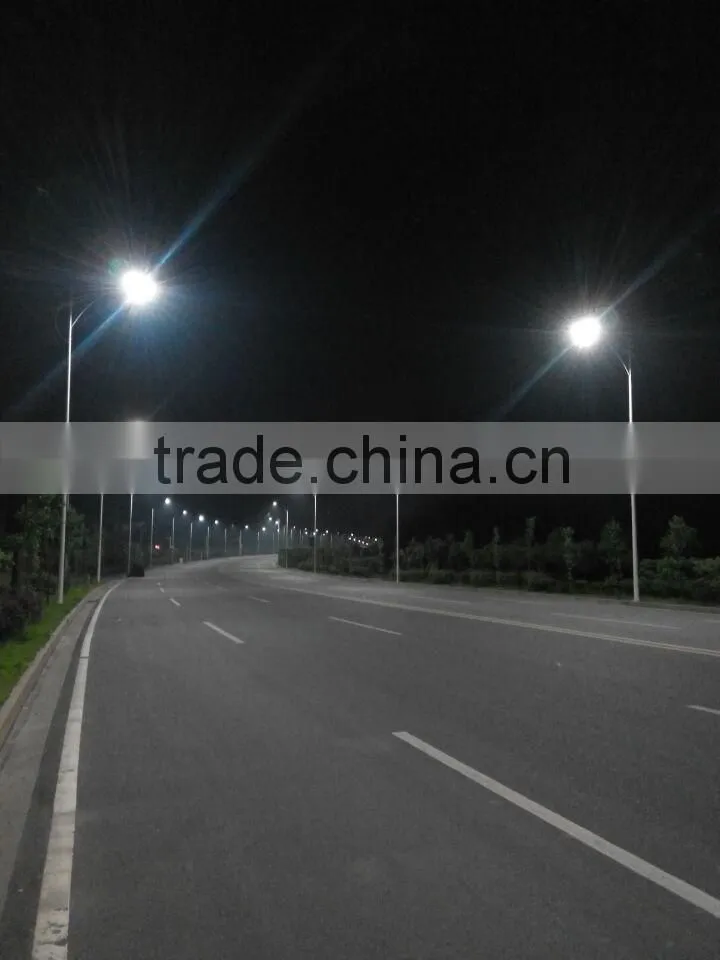

Apply to Roads, Highway, Highway Lighting, Bridge, Car Park, Garden, Park, Petrol Station, Sport Lighting, Square, Square Lighting
Key Specification
1.Input Voltage:AC85-265V
2.Frequency Range(HZ): 50-60Hz
3.Watt:50W-120W
4. Luminous Efficiency: >110lm/w
5.Power Efficiency: >95%
6. CRI: Ra>80
7. LED type: Bridgelux
8. Color Temperature:2700-7000K
9.Power Source: LED
10. Working Temperature(C): -40C~60C
11. IP Rating: IP67
12.LED street light housing is made from Alluminium die casting
13.High quality driver:MOSO
14.Working Lifetime: >50000hrs
15.Certification: CE, RoSH, PSE
16.Guarantee is 3~5 years
Technical Parameter
|
Model Item |
Ml015-50W~200W |
LED Power Consumption |
50W~200W |
System Power Consumption |
LED Power ×1.1 |
Input Voltage |
AC 100~265V |
Working Power Frequency Range |
47~63Hz |
Power Factor |
>0.95 |
Total Harmonic Distortion |
<20% |
Working Environment |
Temperature:-40℃~60℃; Humidity: 0~100% |
Average Temperature in 24 hrs |
≤35℃ |
Surface Highest Temperature |
≤60℃ |
Junction Temperature(TJ) |
<70℃ |
Lamp Luminous Efficacy(Lm/W) |
≥110Lm/W |
LED Initial Flux (Lm) |
LED Power×110LM |
Lamp Efficiency (%) |
≥90% |
Color Temperature |
2500K~7000K |
Color Rendering Index(CRI) |
Ra>75 |
LED Life Span |
>50000 h |
Protection Grade |
IP67 |
Lens Light Transmittance |
≥90% |
Beam Angle |
60°~160° |
Net weight |
9.5Kg |
Gross weight |
11Kg |
Packing size |
L105×W41×H25.5cm |
Applications:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks according to order quantity
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation
