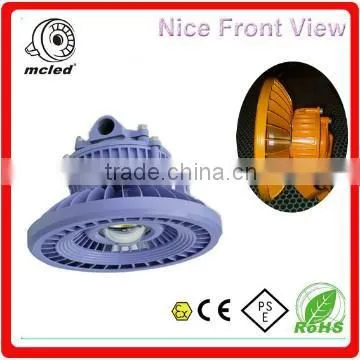

LED COB Bridgelux IP67 220VAC ATEX MF01-90W LED Explosion Proof lamp for Zone1 and Zone 2

Model

Item

MF01-70W

LED Consumption

70W

System Consumption

Power*1.1

Input Voltage

85-265V

Working Power Frequency  Range

50Hz/60Hz

Power Factor

 >0.95

Total Harmonic Distortion

 <20%

Working Environment

working temperature:  -25℃-45℃

Woking Humidity:0-100%

Average Temperature in 24 hrs

 <35°

Surface Highest Temperature

<60°

Junction Temperature(TJ)

 <70°

Lamp Luminous Efficacy(Lm/W)

>110lm/w

LED Initial Flux (Lm)

 LED consumption*110lm/w

Lamp Efficiency(%)

 >90%

Color Temperature

 2700-7000K

Color Rendering Index(CRI)

>70

LED Life Span

 >50000

Protection Grade

 IP67

Lens Light Transmittance

 >90%

Beam Angle

                           60-120°

Net weight

 6.3kgs

Gross weight

 7.1kgs

Packing size

35.3*35.5*25cm

Note:Lens can be changed according to client's specific requirement.
