MCLED IP67 AC220V MF01-130W LED Explosion Proof Lamp Hazardous Area Lighting ATEX Zone1 and Zone 2

MCLED IP67 AC220V MF01-130W LED Explosion Proof Lamp Hazardous Area Lighting ATEX Zone1 and Zone 2 thumbnail-1
MCLED IP67 AC220V MF01-130W LED Explosion Proof Lamp Hazardous Area Lighting ATEX Zone1 and Zone 2 thumbnail-2
MCLED IP67 AC220V MF01-130W LED Explosion Proof Lamp Hazardous Area Lighting ATEX Zone1 and Zone 2 thumbnail-3
MCLED IP67 AC220V MF01-130W LED Explosion Proof Lamp Hazardous Area Lighting ATEX Zone1 and Zone 2 photo-1

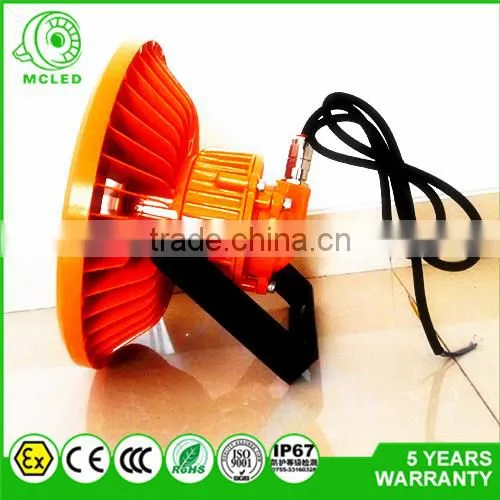

MCLED IP67 AC220V MF01-130W LED Explosion Proof Lamp Hazardous Area Lighting ATEX Zone1 and Zone 2 photo-2
MCLED IP67 AC220V MF01-130W LED Explosion Proof Lamp Hazardous Area Lighting ATEX Zone1 and Zone 2 photo-3
US$ 155 - 160 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Bridgelux
Input Voltage(V):
AC85-265V
Lamp Power(W):
130
Contact Supplier Request Quote Chat Now
Zhejiang Mingchuang Optoelectronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Bridgelux
Input Voltage(V) AC85-265V
Lamp Power(W) 130
Lamp Luminous Flux(lm) 14300
Lamp Luminous Efficiency(lm/w) 110
Color Temperature(CCT) Cool White
Working Temperature(℃) -25, 45
Working Lifetime(Hour) 50000
IP Rating IP67
Certification CCC, CE, CQC, EMC, LVD, PSE, VDE
Emitting Color White
Base Type Other, mcled
Place of Origin Zhejiang, China
Brand Name MCLED
Model Number MF01-130W

MCLED IP67 AC220V  MF01-130W LED Explosion Proof lamp hazardous area lighting ATEX  Zone1 and Zone 2
Product Description



MCLED IP67 AC220V MF01-130W LED Explosion Proof lamp hazardous area lighting ATEX Zone1 and Zone 2



Model

Item

MF01-130W



LED Consumption

130W



System Consumption

Power*1.1



Input Voltage

85-265V



Working Power Frequency  Range

50Hz/60Hz



Power Factor

 >0.95



Total Harmonic Distortion

 <20%



Working Environment

working temperature:  -25℃-45℃

Woking Humidity:0-100%



Average Temperature in 24 hrs

 <35°



Surface Highest Temperature

<60°



Junction Temperature(TJ)

 <70°



Lamp Luminous Efficacy(Lm/W)

>110lm/w



LED Initial Flux (Lm)

 LED consumption*110lm/w



Lamp Efficiency(%)

 >90%



Color Temperature

 2700-7000K



Color Rendering Index(CRI)

>70



LED Life Span

 >50000



Protection Grade

 IP67



Lens Light Transmittance

 >90%



Beam Angle

                           60-120°



Net weight

 6.3kgs



Gross weight

 7.1kgs



Packing size

35.3*35.5*25cm







Note:Lens can be changed according to client's specific requirement.








Main products

 MCLED IP67 AC220V MF01-130W LED Explosion Proof lamp hazardous area lighting ATEX Zone1 and Zone 2

Wide applications

 MCLED IP67 AC220V MF01-130W LED Explosion Proof lamp hazardous area lighting ATEX Zone1 and Zone 2



 MCLED IP67 AC220V MF01-130W LED Explosion Proof lamp hazardous area lighting ATEX Zone1 and Zone 2

FAQ





Q1: What is your Ex Grade?



A: It is ExII2GIIC T6 Gb
MCLED IP67 AC220V MF01-130W LED Explosion Proof lamp hazardous area lighting ATEX Zone1 and Zone 2





Q2. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q3:Which brand of LED chip MCLED use?

A: Amercial bridgelux

Q4: Can we have the sample for testing?

A: Of course the samples are possible. But we will charge for it. However, if the quantity is more than 250pcs, we will return the sample charge to you.

Q5: How long we can get the sample.

A: The lead time for samples ia usually 3 days.
