MCLED Aluminum Energy-saving MF-TH-60W COB Bridgelux IP 67 LED Gas Station Explosion Proof Light ATEX

MCLED Aluminum Energy-saving MF-TH-60W COB Bridgelux IP 67 LED Gas Station Explosion Proof Light ATEX thumbnail-1
MCLED Aluminum Energy-saving MF-TH-60W COB Bridgelux IP 67 LED Gas Station Explosion Proof Light ATEX thumbnail-2
MCLED Aluminum Energy-saving MF-TH-60W COB Bridgelux IP 67 LED Gas Station Explosion Proof Light ATEX thumbnail-3
MCLED Aluminum Energy-saving MF-TH-60W COB Bridgelux IP 67 LED Gas Station Explosion Proof Light ATEX photo-1
MCLED Aluminum Energy-saving MF-TH-60W COB Bridgelux IP 67 LED Gas Station Explosion Proof Light ATEX photo-2
MCLED Aluminum Energy-saving MF-TH-60W COB Bridgelux IP 67 LED Gas Station Explosion Proof Light ATEX photo-3
US$ 130 - 135 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Bridgelux
Input Voltage(V):
AC85-265V
Lamp Power(W):
120
Contact Supplier Request Quote Chat Now
Zhejiang Mingchuang Optoelectronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Bridgelux
Input Voltage(V) AC85-265V
Lamp Power(W) 120
Lamp Luminous Flux(lm) 6600
Lamp Luminous Efficiency(lm/w) 110
Color Temperature(CCT) Other, 2700-7000K
Working Temperature(℃) -25, 45
Working Lifetime(Hour) 50000
IP Rating IP67
Certification CCC, CE, CQC, EMC, LVD, PSE, VDE
Emitting Color Cold White
Base Type Other, Round
Place of Origin Zhejiang, China
Brand Name MCLED
Model Number MF-TH-60W
MCLED aluminum energy-saving MF-TH-60W COB Bridgelux IP 67 LED Gas Station Explosion Proof light ATEX
Product Description

MCLED aluminum energy-saving MF-TH-60W COB Bridgelux IP 67 LED Gas Station Explosion Proof light ATEX

MCLED aluminum energy-saving MF-TH-60W COB Bridgelux IP 67 LED Gas Station Explosion Proof light ATEXMCLED aluminum energy-saving MF-TH-60W COB Bridgelux IP 67 LED Gas Station Explosion Proof light ATEX



Model

Item

MF-TH-60W



LED Consumption

60W



System Consumption

Power*1.1



Input Voltage

85-265V



Working Power Frequency  Range

50Hz/60Hz



Power Factor

 >0.95



Total Harmonic Distortion

 <20%



Working Environment

working temperature:  -25℃-45℃

Woking Humidity:0-100%



Average Temperature in 24 hrs

 <35°



Surface Highest Temperature

<60°



Junction Temperature(TJ)

 <70°



Lamp Luminous Efficacy(Lm/W)

>110lm/w



LED Initial Flux (Lm)

 LED consumption*110lm/w



Lamp Efficiency(%)

 >90%



Color Temperature

 2700-7000K



Color Rendering Index(CRI)

>70



LED Life Span

 >50000



Protection Grade

 IP67



Lens Light Transmittance

 >90%



Beam Angle

                           60-120°



Net weight

 6.3kgs



Gross weight

7.5 kgs



Packing size

31*31*26cm







Note:Lens can be changed according to client's specific requirement.




Main products

 MCLED aluminum energy-saving MF-TH-60W COB Bridgelux IP 67 LED Gas Station Explosion Proof light ATEX

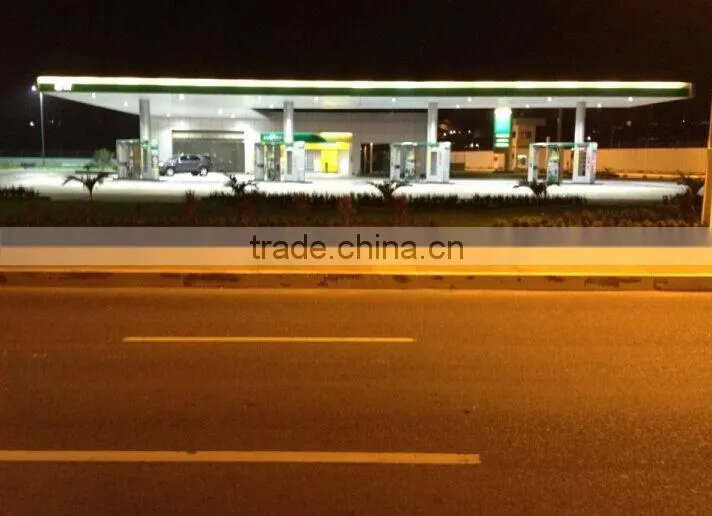

Wide applications

 MCLED aluminum energy-saving MF-TH-60W COB Bridgelux IP 67 LED Gas Station Explosion Proof light ATEX

MCLED aluminum energy-saving MF-TH-60W COB Bridgelux IP 67 LED Gas Station Explosion Proof light ATEX

 MCLED aluminum energy-saving MF-TH-60W COB Bridgelux IP 67 LED Gas Station Explosion Proof light ATEX

FAQ





Q1: What is your Ex Grade?



A: It is ExII2GIIC T6 Gb
MCLED aluminum energy-saving MF-TH-60W COB Bridgelux IP 67 LED Gas Station Explosion Proof light ATEX





Q2. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q3:Which brand of LED chip MCLED use?

A: Amercial bridgelux

Q4: Can we have the sample for testing?

A: Of course the samples are possible. But we will charge for it. However, if the quantity is more than 250pcs, we will return the sample charge to you.

Q5: How long we can get the sample.

A: The lead time for samples ia usually 3 days.
