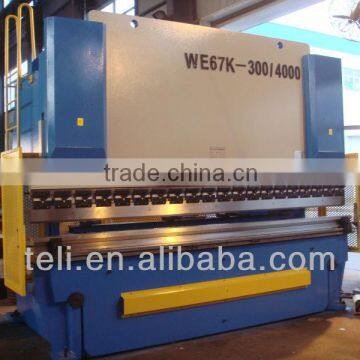

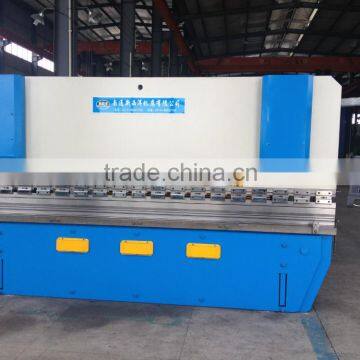

Help CenterWC67Y Series Press Brake Tooling
Related Products
-
Used Sheet Metal Press BrakeUS$ 50,500 - 60,000MOQ: 1 Piece -
WC67Y Series Goose Neck Press Brake ToolingUS$ 50,000 - 60,000MOQ: 1 Piece
-
WC67Y Series Press Brake PriceUS$ 50,000 - 60,000MOQ: 1 Piece
-
WC67Y Series Manual Press Brake MachineUS$ 50,000 - 60,000MOQ: 1 Piece
-
WC67Y Series Hydraulic Press Brake ToolingUS$ 50,000 - 60,000MOQ: 1 Piece
1. Steel-weldes construction,bibration to eliminate stress,with high strengh and good rigidity.
2. Hydraulic topdrive,steadiness and reliability.Mec hanical stop,steel torsion bar to maintain
sychronization,high precision.

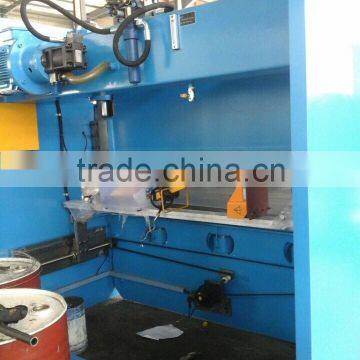

3. Motorized adjusting device of backgauge and rams stroke,fine adjusting by handwheel,num
erical display.
4. Deflection compensation unit installed on the top die.Manual crowned bottom die holder is
adopted for the machine above 250ton slength4000mm Length.
5. Travel limit protection.Full machine guarding with safety interlocke
No | Name | Data | Unit | Remarks | |
1 | Nominal pressure | 1600 | KN |
| |
2 | Length of working table | 3200 | mm |
| |
3 | Plate strength | ≤450 | N/mm2 |
| |
4 | The distance of column | 2600 | mm |
| |
5 | Ram stroke | 180 | mm |
| |
6 | Max opening height | 455 | mm |
| |
7 | Depth of throat | 320 | mm |
| |
8 |
Ram speed | Free | 60 | mm |
|
Running | 7 | mm |
| ||
Return back | 70 | mm |
| ||
9 | Main | Type | Y160L-4 B6 |
| |
Power | 11 | KW |
| ||
Speed | 1440 | rpm |
| ||
10 | Max pressure of system | 26 | Mpa |
| |
11 | Axial pump | Type | 25MCY14-1B |
| |
Speed | 25 | L/min |
| ||
Pressure | 31.5 | Mpa |
| ||
12 | Out size | Length | 3300 | mm |
|
Width | 1700 | mm |
| ||
Height | 2500 | mm |
| ||
13 | Weight | 10500 | kg |
| |
Performance:
3-1 All steel welded structure, vibrating treatment of aging for removal of internal
stress with high strength and good rigidity.
3-2 Electrohydraulic synchronization of mechanical limit stopper balance with high
precision.
3-3 Integrated hydraulic transmission system, large range of speed regulation to
transmission of the sliding block, stable and reliable performance.
3-4 Rear stopper and the sliding block have electrical adjustment for their stroke
with manual fine tuning and digital indication.
3-5 Adjustment mechanism of sliding block independent from oil cylinder assembly
to enhance sealing effect upper mold is fitted with titling warp offset mechanism
Usage
The hydraulic press brake can be applied to boiler tank, air conditioning channels, sheet metal cover, cone making and other aluminum and steel fabrication, marine and ship building, pressure vassals and wind mills.
