Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > WC67Y Series Goose Neck Press Brake Tooling

WC67Y Series Goose Neck Press Brake Tooling

Name: WC67Y Series Goose Neck Press Brake Tooling
Brand: haiwei
SKU: 100729477

WC67Y Series Goose Neck Press Brake Tooling thumbnail-1

WC67Y Series Goose Neck Press Brake Tooling photo-1

US$ 50,000 - 60,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

haiwei

Contact Supplier Request Quote Chat Now

Nantong Teli Forming Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name haiwei

Model Number WE67K-300/4000

Machine Type Press Brake

Raw Material Sheet / Plate Rolling

Material / Metal Processed Stainless Steel

Power Hydraulic

Automation Automatic

Extra Services End Forming

Certification ISO 9001:2000

After-sales Service Provided Engineers available to service machinery overseas

Specifications

goose neck press brake tooling
1,standard top and down dies
2,Atos valves/siemens parts
3,DA41 cnc system

goose neck press brake tooling

No	Name		Data	Unit	Remarks
1	Nominal pressure		3000	KN
2	Length of working table		4000	mm
3	Plate strength		≤450	N/mm2
4	The distance of column		3200	mm
5	Ram stroke		250	mm
6	Max opening height		515	mm
8	Depth of throat		400
8	Ram speed	Free	60	mm
		Running	8	mm
		Return back	60	mm
9	Main	Type	Y200L12-6 B5
		Power	22	KW
		Speed	970	rpm
10	Max pressure of system		25	Mpa
11	Axial pump	Type	63MCY14-1B
		Speed	63	L/min
		Pressure	31.5	Mpa
12	Out size	Length	4250	mm
		Width	2300	mm
		Height	4200	mm
13	Weight		22500	kg

Performance:

3-1 All steel welded structure, vibrating treatment of aging for removal of internal stress with high strength and good rigidity.

3-2 Electro-hydraulic synchronization of mechanical limit stopper balance with high precision.

3-3 Integrated hydraulic transmission system, large range of speed regulation to transmission of the sliding block, stable and reliable performance.

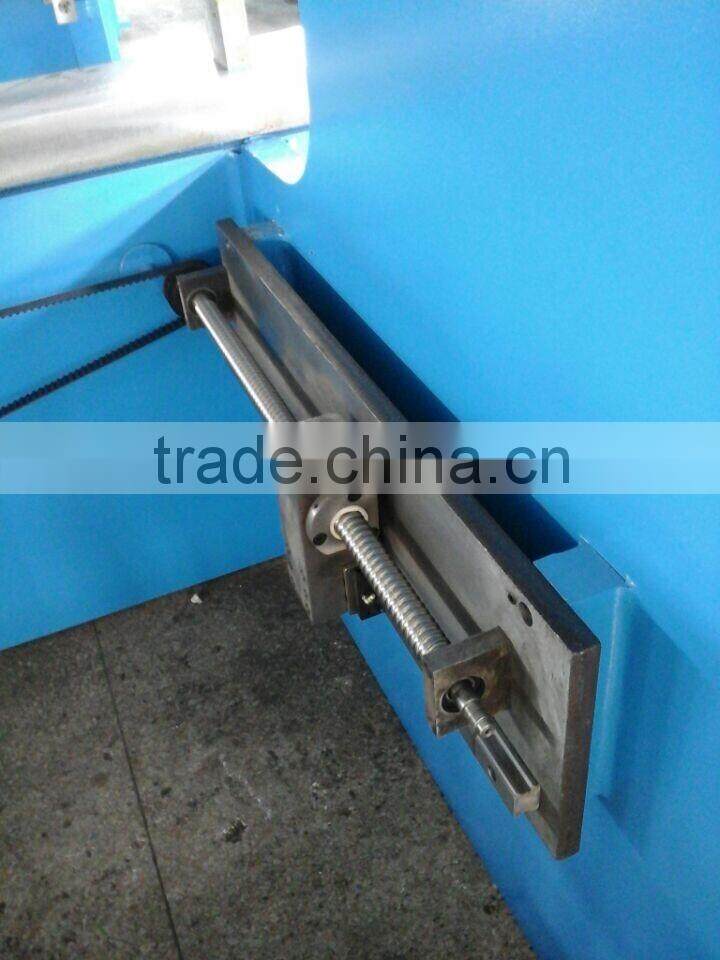

3-4 Rear stopper and the sliding block have electrical adjustment for their stroke with manual fine tuning and digital indication.

3-5 Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with titling warp offset mechanism.
