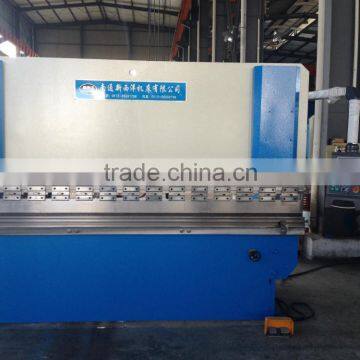

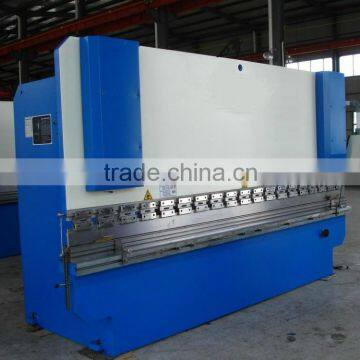

Help CenterUsed Sheet Metal Press Brake
Related Products
-
WC67Y Series Goose Neck Press Brake ToolingUS$ 50,000 - 60,000MOQ: 1 Piece -
WC67Y Series Press Brake PriceUS$ 50,000 - 60,000MOQ: 1 Piece
-
WC67Y Series Manual Press Brake MachineUS$ 50,000 - 60,000MOQ: 1 Piece
-
WC67Y Series Hydraulic Press Brake ToolingUS$ 50,000 - 60,000MOQ: 1 Piece
-
WC67Y Series Cnc Hydraulic Press Brake for SaleUS$ 85,000 - 120,000MOQ: 1 Piece
This hydraulic press brakes proved the ideal solution for all general bending application.
It uses the proven torsion bar synchronization system, coupled with positive stop nuts in the cylinder to ensure accurate, consistent bends
Feature and Advantages:
(1). This machine adopts hydraulic electric control, sliding block stroke can be adjusted, and have some fixed, semi-automatic, automatic movements such as norm, using dynamic specification can easily test and adjustment
(2). lift bending machine design, double oil cylinder work at the same time, balance, convenient operation, safety
(3). The dead point have confirmed when rolling function, ensure that the workpiece precision
(4). Under the condition of the relevant national standards, bending Angle precision of plus or minus 45 '. (refer to standard JB/T22572-1999)
(5). A slow decline control function, the operator can better control the workpiece
WC67K-600/6000 hydraulic press brake
technical data:
No | Name | Data | Unit | Remarks | |
1 | Nominal pressure | 3000 | KN |
| |
2 | Length of working table | 4000 | mm |
| |
3 | Plate strength | ≤450 | N/mm2 |
| |
4 | The distance of column | 3200 | mm |
| |
5 | Ram stroke | 250 | mm |
| |
6 | Max opening height | 515 | mm |
| |
8 | Depth of throat | 400 |
|
| |
8 |
Ram speed | Free | 60 | mm |
|
Running | 8 | mm |
| ||
Return back | 60 | mm |
| ||
9 | Main | Type | Y200L12-6 B5 |
| |
Power | 22 | KW |
| ||
Speed | 970 | rpm |
| ||
10 | Max pressure of system | 25 | Mpa |
| |
11 | Axial pump | Type | 63MCY14-1B |
| |
Speed | 63 | L/min |
| ||
Pressure | 31.5 | Mpa |
| ||
12 | Out size | Length | 4250 | mm |
|
Width | 2300 | mm |
| ||
Height | 4200 | mm |
| ||
13 | Weight | 22500 | kg |
| |
14 | Machine DA52 CNC system price | USD | FOB shanghai | ||
Usage
It can be applied to boiler tank, air conditioning channels, sheet metal cover, cone making and other aluminum and steel fabrication, marine and ship building, pressure vassals and wind mills.
