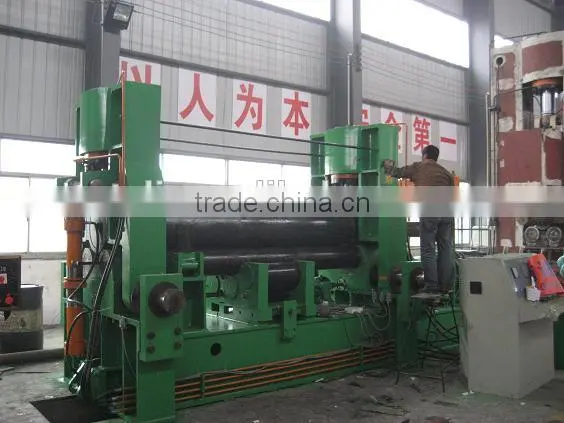

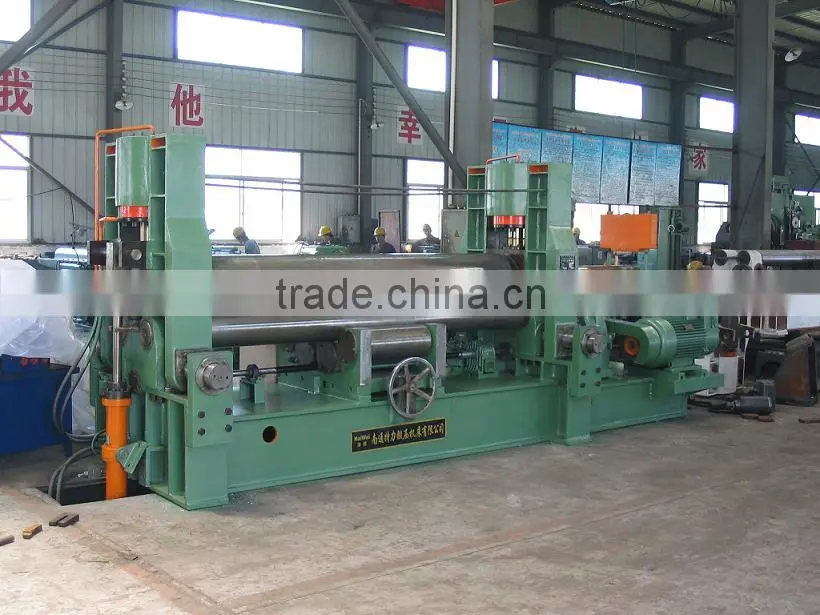

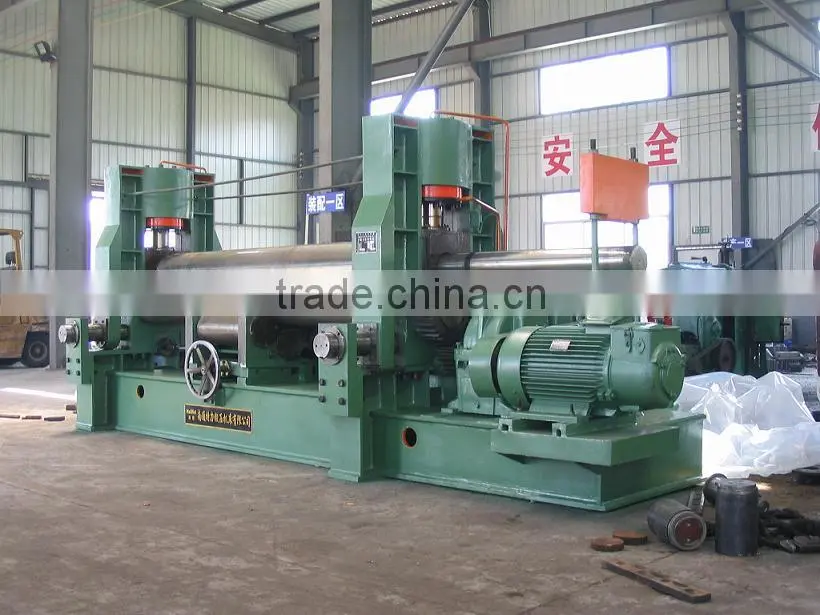

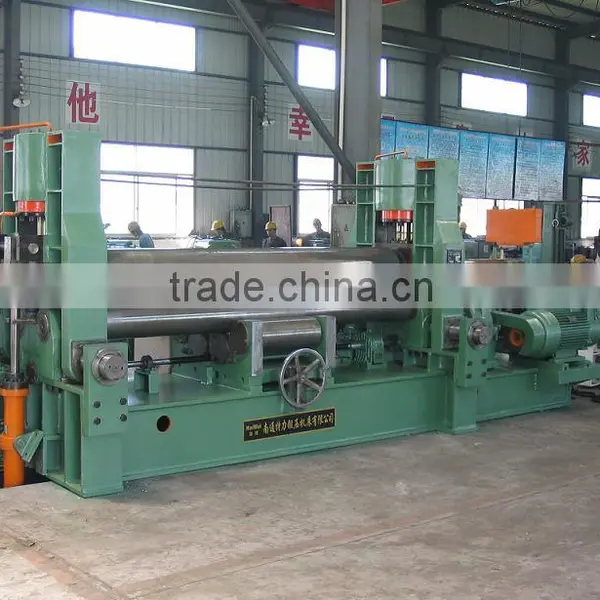

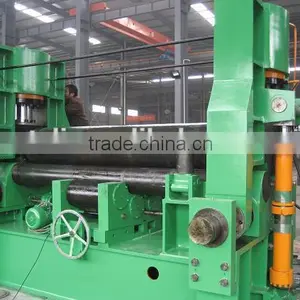

Help CenterIron Sheet Rolling Machine
Related Products
technical data of W11s-25*2500
Detailed Product Description
Upper roller adding pressure 230tons
Max width of roll board 2500mm
The length of working rolls 2550mm
Max thickness of plate 25mm(carbon steel σs≤245Mpa)
Max thickness of plate pre-bending 20mm(carbon steel σs≤245Mpa)
Up roll diameter Φ800mm
Down roll diameter Φ380mm
Distance between two down rolls 360mm
Support rolls : one group
Drive speed about 4.0m/min
Hydraulic motor 7.5KW
Main motor 22KW
Moving motor 4KW
Machine weight 14tons Instruction

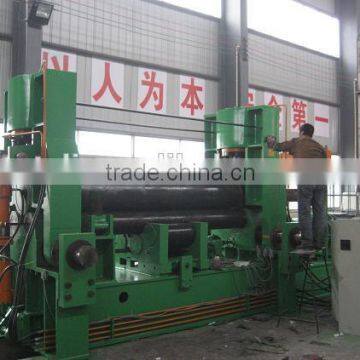

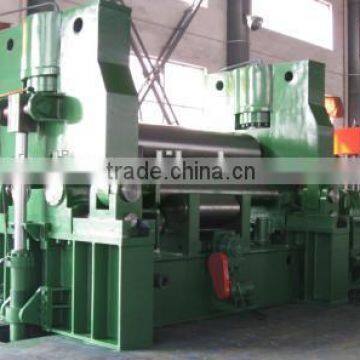

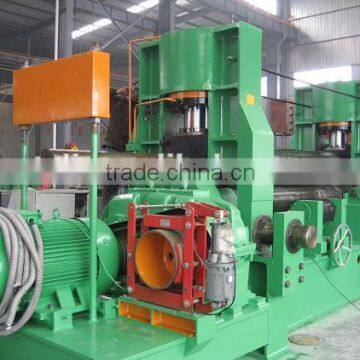

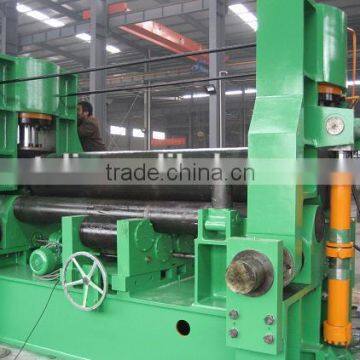

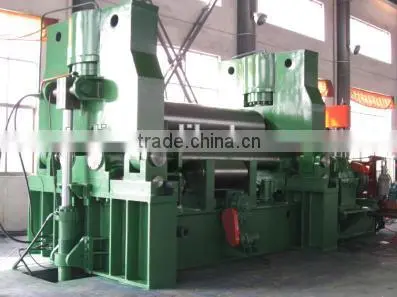

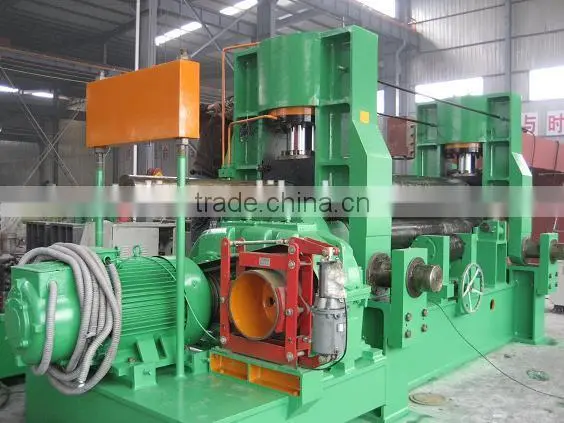

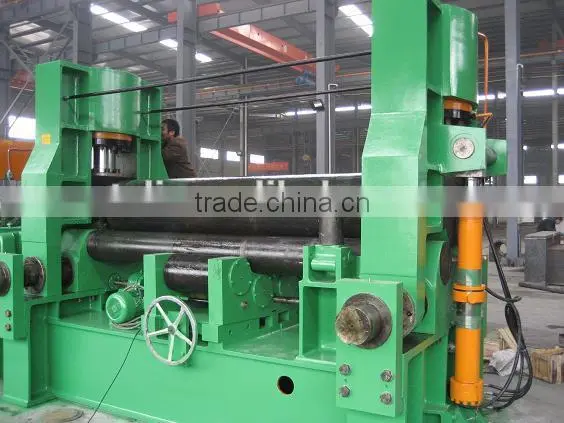

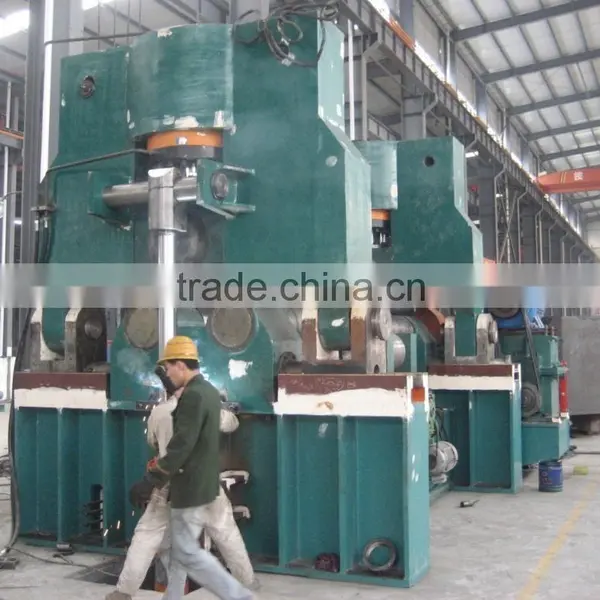

This machine used to make the steel plate into barrel shapeCircular shapeConical sharp, etc.
The upper roller can move vertically as well as horizontally, it can finish the pre-bending work and coiling work at the same machine.
The upper roller is drum-type design, so it has the anti-deformation function. There is equipped the support rollers under the lower rollers it can help to coil the high precision products.
The lower rollers are fixed symmetrically deployed relatively to upper roller, mechanical drive is employed for driving lower rollers. Upper roller ascends or descends at the central symmetric location of the lower rollers; the ascending and descending are hydraulic driven. Upper roller moves to the left or right position to prepare for pre-bending work, the shift position is controlled by the limited switches. The upper roller movement is PLC controlled and LCD display is employed for displacement.
Hydraulic drive is employed for dumping and resetting of the reverse head unit.
Moving control is employed for the control system; you can operation the machine at any position around the machine
CNC control system: |
The hydraulic plate rolling machine is controlled in entry-level by a user-friendly CNC, to roll parts in automatic mode. More powerful (the most advanced in the industry, until those selected by NASA) are self-programmable, without the need of experienced operators.
The hydraulic plate rolling machine is equipped with HMI (human machine interface), so it is access to intelligent operation. It is self-compensating, single operate, high efficiency, safe and convenient.
There are many models of this hydraulic plate rolling machine for choice, including economic numerical control model, TC computerized numerical control and so on.
