Rolling Pipe Bending Machine

 Detailed Product Description

W11s-60*3000 Roll bending machine

Parameter:

main technical data:

Upper roller adding pressure           750tons

Max width of roll board               3000mm

The length of working rolls              3100mm

Max thickness of plate             60mm(carbon steel σs≤245Mpa)

Max thickness of plate pre-bending    50mm(carbon steel σs≤245Mpa)

Up roll diameter                    Φ680mm

Down roll diameter                 Φ380mm

Distance between two down rolls      700mm

Support rolls :                        one group

Drive speed                        about 4.0m/min

Hydraulic motor                     30KW

Main motor                          75KW

Moving motor                        15KW

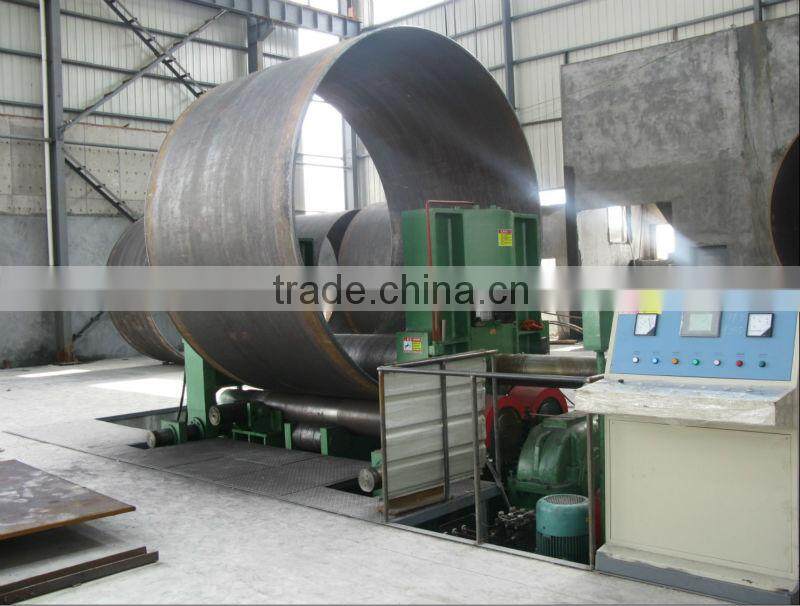

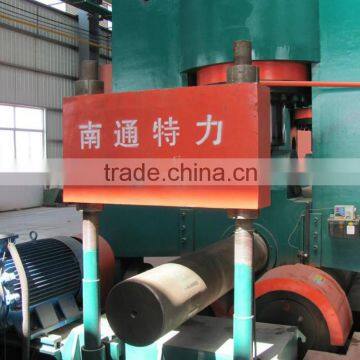

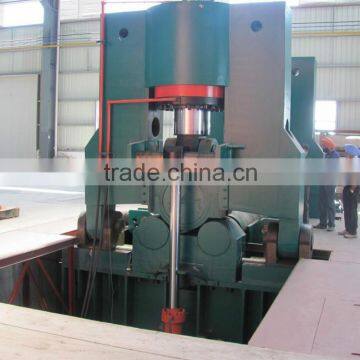

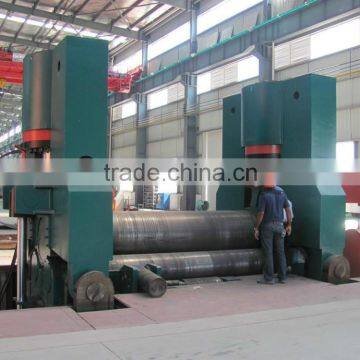

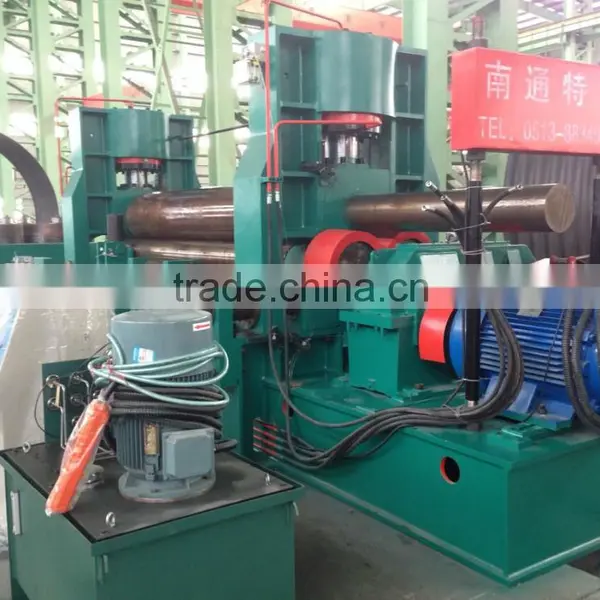

This machine used to make the steel plate into barrel shapeCircular shapeConical sharp, etc.

The upper roller can move vertically as well as horizontally, it can finish the pre-bending work and coiling work at the same machine.

The upper roller is drum-type design, so it has the anti-deformation function. There is equipped the support rollers under the lower rollers it can help to coil the high precision products.

The lower rollers are fixed symmetrically deployed relatively to upper roller, mechanical drive is employed for driving lower rollers. Upper roller ascends or descends at the central symmetric location of the lower rollers; the ascending and descending are hydraulic driven. Upper roller moves to the left or right position to prepare for pre-bending work, the shift position is controlled by the limited switches. The upper roller movement is PLC controlled and LCD display is employed for displacement.

Hydraulic drive is employed for dumping and resetting of the reverse head unit.

Moving control is employed for the control system; you can operation the machine at any position around the machine.

rom the indicator setting on the control box.

4, inspection

   JB/T8796-1998 Standard

5,delivery time

60 days

6, Serve

Guarantee one year and offer serve for ever.
