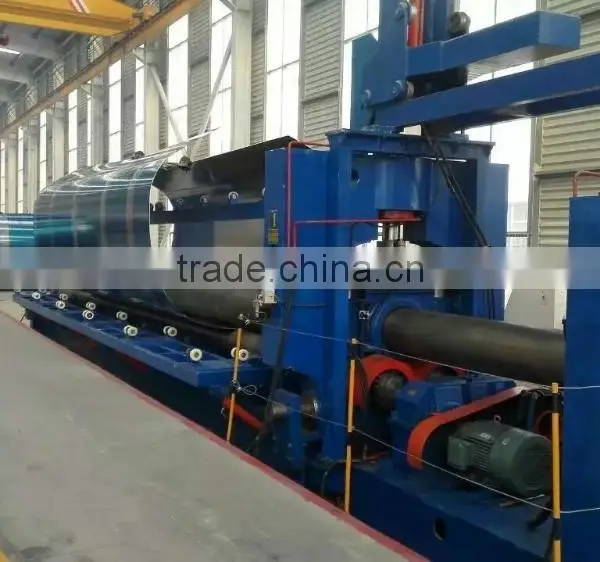

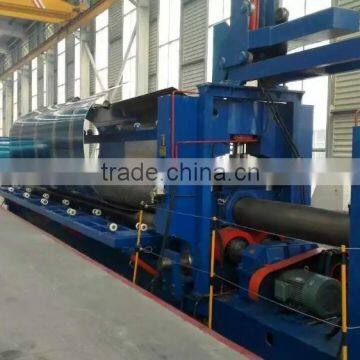

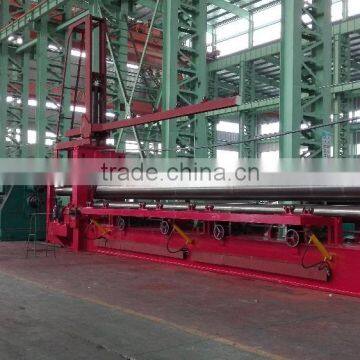

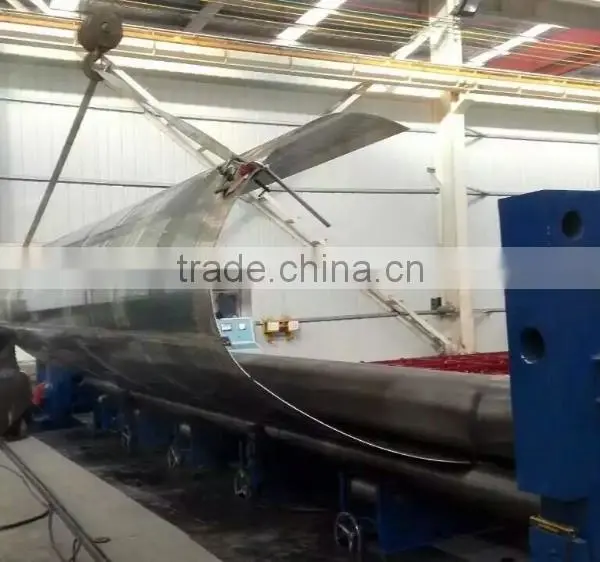

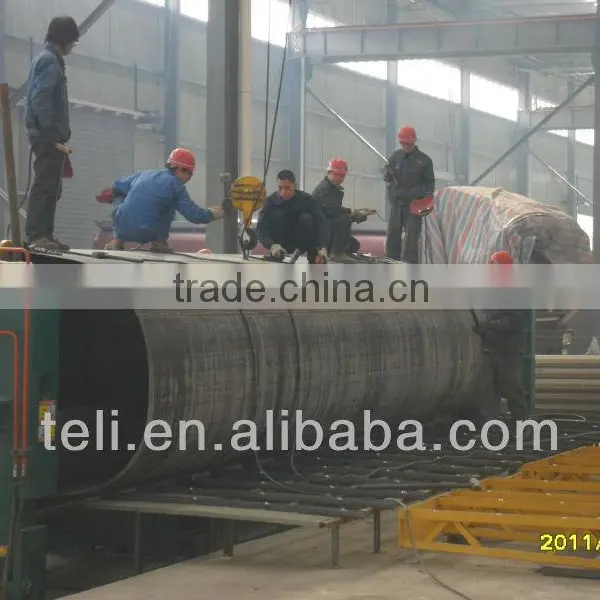

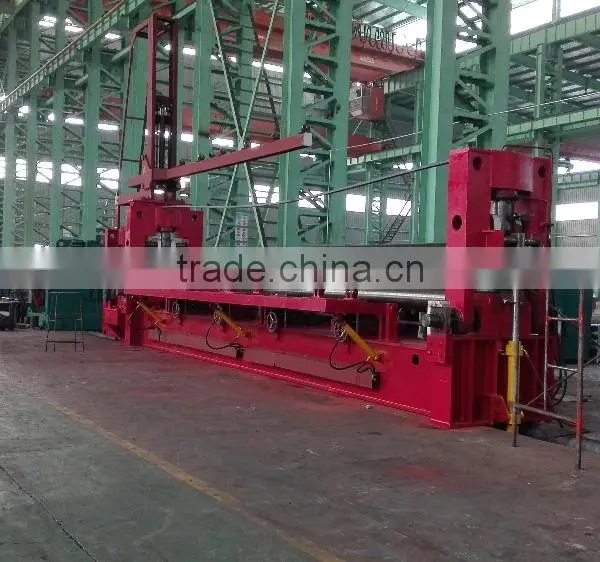

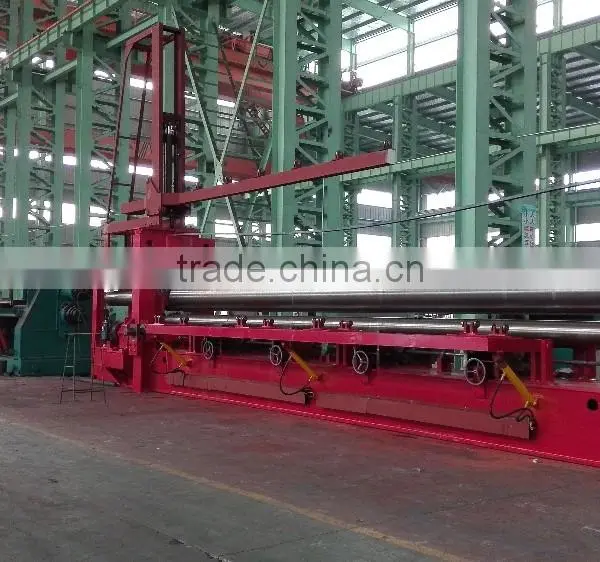

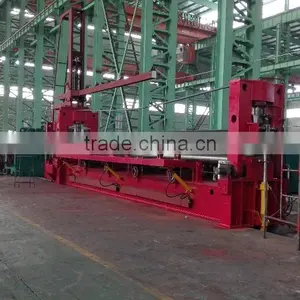

CNC Plate Bending Machine

   2, main technical data of W11s-12*6000

Upper roller adding pressure           270tons

Max width of roll board               6000mm

The length of working rolls              6100mm

Max thickness of plate ends              10mm

Min diameter of bending circle           1600mm

Up roll diameter                    Φ490mm

Down roll diameter                 Φ280mm

Distance between two down rolls       245mm

Drive speed                        about 4.0m/min

Max capacity of coiled board :          σs≤245Mpa

Hydraulic motor                     11KW

Main motor                           37KW

Moving motor                         15KW

Lifting motor                          7.5KW

Remarks: 1, quantity of remain catheter≤2.9 times of plate thickness

        2,bending precision, roundness, linearity, ends surface error all less than 3mm/M

3,structure and main parts

  This equipment composed of main machine part, hydraulic system , electricity control system.

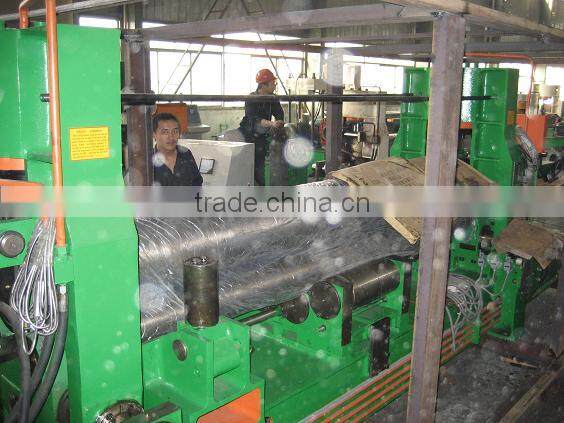

3-1 main machine part composed of top rolls , down rolls and level motion device support rolls device , tuning device , balance device, lubricate device , left and right work frame and bottom plate.

1) upper rolls device composed of main cylinder, upper bearing pedestal, upper rolls, double self-aligning bearing .two cylinders provide the pressure for upper roll bending , main cylinder working pressure is 20 Mpa ,max pressure of upper roll multiply 0.8 times to compensate for pre-bending. Upper roll two ends fit with double self-aligning bearing to reduce the friction and motor power. The material of upper roll is 42CrMo , heat treatment is HB220-280.

2) down roll and level motion device.

The material of down roll is 42CrMo, heat treatment is HB220-280. it composed of down of roll, down roll bearing pedestal, down roll input gear, down roll, glide bearing. Down bearing adopt SF-2 oil glide bearing.

Level motion motor supply the power, through the strap drive to CWU worm wheel and pole speed reducer. Upper roll level motion drove by worm wheel and pole to finish bending in dissymmetry form.

3) support device

Composed of sloping block device, support device, support rolls bearing pedestal, support lifting device, support rolls can adjust up and down. The adjustment depend on plate speciation. The material of support is 45# heat treat HB 217-240, it made up in helix sharp to protect the surface.

4) main drive device

It composed of motor, hard gear speed reducer, output gear, main motor can tuning in two direction and provide bending pitch of strand.

5) tuning device

Composed of ram, bearing, tuning cylinder

6) balance device

Composed of balance compact, screw

7) lubricate device composed of lubricate pipe and lubricate pipe attachment, adopted GB7323-1994 NO 2 lithium grease.

3-2 hydraulic system

Composed of Y series motor, gear pump , valves , oil tank, pipe and so on.

Max pressure is 20 Mpa , testing pressure is 24 Mpa , pressure adjusted by overflow valve, system working pressure 0-19 MPa , normal pressure is 15Mpa . the valves adopted from Taiwan.

3-3 electricity system

Composed of electrical box, operation table , manual button . the power is 380V50HZ adopted PLC control system code with longevity easily operate. Whole bending process can read from the indicator setting on the control box.

4, inspection

   JB/T8796-1998 Standard
