acrylic laser engraving cutting machine/wood furniture laser cutting machine price/baseball bat laser engraving machine factory
acrylic laser engraving cuttingmachine
Performance Index:

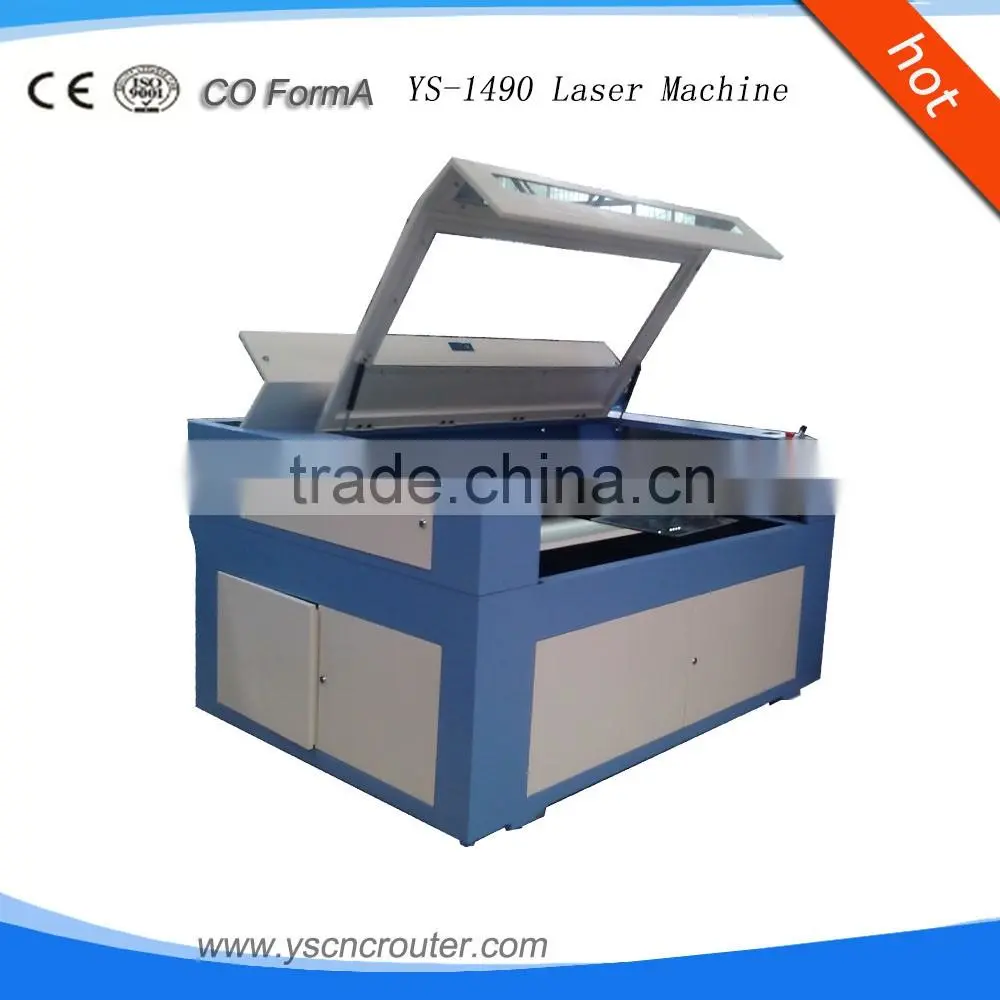

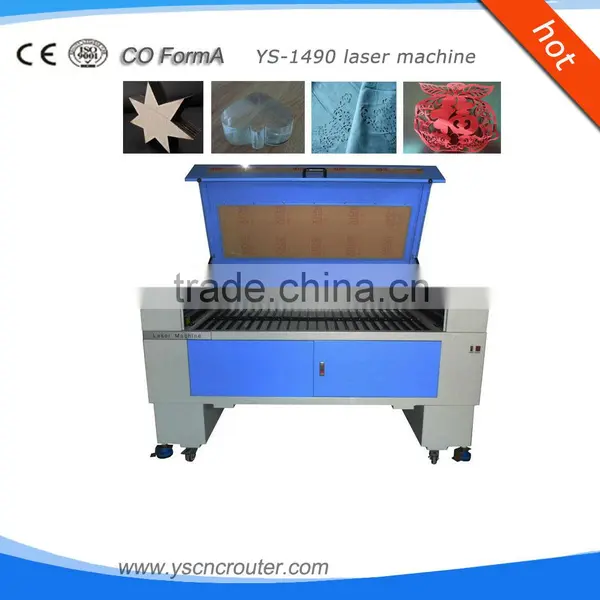

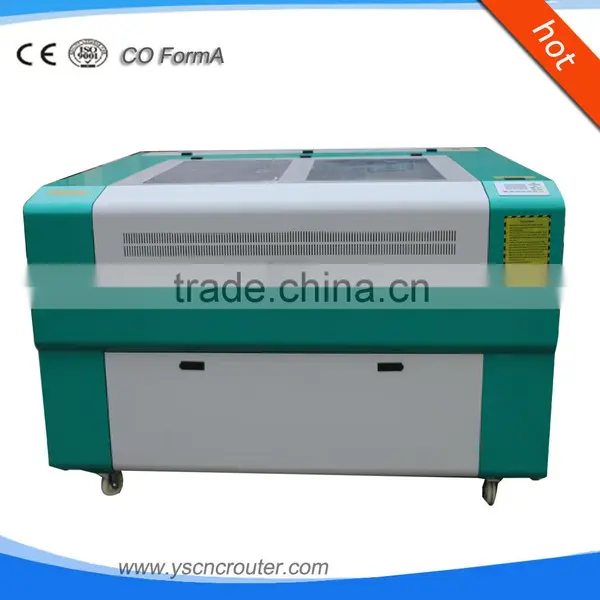

Model | YS-1490 laser engraving cutting machine |
Standard Laser power | 80w |
Optional Laser power | 60w, 100w,120W, 130W, 150W |
Engraving Area(mm) | 1400x900mm/ 55.11x35.43in. |
Laser type | CO2 Laser tube |
Cutting depth | Acrylic 0-20mm, depending on materials |
Cutting speed | 0-5000mm/min |
Resetting positioning accuracy | <0.01mm |
Maximum forming character | Figure/English: 1x 1mm |
Power supply | 220V±10% 50HZ or 110V±10% 60HZ |
Software supported | ArtCut, PhotoShop (Conversion output) CorelDraw, AutoCAD, Lasercut (Direct output) |
Main Graphic format supported | PLT/DXF/BMP/AI (Direct output) |
Optional part | Up and down table, rotary attachment, red dot pointer |
Water Cooling | Yes |
Max thickness of engraved object | 280mm |
Laser tube(life hours) | 3500-4000hours |
Gross power | 1600w |
Driving system | Stepper motor |
Recommend Consumable spares | Laser Tube, Lens and Mirror |
Equipment dimensions | 1960*1270*970mm |
Net weight/ Gross weight | 450KGS/ 560KGS |
Shipping dimension | 2060*1380*1200mm |
wood furniture laser cutting machine price Apply to industry and materials
Apply to industry and materials
advertisement signs and marks making, handicraft industry, crystal accessories, paper cutting, wood industry, printing industry, clothing and leather industry, etc.
This machine adopts the DSP data control technique, and incorporate design profile structure, which creates the durative, fast curve cutting function and optimize the shortest processing path function in the same field, so improves the working efficiency greatly.
2. It adopts the International standard linear guide rail, which makes machine running more smoothly and accurately.
3. High security. i. Detailed warning and instruction lable complied with CE; ii. Most advanced dual limit switch protection on XYZ axis, preventing the bump of laser head; iii. High quality water flow sensor to inspect water circulation in laser tube, which can protect the laser tube.
3. It adopts the most advanced focus method: dual red light positioner, which makes laser focus more easier, accurate and more personalized,no need any focusing tools.
3. It adopts up and down style by the step motor, which makes the motorized up and down working table steadier, smaller noise and faster speed and so on.
4. Front & Rear entry for long plate to pass through.
1.2 year for the whole machine.
2.Detailed manual and video to guide the uses how to use the machine and maintena
nce, also supply the specification settings for the speed and power to engrave or cut
various material.
3.Important parts like the control card, we need you send the broken one to us and
we reback you a new one in warranty period.
4.If you meet the problems, we can solve it with pictures, videos etc, communication
online/calling, if necessary, offer door-door service. But you should pay some fees like tickets etc.
1. Q:Are you a factory or trading company?
A:We are a manufacturer with export license
2. Q:How does your factory do regarding quality control?
A:"Quality is priority? JQ people always attach great importance toquality controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skillful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
3: Q::If we do not know how to use the machine,can you teach us?
A:Yes ,of course. We can offer you free training, and engineers available to service
machinery training overseas if you would like to offer them business expenditure.
4. Q:How about your after-sales service?
A:We offer professional and timely aftersale 24 hours online service via phone,Whatsapp, Skype or MSN.
Jinan Yishun CNC Machinery Co.,Ltd is a famous CNC equipment manufacturer
in China for 9 years history, with register money RMB 10000,000, mainly focus on CNCrouter producing, marketing and service. Realize the potential growth by supplying CNC processing equipments, service and customized solutions to the customers all over the world. Continuously create long-time value for customers.
