220kV Power Transformer

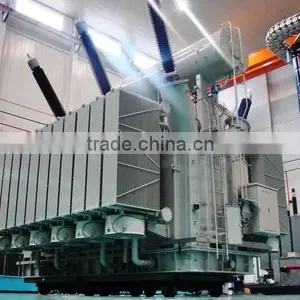

220kV Power Transformer thumbnail-1

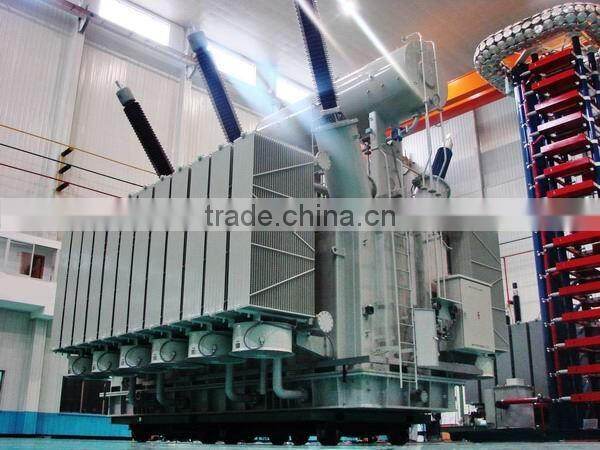

220kV Power Transformer photo-1
US$ 10,000 - 500,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
MEC
Model Number:
220kV
Contact Supplier Request Quote Chat Now
Liaoning Mec Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chinese Main Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name MEC
Model Number 220kV
Usage Power
Phase Three
Coil Structure Toroidal
Coil Number Other

220kV Power Transformer



The 220kV power transformers are used in power plant, substation and large-scale industrial enterprises etc.

Our transformers are designed and manufactured with the latest technology. The transformers are conforming to IEC, ANSI, BS and other international standards.

We offer customized solutions for satisfying your special requirements.



Our advantages:

Quality Assurance

--From the very beginning, MEC ensures quality in every step to achieve the best quality.

 Experience Sharing

--With more than 30 years’ experience in power industry, MEC brings you an optimized solution.

 Global Service

--Wherever you are, MEC global network will support and provide you with value.

 Quick Response

--In response to your needs without delay, MEC knows the value of your time.

220kV Power Transformer



Technical Parameters:

31500KVA~240000KVA THREE PHASE, THREE WINDING, ON-LOAD REGULATION

POWER TRANSFORMER

Rated
Capacity (kVA)

Rated Voltage

Connection
Symbol

Loss (kW)

No-load Current (%)

Power Distribution (%)

Short-Circuit
Impedance (%)

HV
(kV)

MV
(kV)

LV
(kV)

No-load

Load

31500

220±8
×1.25%

69
115
121

6.3
6.6
10.5
11
35
37
38.5

YNyn0
d11

35

154

0.77

100/100/100

100/50/100

100/100/50

HV-MV
12~14

HV-LV
22~24

MV-LV
7~9

40000

42

180

0.70

50000

48

214

0.63

63000

56

248

0.63

90000

10.5
11
35
37
38.5

74

333

0.56

120000

92

410

0.56

150000

108

487

0.49

180000

125

599

0.49

240000

154

741

0.45
