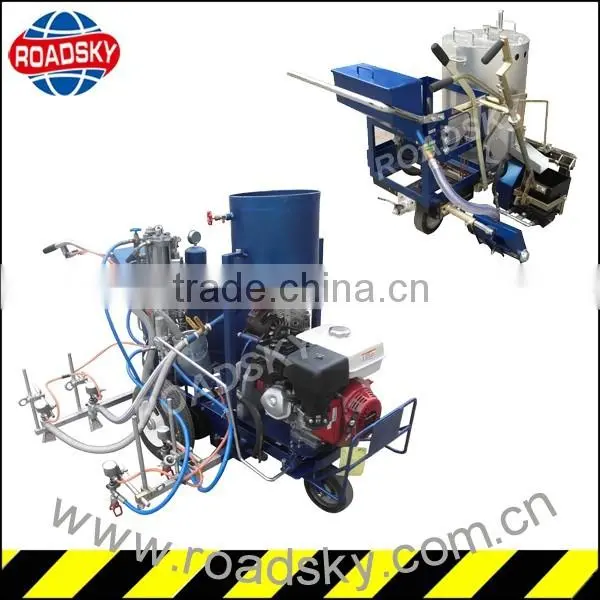

Manual Cold Varnish Index Line Painting Machine on sale

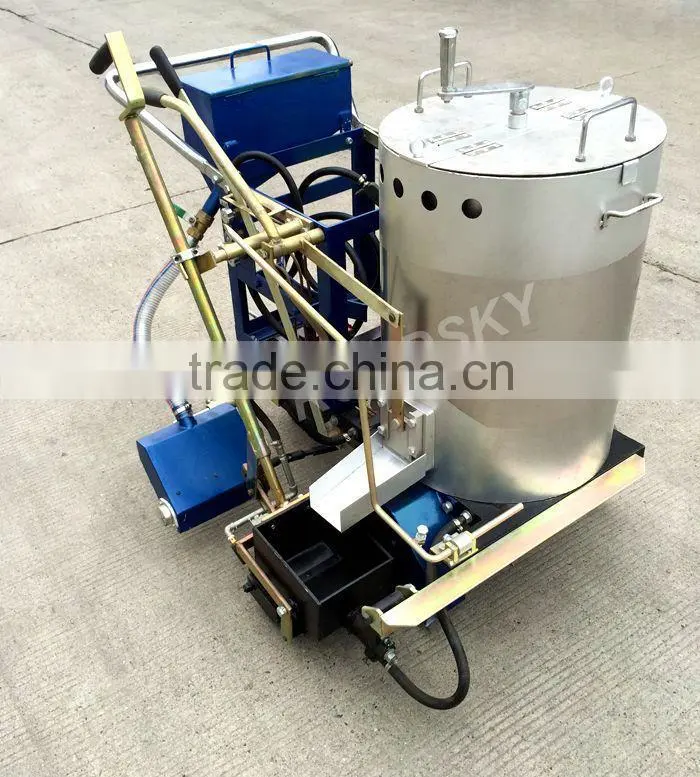

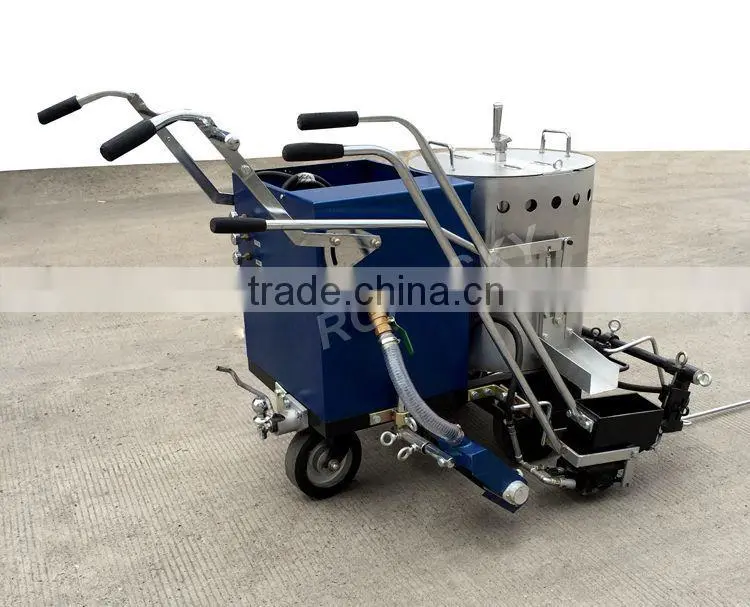

1.1 Hand Push Thermoplastic Road Marking Machine
Hand Push Thermoplastic Road Marking Machine is special-purpose equipment for road marking. It is used for highway, road axis, lane line, community, airport, etc. to mark all sorts of thermoplastic lines, such as straight line, dotted line, curve, oriented arrow, and letters.
Main Technical Specifications
Model | RS-1A | RS-1B |
Capacity of Paint Tank | 55L/100kg | 55L/100kg |
Capacity of Glass Beads Bin | 10kg | 10kg |
Dies | 50/80/100/120/150/180/200/230/250/300/400/450 mm | |
Size | 1420*900*1050 mm | 1200*800*1020 mm |
Net weight | 145kg | 120kg |
Heating Fuel | carry 10kg to15kg liquefied petroleum gas with one gas tank | |
Thickness of Bottom Line | 1-3 mm | |
Marking Speed | 500-1200 m/h | |

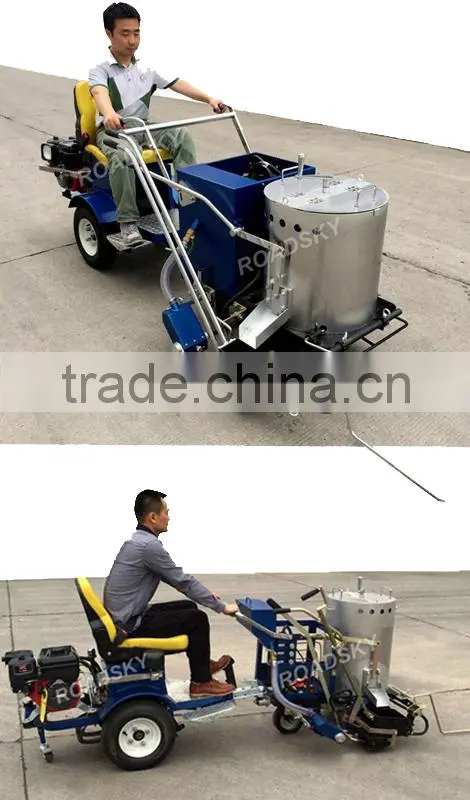

1.2 Driving Type Thermoplastic Road Marking machine
RS-1A and RS-1B Hand Push Thermoplastic Road Marking Machine can be connected with RS11 Booster Vehicle, so that you can drive the machine for road marking. It will save the manpower and enhance the working efficiency greatly.
We also supply Self-propelled/Convex thermoplastic
Road Marking machine if you are interested.
2. Cold Paint Road Marking Machine
2.1 Hand Push Cold Paint Road Marking Machine
RS5A and RS5B airless spraying road marking machines can be equipped with Glass Beads Dispenser so as to enhance the reflection and warning effect of cold lines. RS5A can be assembled either Drop by Gravity Glass Beads Dispenser or Airless Spraying Glass Beads Dispenser. RS5B can only be assembled with Drop by Gravity Glass Beads Dispenser due to its smaller compressor.

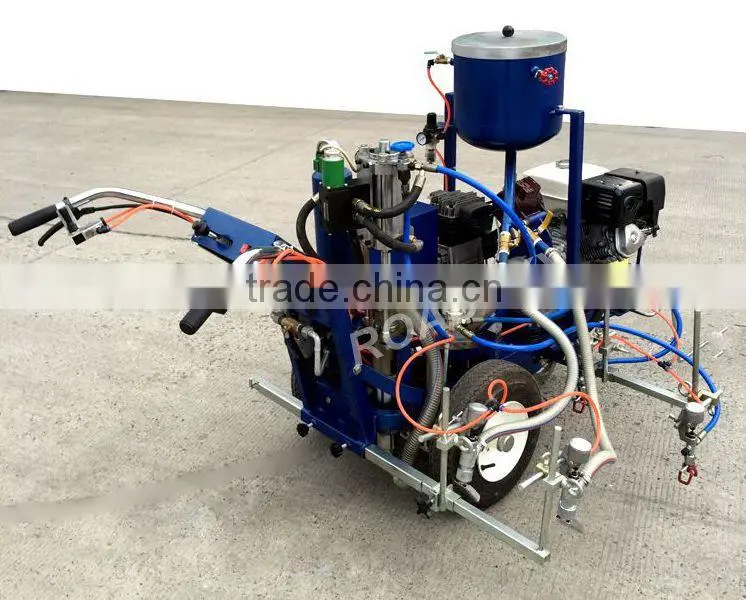

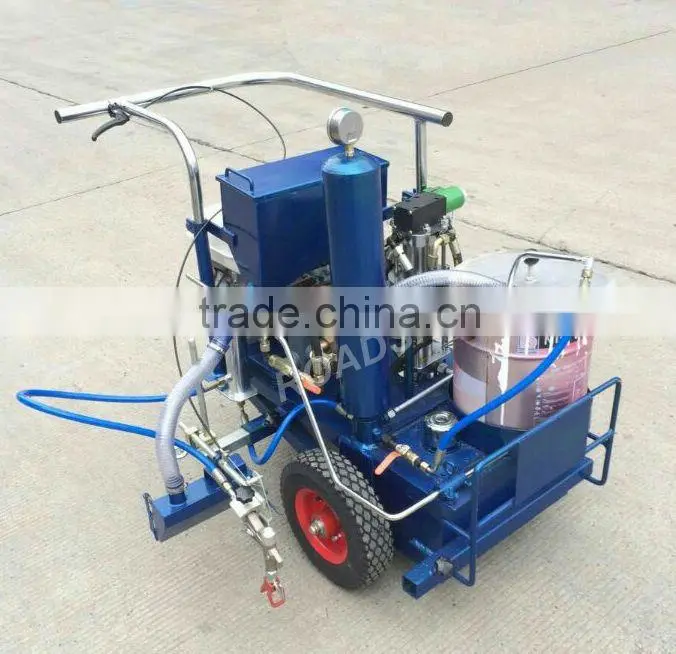

RS5A 18L Hand Push Cold Paint Marking Machine
Hand Push Cold Paint Road Marking Machine has the features of flexible operation,
small size, light weight, marking clear and full lines, spraying high adhesive force of paint
and a wide range of applications in marking and spraying.

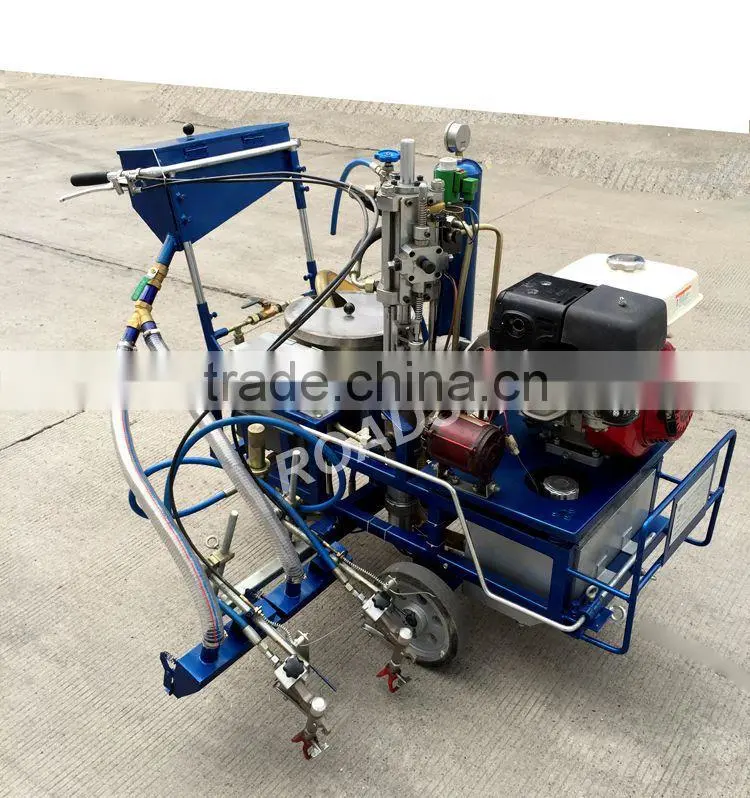

RS5B 6L Hand Push Cold Paint Road Marking Machine
Main Technical Specifications
Model | 18L Hand Push Cold Paint Road Marking Machine | 6L Hand Push Cold Paint Marking Machine |
Size (L×W×H) | 1450*1350*1150 mm | 1150*1000*1050 mm |
Net Weight | 200 kg | 155 kg |
Power | 9 HP Gasoline Engine | 5.5 HP Gasoline Engine |
Working Pressure | 10-18 Mpa | 10-18 Mpa |
Spraying Thickness | 0.2-0.6 mm | 0.2-0.6 mm |
Spraying Width | 50-300 mm | 50-300 mm (single gun) |
Spraying Flow Rate | 18 L/min | 6 L/min |

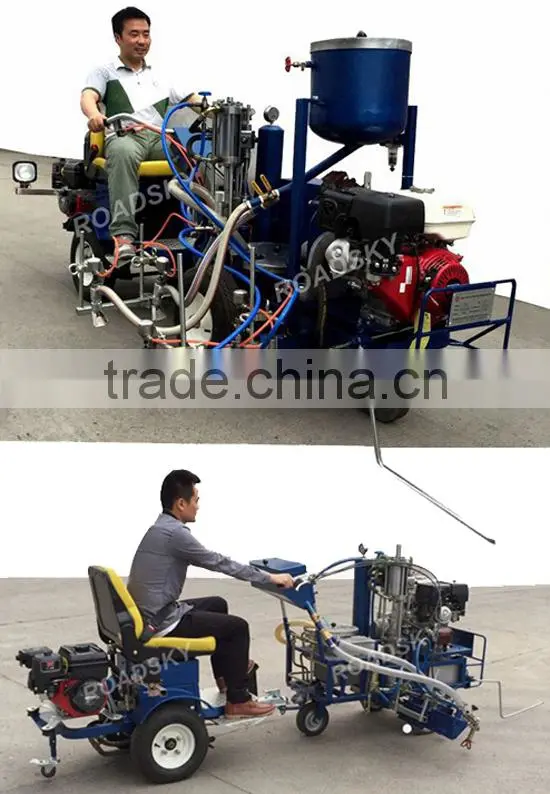

2.2 Driving Type Cold Paint Road Marking machine
Firstly you should start the engine, connect the towing hook, next release the brake.
Finally press the treadle which controls driving forward, then it will march forward.
By pressing the treadle which controls moving backward, then it will start moving backward.

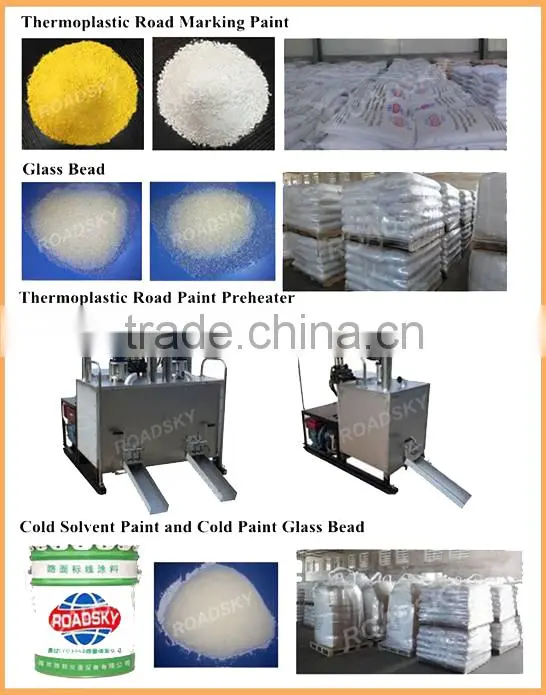

3. Related Products
All standards thermoplastic paint and glass bead(BS, AASHTO, CS and etc) or Cold Solvent Road Marking Paint can be manufactured as request.
Our Thermoplastic Paint Preheater is professional equipment for melting hot paint.
It has the advantage of large capacity, saves heating time, also greatly improves
stirring efficiency.

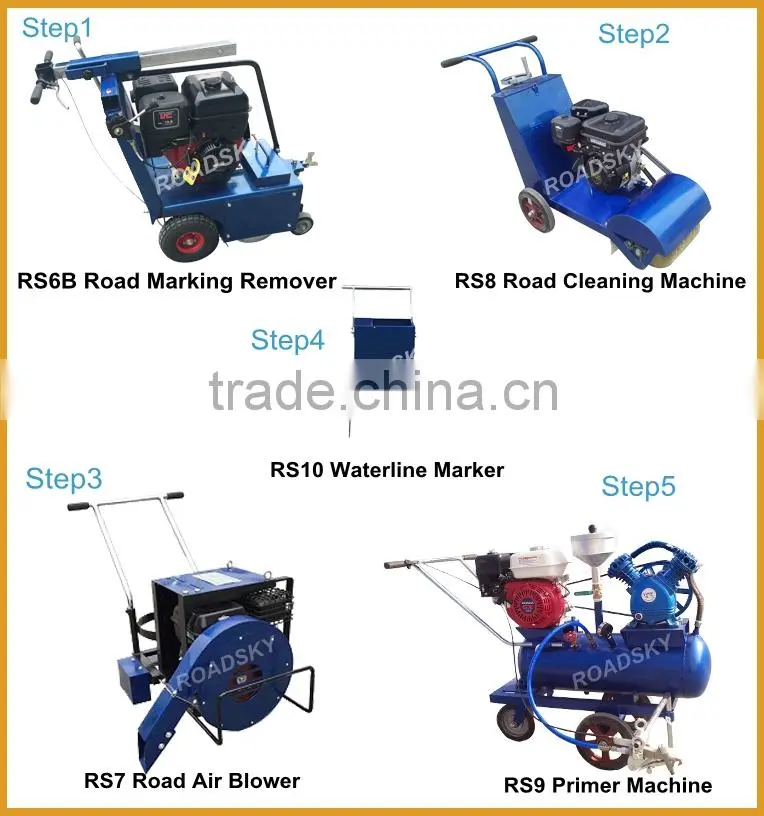

3.2 Auxiliary Road Marking Machines
