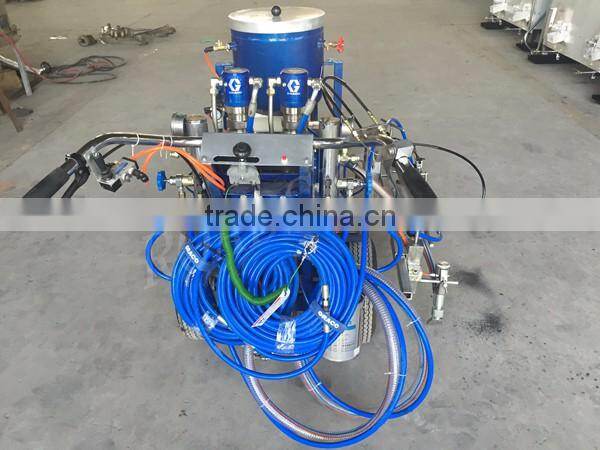

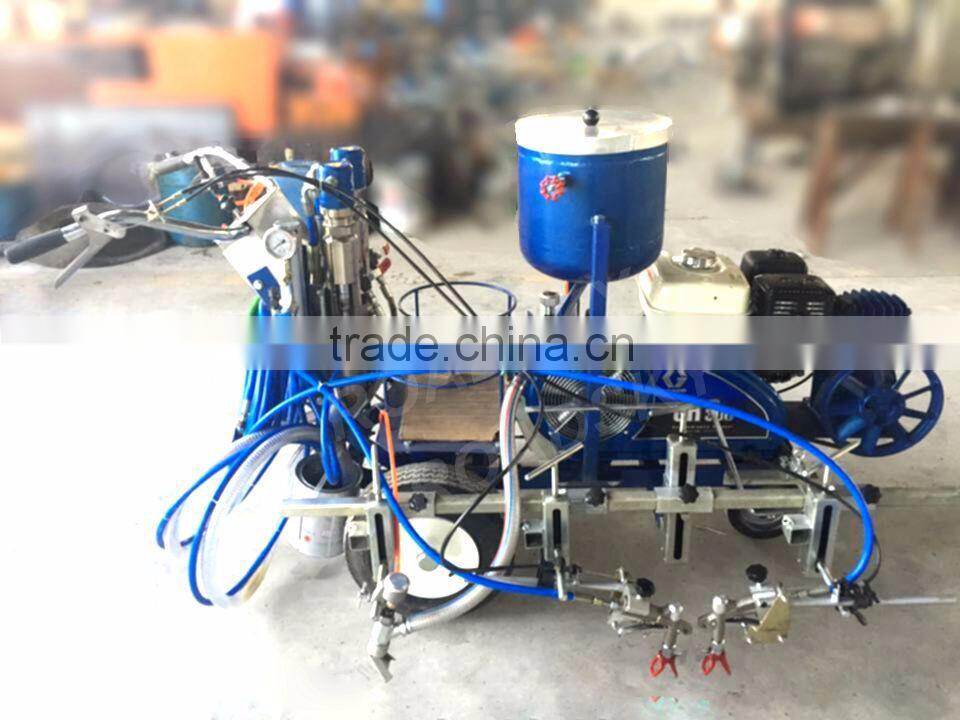

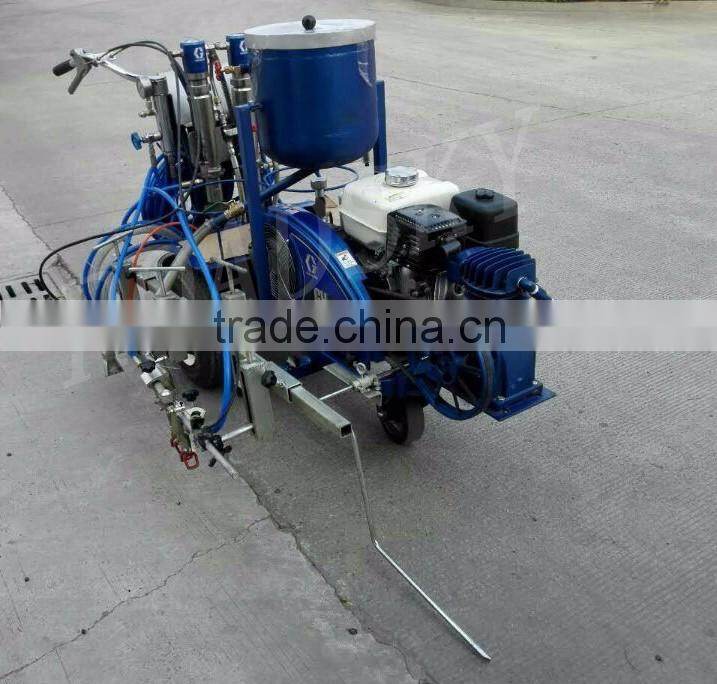

Hand Push Cold Airless Spraying Two Component
Road Marking Machine
This machine is equipped with high pressure diaphragm pump as its spray pump. The air pump and two high pressure diaphragm pumps are
driven by gasoline engine through belt driving.
Compared with high pressure plunger pump, the high pressure diaphragm pump has advantages of simple structure, convenient maintenance and high pumping frequency, which make the whole machine having the same characters.
1.RS12 Two-component Spraying Road Marking Machine
(Internal Mixing)
Model |
RS12 (internal mixing) |
Marking Width |
50-500 mm |
Working Pressure |
10~15 Mpa |
Max. Flow Rate |
7 L/Min. |
Weight |
170 kg |
Size |
1800×900×1300 mm |
2.RS13 Two-component Spraying Road Marking Machine
(External Mixing)
It can fully meet the normal road marking demand, as well as two-component marking and dual color line marking. It adopts the principle of double pump external mixing, which has the reasonable structure and simple operation.
Model |
RS13 (external mixing) |
Marking Width |
50-500 mm |
Working Pressure |
10~15 Mpa |
Max Flow Rate |
7 L/min. |
Weight |
190 kg |
Size |
1900×1000×1400 mm |

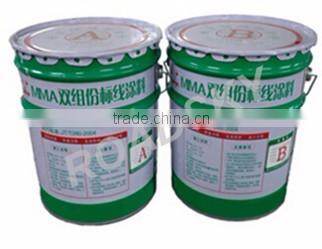

Two-component Spraying Road Marking Paint
Since application, the development speed of two-component spraying road marking paint has been extremely swift, and has expanded unceasingly, which is known as the third “road marking revolution” Its presence has solved the problems that the cold lines are weak in wear resistance, the thermoplastic lines are easy to be stained and of poor reflective effect.

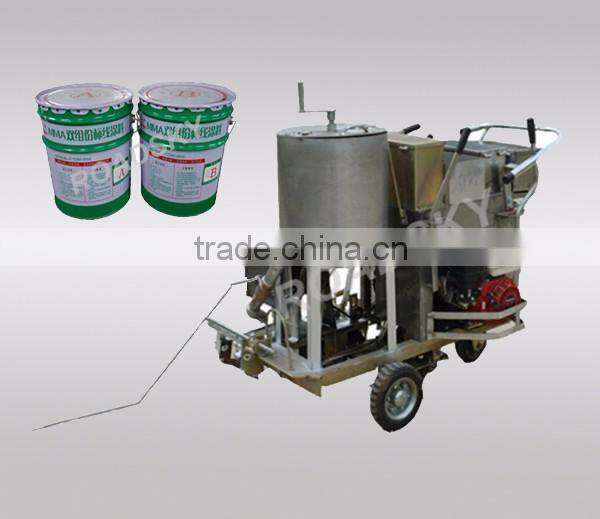

3.Two-component Screed Road Marking Machine
Two-component Screed Road Marking Machine is a new road marking machine with good
performance and long service life, equipped with two-component paint.
Model |
RS14 |
Engine |
5.5 HP Honda Engine |
Driving System |
Ultra-quiet hydraulic infinite driving system (HTS) |
Climbing Ability |
≤18° |
Paint Tank Capacity |
100 kg |
Glass Beads Bin |
15 kg |
Solidifying Agent Tank Capacity |
15 kg |
Marking Device |
Manual Screed Dies |
Standard Dies |
150/200 mm |
Optional Dies |
300/400/450 mm |
L*W*H |
1300*900*1200 mm |
Weight |
158 kg |
Advantage
Two-component Screed Road Marking Paint is a large molecular polymer of network structure,
formed by low molecular acrylic polymer and evocating agent. The coating is full, hard, with good stain resistance, wear resistance and good reflective effect, etc. It is a new generation of road marking paint.

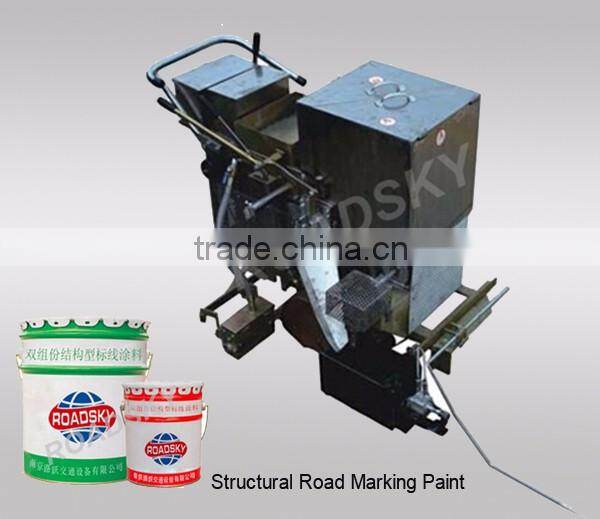

4.RS15 Two-component Structural Road Marking Machine
It is equipped with A and B paint tanks. A and B paints flow into the dies with mixing device synchronously by setting the proportion. It adopts centrifugal roller spraying principle, through high-speed rotation of mace and forms the centrifugal force, which will spray the mixed paint onto the road surface, then form the irregular granular and neat edge functional road lines.
Model Number |
RS15 |
Engine |
Honda 13 HP Engine |
Driving Device |
Infinitely variable speeds |
Speed of Spraying |
1-2 km/h |
Width of Road Lines |
150,200,300 mm |
Glass Beads Spraying |
Air Spraying |
Total Weight |
350 kg |
L*W*H |
1600*900*1300 mm |
Advantage
Two-component Structural Road Marking Paint has the characteristics of low molecular
quantity, good adhesion, high solid content, solvent free, it is environment-friendly product.
The A and B components are mixed and formed into irregular dot road lines with mesh pattern molecular structure. It is a new generation of functional road lines, has the advantages of vibration when passed over by vehicles.
