UG550 Switchgear
Introduction:

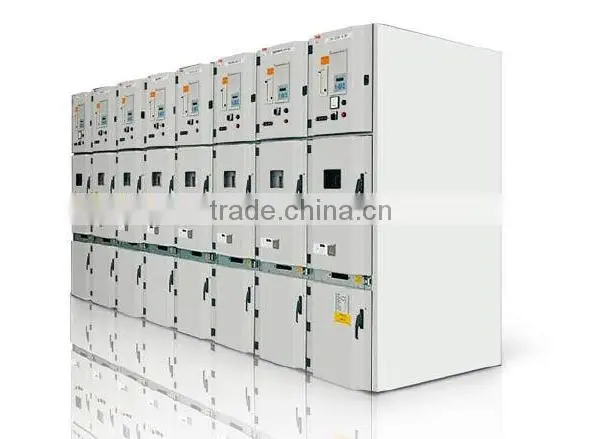

UG550 medium voltage, air-insulated, metal-clad withdrawable switchgear is available up to a maximum panel current of 1250A. It has gone all the test required by International Standards (IEC) and China standards(GB)small but compact, incentive to the environment, fail-safe interlocking system.
Technical Features:
Compact design with 550mm in width.
Supplied with the requirements of environment protection.
Fail-safe interlock device.
Comprehensive design concept can optimize the electric field.
Design to protect internal arc.
Technical Parameters:
Name |
Units |
Data |
Rated voltage |
kV |
12/17.5 |
Rated current |
A |
630/1250/2000/2500/3150/4000 |
Rated frequency |
Hz |
50 |
Rated short circuit breaking current |
kA |
25/31.5/40 |
Rated short circuit closing current |
kA |
63/80/100 |
1 minute power frequency withstand voltage |
kV |
42 |
Impulse withstand voltage |
kV |
75 |
