1.Description
Blokset switchgear is authorized to be manufactured by our factory. Blokset is low voltage switchgear and has reached international advanced level. It is conformity with the standard of GB/IEC.Blockset is present for medium and large industrial sites: mining, manufacturing industry, large commercial building areas and infrastructures where the rated voltage is up to 690V.
2.Features
1. Modular design, Interchangeable functional units.
2. Simplified maintenance and installation, possibility of upgrading.
3. Incorporated in all environments, high safety and reliability.
4. Type-tested assemblies of switchgear.
5. Unique design of vertical busbar.
Name |
Units |
Data |
Rated voltage |
V |
400/690 |
Rated insulation voltage |
V |
1000 |
Rated frequency |
Hz |
50 |
Horizontal busbar rated current |
A |
6300 |
Verticalbusbar rated current |
A |
4000/2100/1500 |
Horizontal busbar rated short-time current |
kA/s |
100 |
Horizontal busbar peak withstand current |
kA |
220 |
Vertical busbar rated short-time current |
kA/s |
85 |
Vertical busbar peak withstand current |
kA |
187 |
Rated impulse voltage |
kV |
12 |
Overvoltage category |
|
IV |
Degree of pollution |
|
3 |
Degree of protection |
|
IP31/42/54 |
Height |
mm |
2200 |
Width |
mm |
700/900/1100 |
Depth |
mm |
600/1000 |
4.Machine Parts Pictures

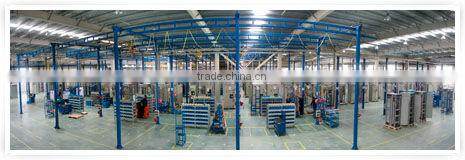

Electrical distribution assembly line

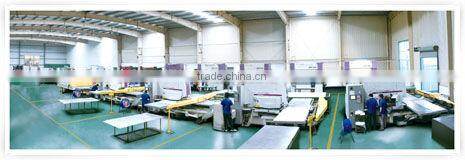

Shearing and bending production line
Double Component Dosing and CNC Machining Center
Mixing System
MURATEC Numerically Controlled MURATEC MOTORUM Numerically
Bending Machine Controlled Punching Machine
5. Our advantage
Quality Assurance
--From the very beginning, MEC ensures quality in every step to achieve the best quality.
Experience Sharing
--With more than 30 years’ experience in power industry, MEC brings you an optimized solution.
Global Service
--Wherever you are, MEC global network will support and provide you with value.
Quick Response
--In response to your needs without delay, MEC knows the value of your time.
6.Qulity management Objectives
7. Long-term custormers
8.Qulifications
