Lathe Machine

Name: Lathe Machine
Brand: Longem
SKU: 100684877
Availability: InStock

US$ 6,000 - 9,500 MOQ: 2 Sets

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Liaoning Mec Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Place of Origin Liaoning, China

Brand Name Longem

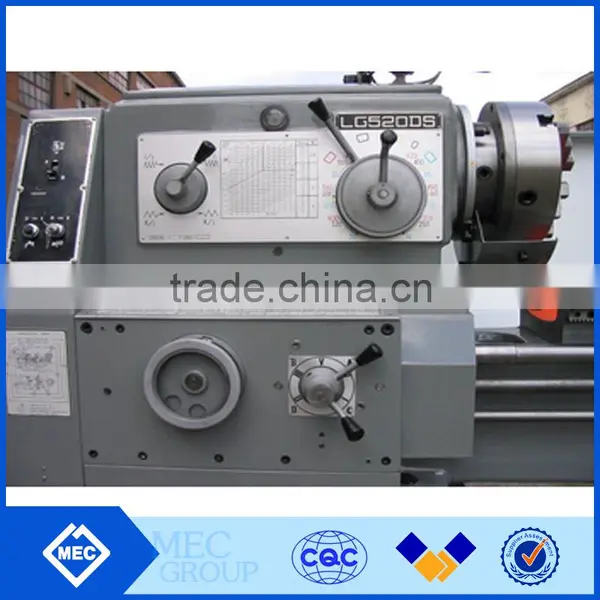

Model Number LG520DS, LG610DS

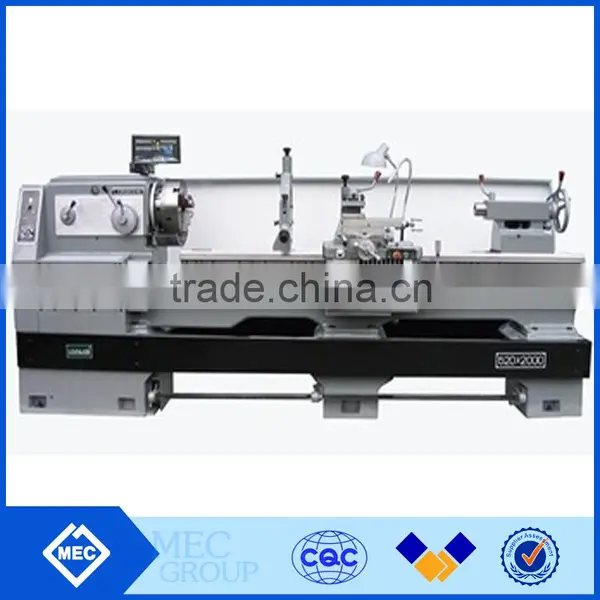

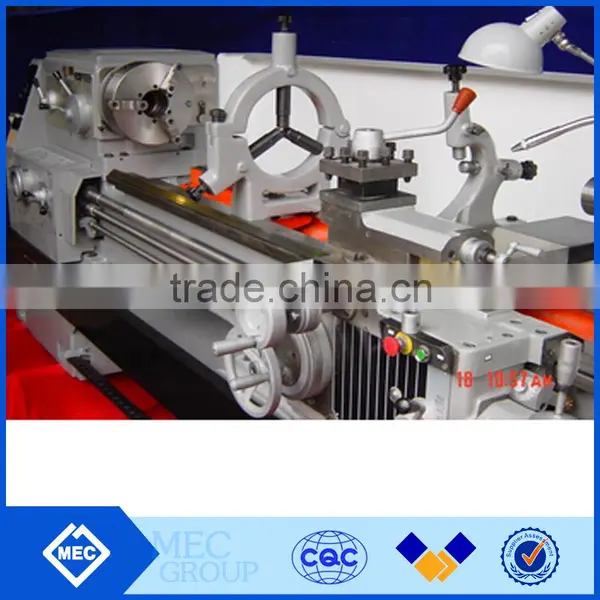

Lathe (Engine Lathe, Lathe Machine)

Features:

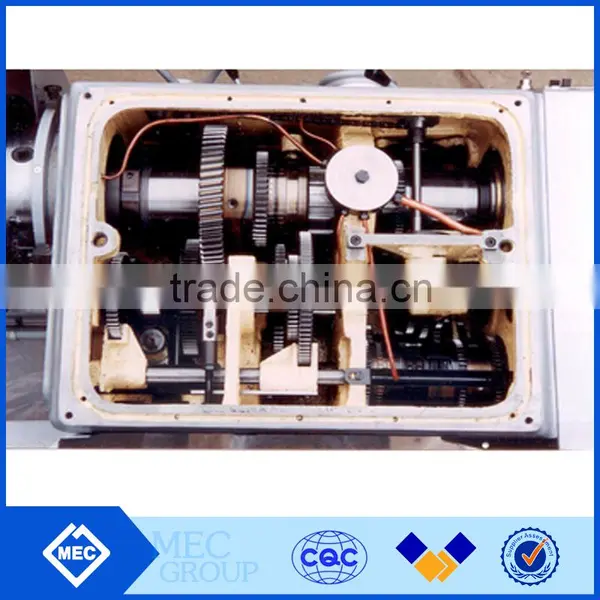

1) Oversized precision spindle with 80mm big thru hole

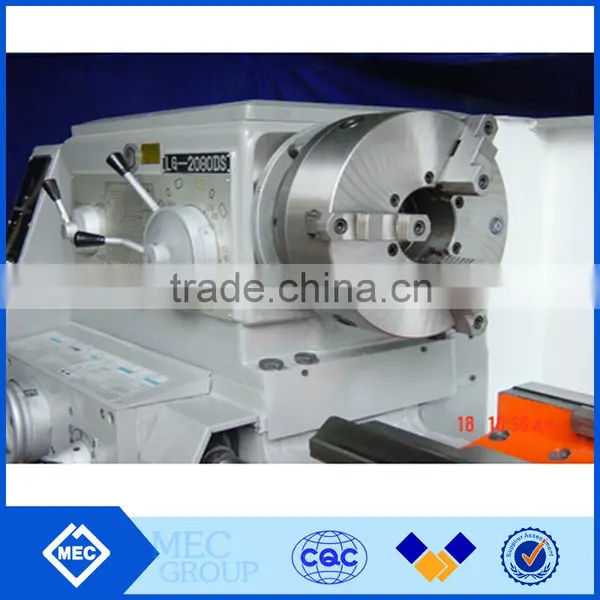

2) D1-8 cam lock spindle nose for mounting large-size chuck

3) Spindle supported at 3-point by large diameter precision bearings

4) Chrome alloy spindle hardened and precision ground

5) 400mm wide bed made of fine grain high tensile cast iron

6) Bedways induction hardened and precision ground

7) All gears and shafts hardened and precision ground

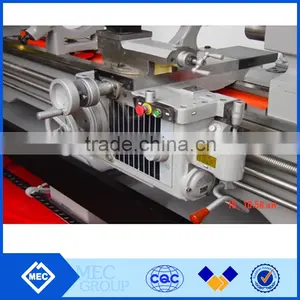

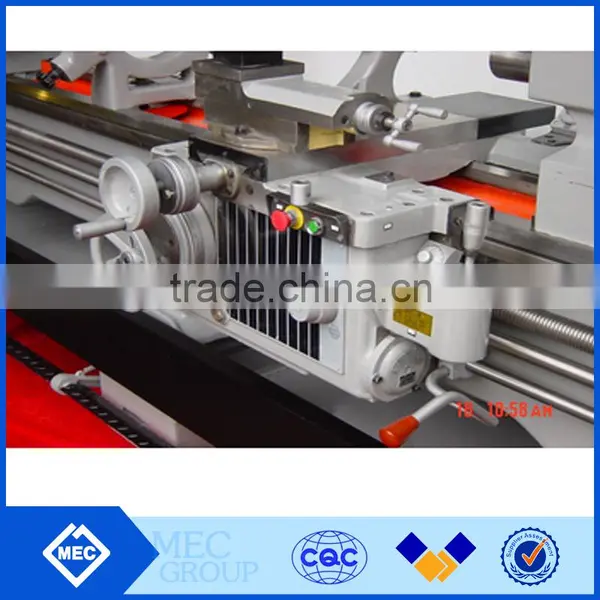

8) 4-way rapid traverse to carriage and cross slide

9) Automatic lubrication in headstock and feed box

10) Multi-disc clutch for spindle forward and reverse rotation

Specifications:

MODEL		LG430DS	LG520DS	LG610DS
Capacity	Swing over bed	432mm	520mm	610mm
	Swing over cross slide	210mm	300mm	370mm
	Swing in gap (for gap bed lathe only)	630mm	720mm	830mm
	Length of gap (for gap bed lathe only)	210mm
	Width of bed	400mm
	Distance between centers	1000mm/1500mm/2000mm
Spindle	Spindle bore	Ø80mm
	Spindle nose	D1-8 camlock
	Spindle speed range	10-1400rpm
	Spindle speed number	24 steps
	Taper of spindle hole	Morse No. 6
Threads & feeds	Longitudinal feeds	0.028-6.33mm/r, 64 kinds
	Cross feeds	0.014-3.16mm/r, 64 kinds
	Metric threads	1-192mm, 44 kinds
	Inch threads	24-1/2 tpi, 21 kinds
	Module threads	0.25-48mm, 39 kinds
	Diametral pitch threads	96-1DP, 37 kinds
Carriage	Top slide travel	140mm
	Cross slide travel	320mm		420mm
	Longitudinal rapid traverse speed	4m/min
	Cross rapid traverse speed	2m/min
Tailstock	Quill diameter	75mm
	Quill travel	150mm
	Quill taper	Morse No. 5
Motor	Main motor	7.5KW
	Coolant pump motor	90W
	Rapid traverse motor	250W
