Help CenterComputerized Panel Cutter Machine HY-QG-6
Related Products
-
Computerized Lock Stitch Multi-Needle Quilting Machine HY-94-3ANegotiableMOQ: 1 Unit -
New Fast Speed Computerized Chain Multi-needle Quilting Machine HY-W-SJNegotiableMOQ: 1 Unit
-
Computerized Lock Stitch Multi-Needle Quilting Machine HY-128-3ANegotiableMOQ: 1 Unit
-
Computerized Chain Stitch Multi-functional Quilting MachineNegotiableMOQ: 1 Set
-
3 Computerized Lock Stitch Multi-needle Quilting MachineNegotiableMOQ: 1 Set
Purpose:It is used to crosscut, slitting and edge trimming the quilted fabric, and usually works in tandem with the quilting machine and rolling device ,but it can also run alone .
Detail Information:

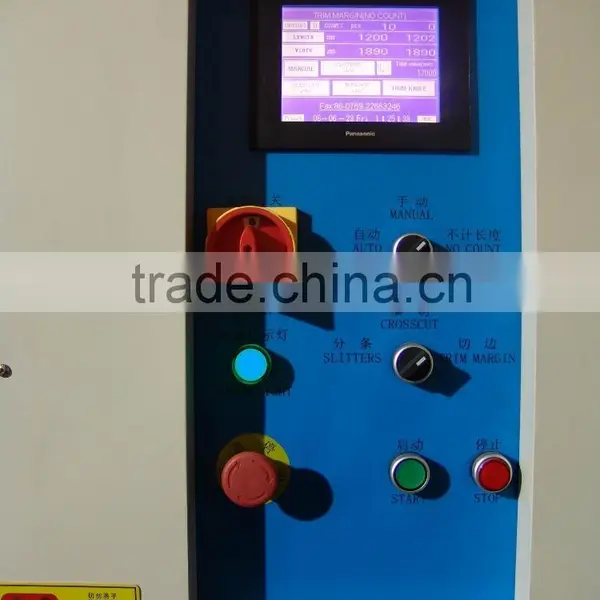

· 5.6” Panasonic touch screen, large screen for ease of operation
· CE certificate for all the electrical parts used (guarantees the long life of the machine)

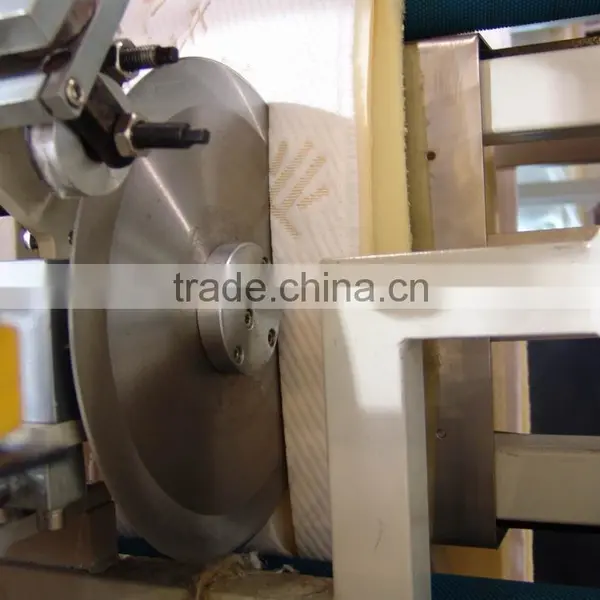

· Hidden slitting blades are more convenient and safer
· Electric controls for length and width of cross cut which make operations more human
· Feed-in top with article points for pressure roller . The pressure will be even ,and feeding will be leveling off. The slitting cut will be more smooth ,especially for the edge trimming of thinner material
· Y-Aix with encoder for counting length. It can cut materials length of(30-∞)
· Use the conveyor belt mechanical discharge .It will be convenient to fold material and save artificial·
· Fabricated steel frame machine, advanced design for precise cross and length cutting with high efficiency
Edge trim |
HY-QG-6 | HY-QG-6L | |
|---|---|---|---|
The Max.X dimension: |
2450 |
3250 |
|
The Min.X dimension: |
960 |
1325 |
|
Slitters |
The Max.X dimension: |
2600 |
3200 |
The Min.X dimension: |
40 |
40 |
|
Edge trim |
The Max.Y dimension: |
2250 |
2250 |
The Mix.Y dimension: |
300 |
300 |
|
|
Power supply: |
380V/50HZ 220V/60HZ |
380V/50HZ 220V/60HZ |
Machine dimension(L×W×H): |
3940×1100×1580 |
4700×1100×1580 |
|
Weight: |
1300kg |
1600kg |
|
Operating air preasure : |
0.4~0.8Mpa |
0.4~0.8Mpa |
|
Thickness: |
3~80 |
3~80 |
|
Speed: |
10(M/Min) |
10(M/Min) |
|
Power: |
2.6KW |
2.6KW |
